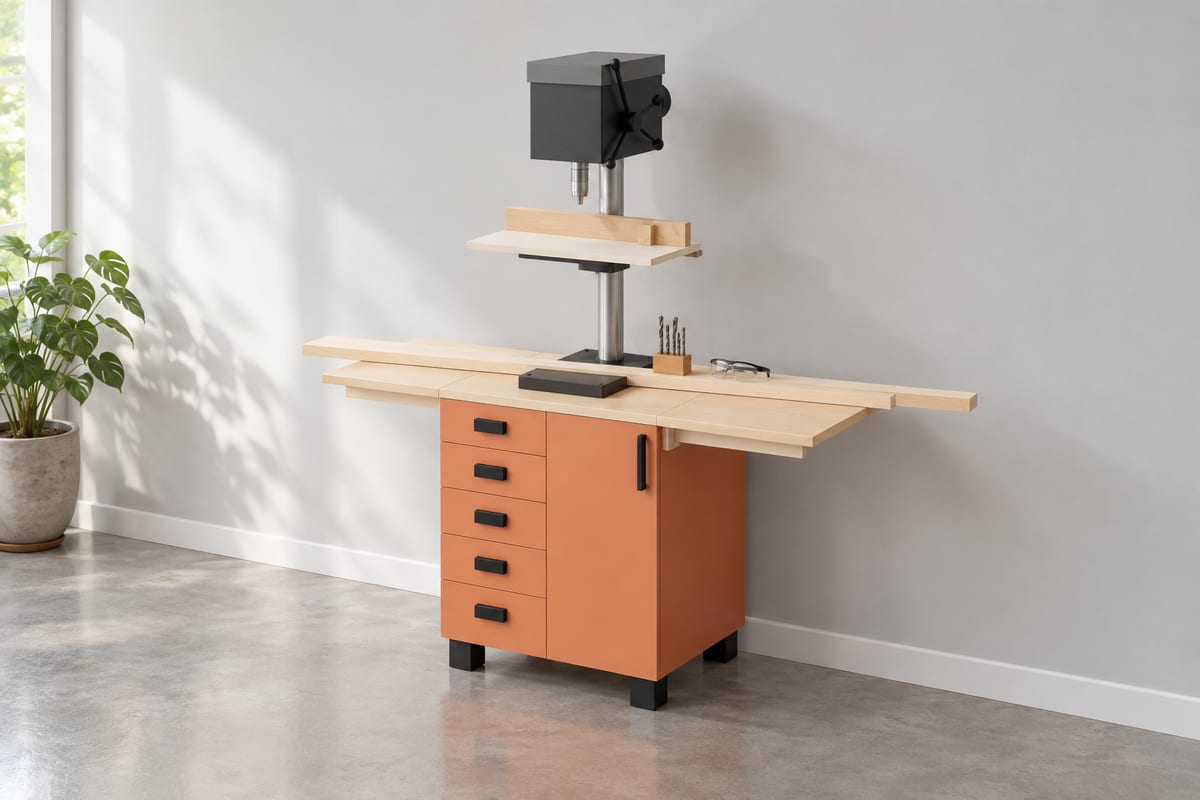

Drill press station with swing-out wings

A safety-orange rolling stand that puts a benchtop drill press at a comfortable height over five bit drawers and a cupboard. Maple wings fold down flat against its sides and come up on swing-out arms, turning a 700mm stand into a 1.5m surface for long rails and panels.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1540 x 692 x 1822 mm60 5/8" x 27 1/4" x 71 3/4"

Parts to cut

53

Build steps

65

Boards

4

Sheets

4

Solid wood

12.2 bd ft

Weight

424.2 kg935 lb

Materials

• Birch plywood
• Hard maple

Finish

• Paint - safety orange, satin
• Finishing oil - Hardwax oil, satin
• Paint - pale grey, satin

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Table saw
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
• 2 x Piano hinge, 550mm, steel
• 1 x Your benchtop drill press, 16-speed (not part of this build)
• 10 x Side-mount drawer slide, 500mm
• 5 x Cup pull, 96mm centres, matt black
• 2 x Concealed cabinet hinge, full overlay
• 1 x Bar pull, 128mm centres, matt black

Cut list

The first 3 of 38 lines, in millimetres (inches below), finished size including joint allowances.

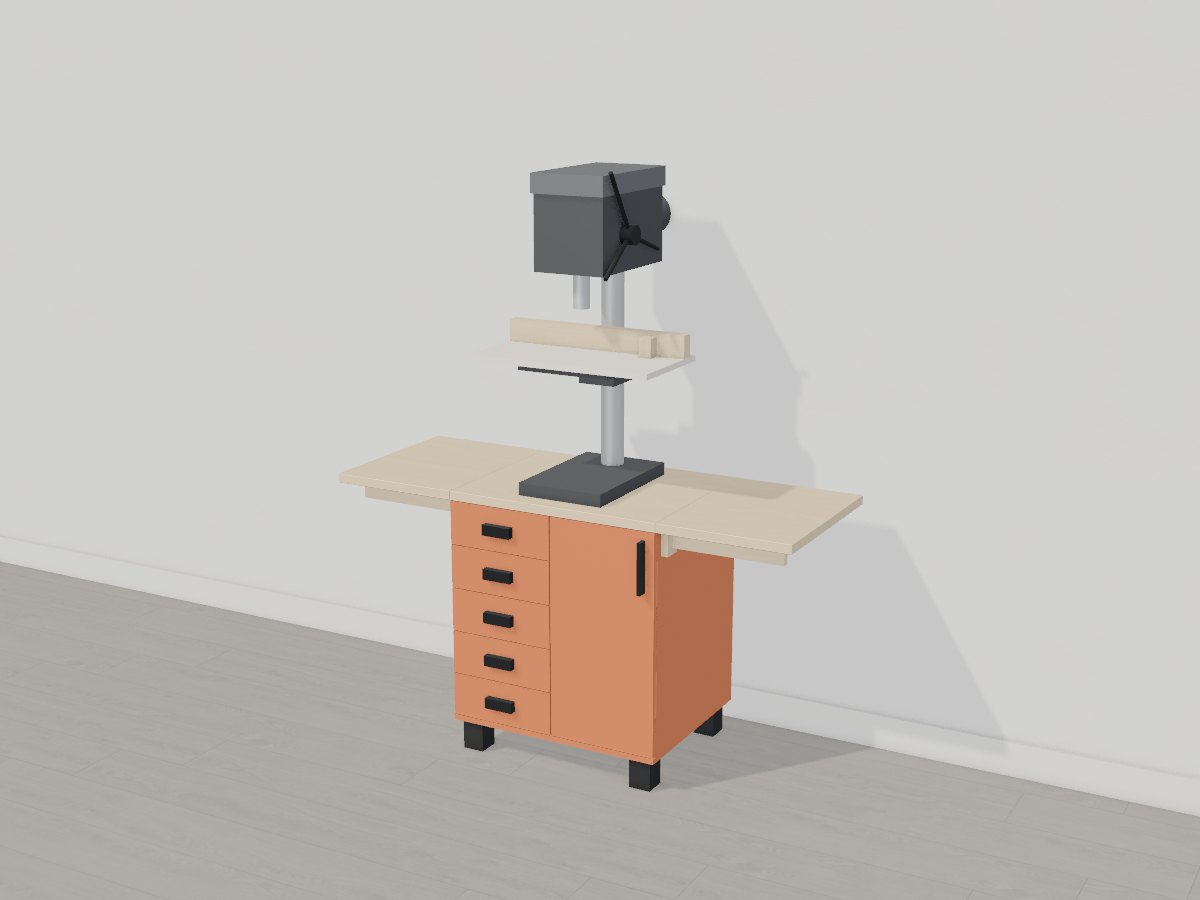

The 3D model

More workshop & garage designs

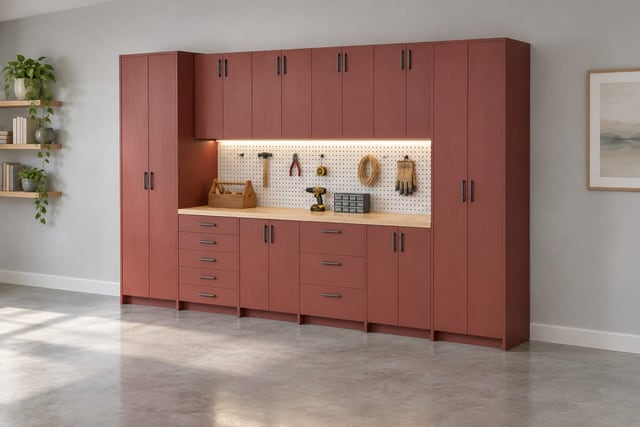

• Oxblood garage cabinets A 3.6m wall of garage cabinets in deep oxblood with shaker doors and satin nickel bar pulls: two tall cupboards frame a run of drawers and cupboards under a 40mm oiled maple counter, with a cream pegboard backsplash and lit wall cupboards above.
