Oxblood garage cabinets

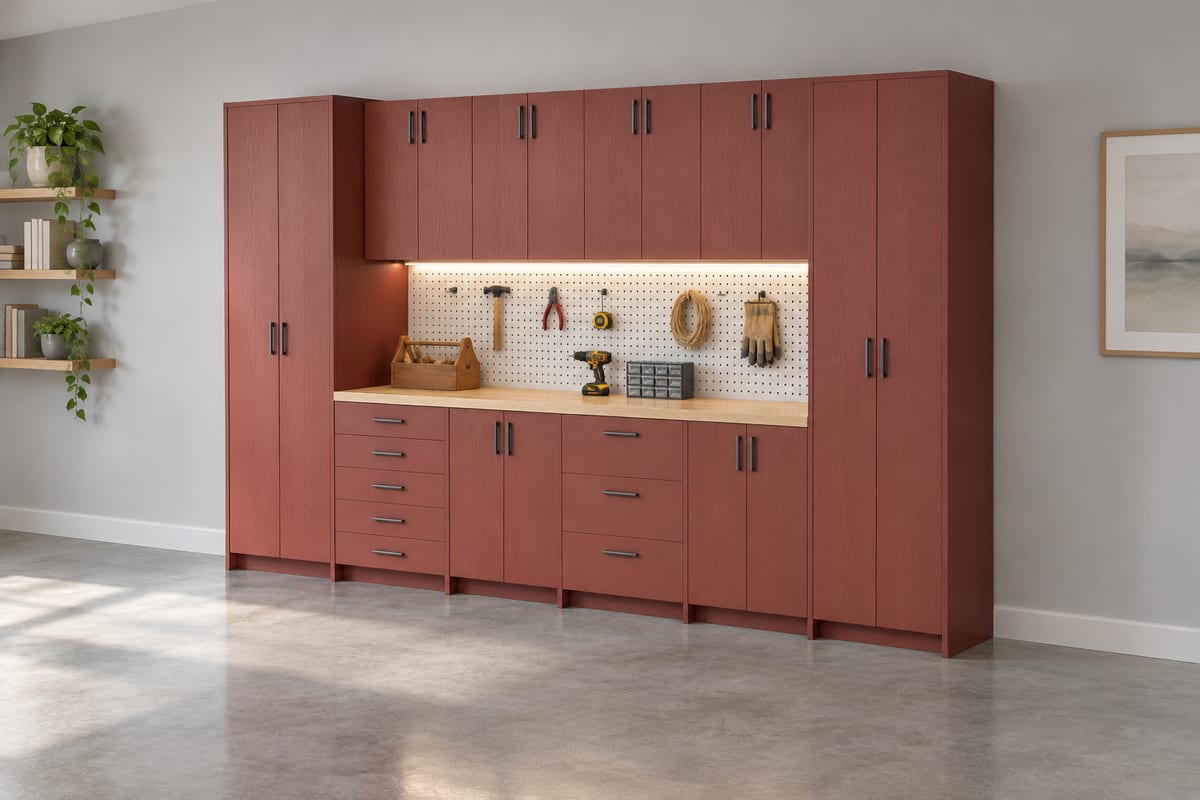

A 3.6m wall of garage cabinets in deep oxblood with shaker doors and satin nickel bar pulls: two tall cupboards frame a run of drawers and cupboards under a 40mm oiled maple counter, with a cream pegboard backsplash and lit wall cupboards above.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3600 x 662 x 2280 mm141 3/4" x 26 1/16" x 89 3/4"

Parts to cut

200

Build steps

107

Boards

3

Sheets

18

Solid wood

25.6 bd ft

Weight

480 kg1058 lb

Materials

• Birch plywood
• Hard maple
• MDF

Finish

• Finishing oil - Hardwax oil, satin
• Paint - warm cream, satin
• Paint - oxblood, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 8 x Pegboard hook assortment, 6mm, black
• 1 x Under-cabinet LED light bar, 4000K, linkable, plug-in
• 1 x Plug-in lead with inline switch, for the light bars
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 40 x Concealed cabinet hinge, full overlay
• 24 x Bar pull, 128mm centres, satin nickel
• 16 x Side-mount drawer slide, 550mm

Cut list

The first 3 of 152 lines, in millimetres (inches below), finished size including joint allowances.

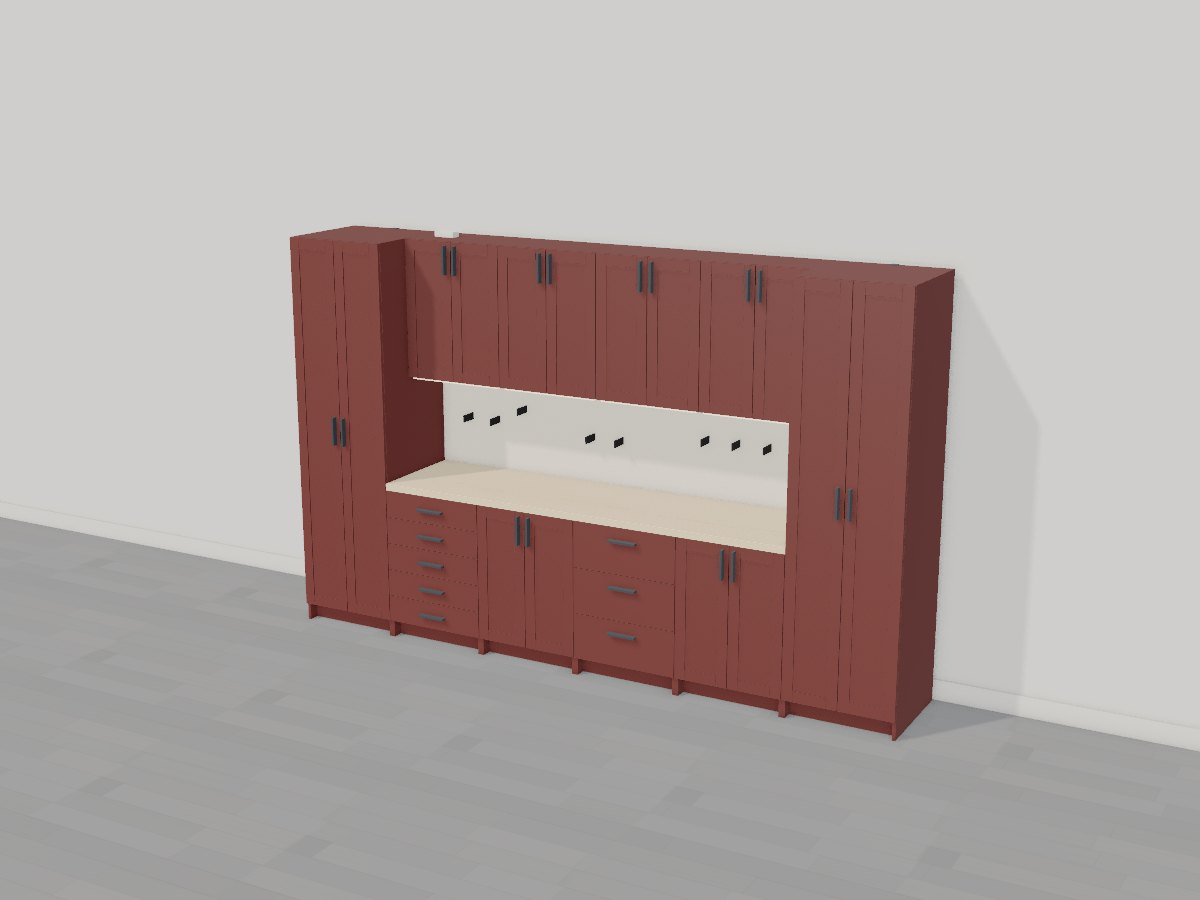

The 3D model
