Rolling lumber and offcut cart
All the timber in a small shop on one 1.5 x 0.76m footprint: full sheets stand on their long edge in two slots behind the spine, long boards rest on twelve steel-cored maple arms in front, and the offcuts that usually pile up in corners drop into four bins below. It rolls out of the way when the car needs the space.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2440 x 760 x 1650 mm96 1/16" x 29 15/16" x 64 15/16"
- Parts to cut
- 28
- Build steps
- 39
- Boards
- 3
- Sheets
- 5
- Solid wood
- 7.5 bd ft
- Weight
- 230.8 kg509 lb
Materials
- Birch plywood
- Hard maple
Finish
- Paint - charcoal, satin
- Clear finish - Water-based lacquer, matt, matte
- Finishing oil - Hardwax oil, satin
- Paint - raw MDF, matte
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 4 x Heavy locking swivel caster, 100mm, 100mm high
- 12 x Steel cantilever arm bracket, 300mm, 60kg
- 1 x Steel push handle, 28mm tube, 180mm
- 1 x Your sheet goods and boards (not part of this build)
Cut list
The first 3 of 15 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Base | 1500 x 760 x 2459 1/16" x 29 15/16" x 15/16" | Birch plywood |
| B | 1 | Spine, lower sheet | 1464 x 1200 x 1857 5/8" x 47 1/4" x 11/16" | Birch plywood |
| C | 1 | Spine, upper sheet | 1464 x 326 x 1857 5/8" x 12 13/16" x 11/16" | Birch plywood |
| +25 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 28 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 39 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

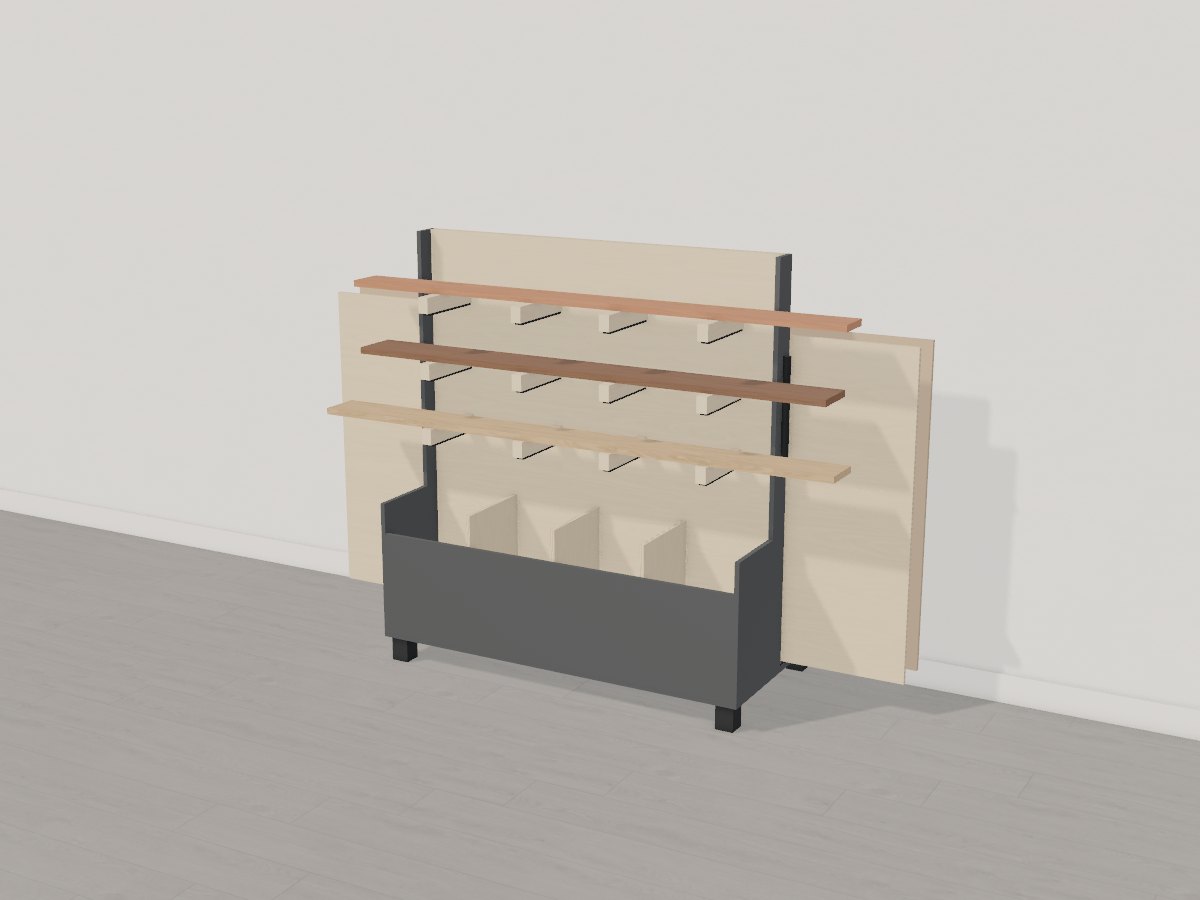

The 3D model
