Cherry sharpening station

Everything for sharp tools in a 900mm cherry cabinet: a lift-out stone pond sunk in the top with a maple bridge for three waterstones, and a slow-speed grinder that lives in a slot under the top and runs out on full-extension slides when it is needed, then disappears so the mess stays in one place.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

900 x 918 x 1300 mm35 7/16" x 36 1/8" x 51 3/16"

Parts to cut

55

Build steps

77

Boards

13

Sheets

3

Solid wood

42.6 bd ft

Weight

133.1 kg293 lb

Materials

• Cherry
• Birch plywood
• Hard maple

Finish

• Finishing oil - Hardwax oil, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Chisel
• Sandpaper
• Brush

Hardware and fittings

• 1 x Rigid polypropylene tray, 390 x 300 x 60mm
• 1 x Your waterstones (not part of this build)
• 1 x Full-extension ball-bearing slide, 450mm, 45kg, pair
• 1 x Your slow-speed wet/dry bench grinder (not part of this build)
• 1 x Vegetable-tanned strop leather, 300 x 60mm
• 8 x Side-mount drawer slide, 500mm
• 4 x Edge pull, 150mm, brushed brass
• 2 x Concealed cabinet hinge, full overlay
• 1 x Round knob, 30mm, brushed brass

Cut list

The first 3 of 42 lines, in millimetres (inches below), finished size including joint allowances.

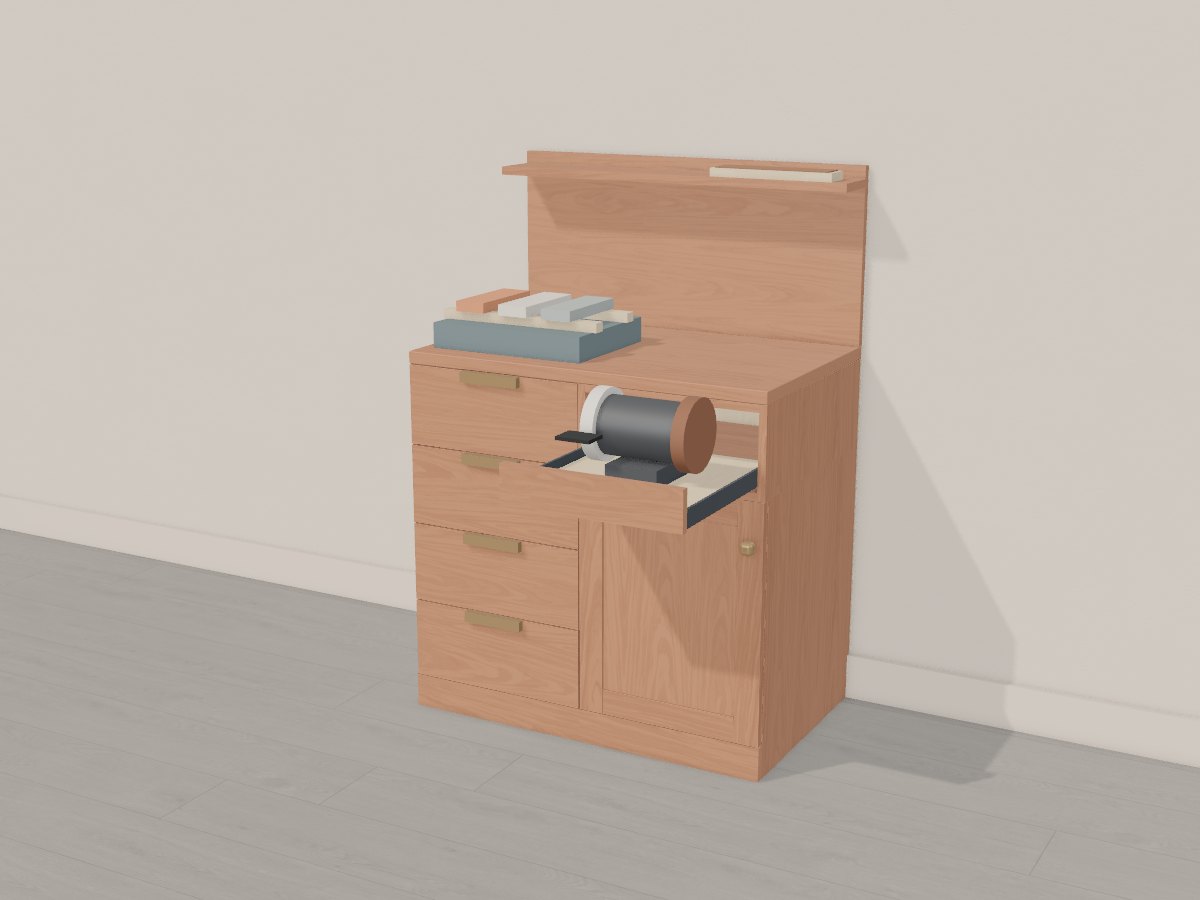

The 3D model

More workshop & garage designs

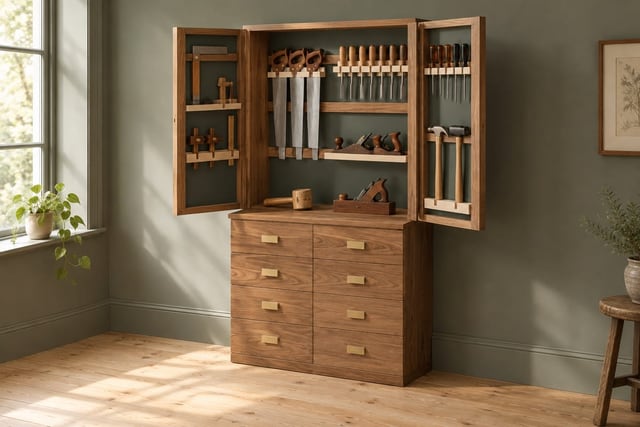

• Walnut hand-tool armoire A walnut tool armoire for a hand-tool shop: eight graduated drawers for planes and boxes below, and above, a shallow case whose deep doors are boxes themselves, lined with French cleats so squares, gauges, drivers and hammers hang on the doors and saws, planes and chisels behind them. Every holder lifts off and moves; the whole kit stands in a metre of wall.

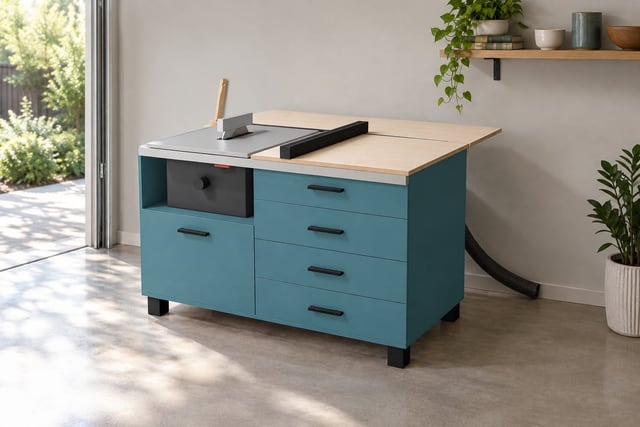

• Mobile table saw base with outfeed A petrol-blue rolling base that sinks a jobsite saw into a well so its table is dead flush with an oak-edged wing, with fence rails run across the wing for 900mm rips. A leaf folds up behind on locking brackets as outfeed and drops flat when it parks; the dust bin drawer sits right under the blade and four drawers hold blades and jigs.

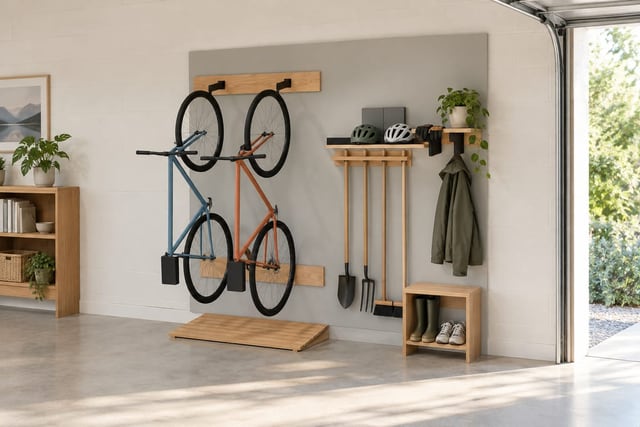

• Garage bike and garden wall Two bikes, the long-handled garden tools, boots and helmets off the garage floor and onto 2.4m of dove-grey wall: bikes hang by the front wheel with their rear tyres resting on an oak bumper strip so the paint stays clean, spades and rakes stand head-up through a slotted oak rail, and a slatted boot bench sits under a helmet shelf.
