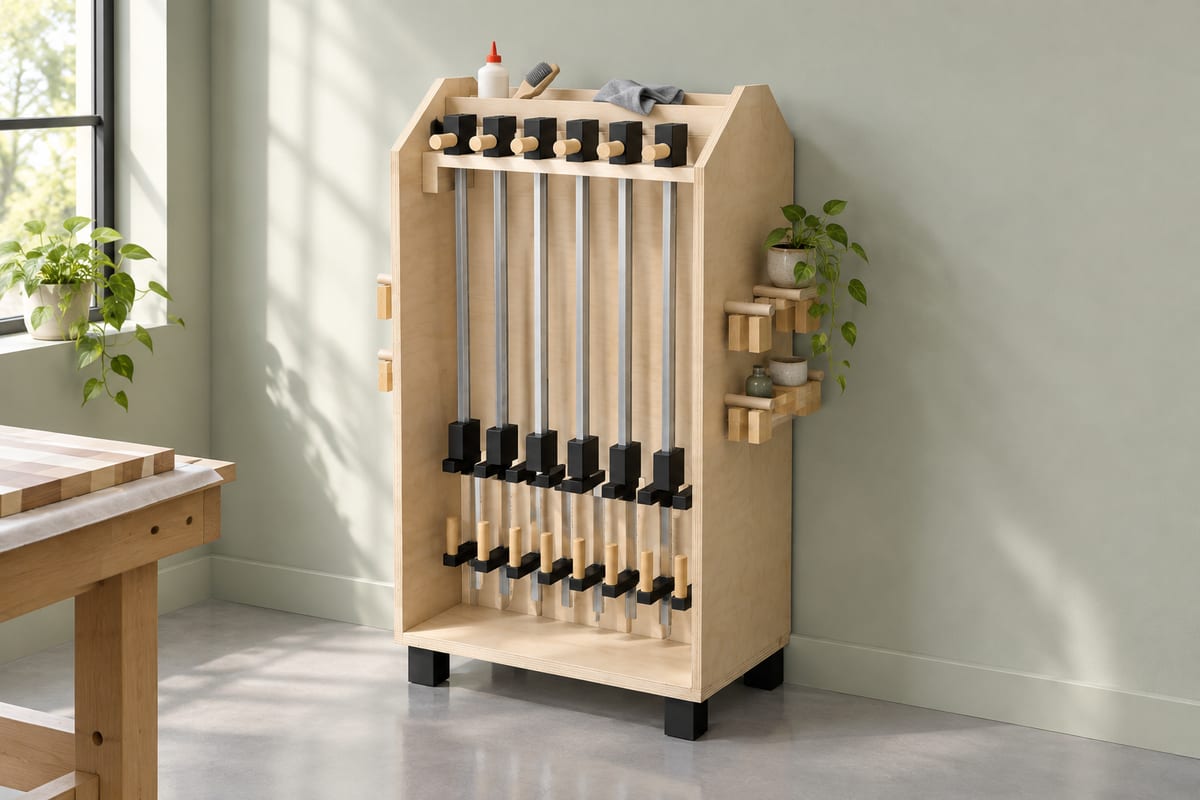

Rolling clamp rack

Forty clamps on 0.4m² of floor, rolled to wherever the glue-up is: parallel clamps hang through a slotted maple rail, F-clamps from a lower one, pipe clamps stand in a trough at the back and spring clamps ride on pegs at the ends, with a glue tray along the top. Birch ply and oiled maple, nothing to paint.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

980 x 520 x 1450 mm38 9/16" x 20 1/2" x 57 1/16"

Parts to cut

21

Build steps

35

Boards

4

Sheets

3

Solid wood

3.4 bd ft

Weight

112.4 kg248 lb

Materials

• Hard maple
• Birch plywood

Finish

• Clear finish - Water-based lacquer, matt, matte
• Finishing oil - Hardwax oil, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
• 1 x Parallel bar clamp, 800mm (yours, stored here)
• 1 x F-clamp, 300mm (yours, stored here)
• 1 x Spring clamp, 50mm (yours, stored here)
• 1 x Pipe clamp on 1200mm pipe (yours, stored here)

Cut list

The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.

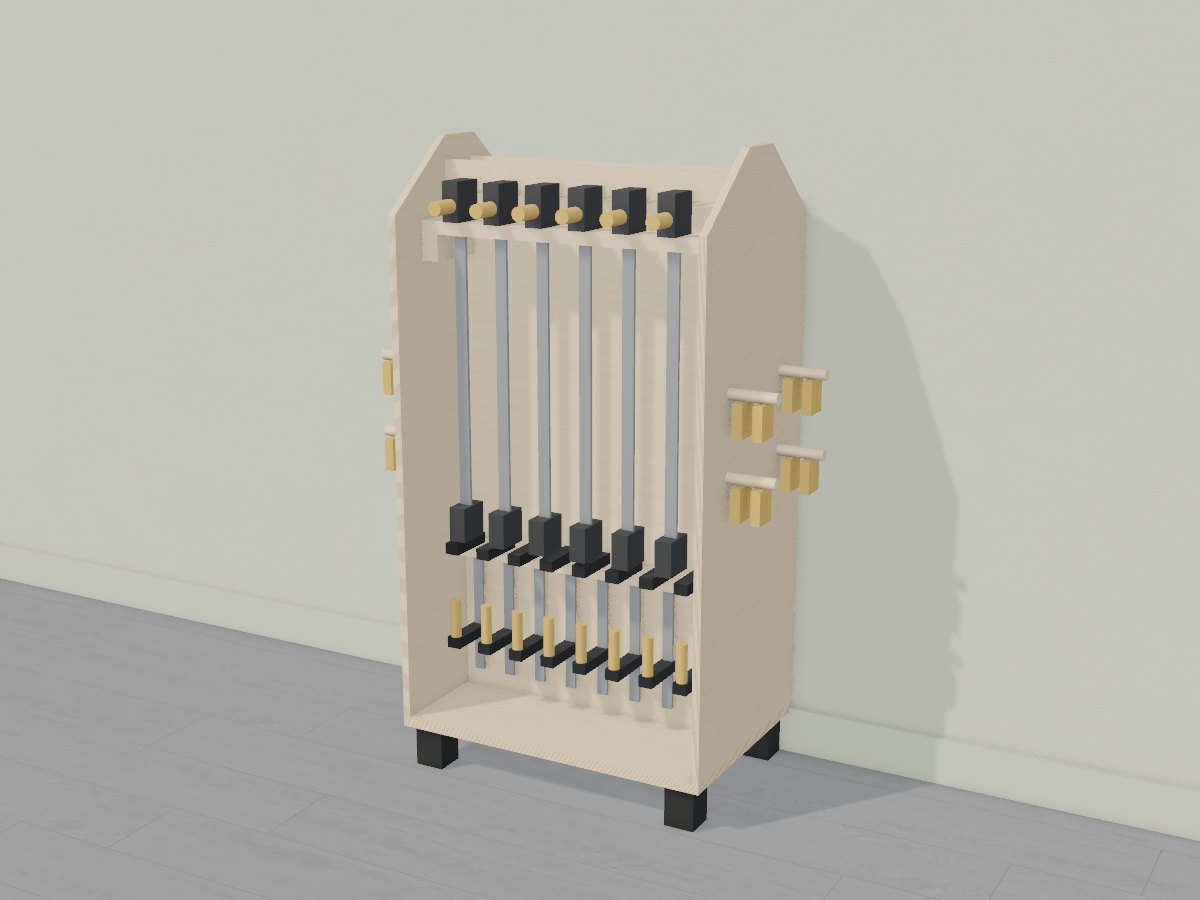

The 3D model
