Reeded walnut media console

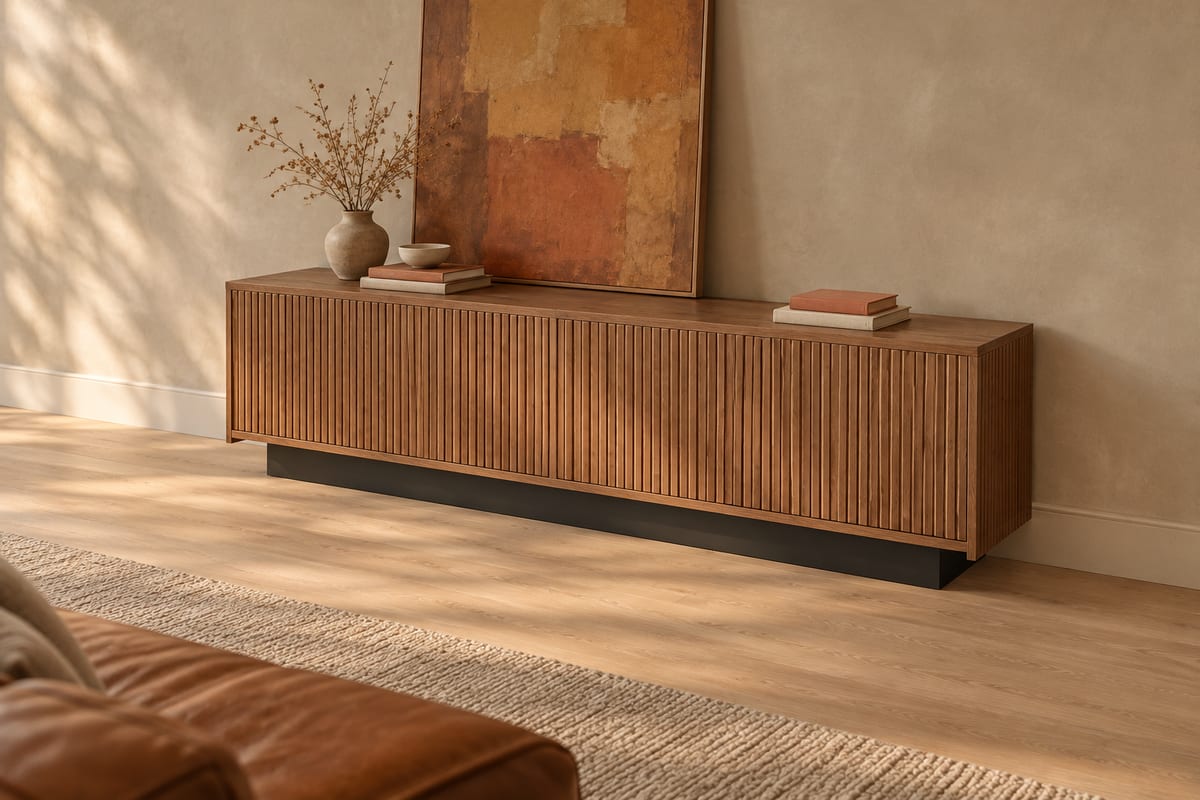

A long, low black walnut media console whose four inset doors are covered in fine half-round reeds, sitting on a deeply recessed soft-black plinth so it seems to hover an inch above the floor. Push-to-open hinges keep the reeding unbroken from end to end.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2100 x 440 x 570 mm82 11/16" x 17 5/16" x 22 7/16"
- Parts to cut
- 111
- Build steps
- 29
- Boards
- 18
- Sheets
- 2
- Solid wood
- 38.3 bd ft
- Weight
- 70.5 kg155 lb
Materials
- Black walnut
- Birch plywood
Finish
- Paint - soft black, matte
- Finishing oil - Hardwax oil, matte
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Sandpaper
- Brush
Hardware and fittings
- 8 x Concealed hinge, inset, with push-to-open
Cut list
The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Console - Back | 2056 x 328 x 680 15/16" x 12 15/16" x 1/4" | Birch plywood |
| B | 1 | Console - Hanging rail | 2056 x 100 x 1880 15/16" x 3 15/16" x 11/16" | Birch plywood |
| C | 1 | Console - French cleat, wall half | 1976 x 80 x 1877 13/16" x 3 1/8" x 11/16" | Birch plywood |
| +108 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 111 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 29 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

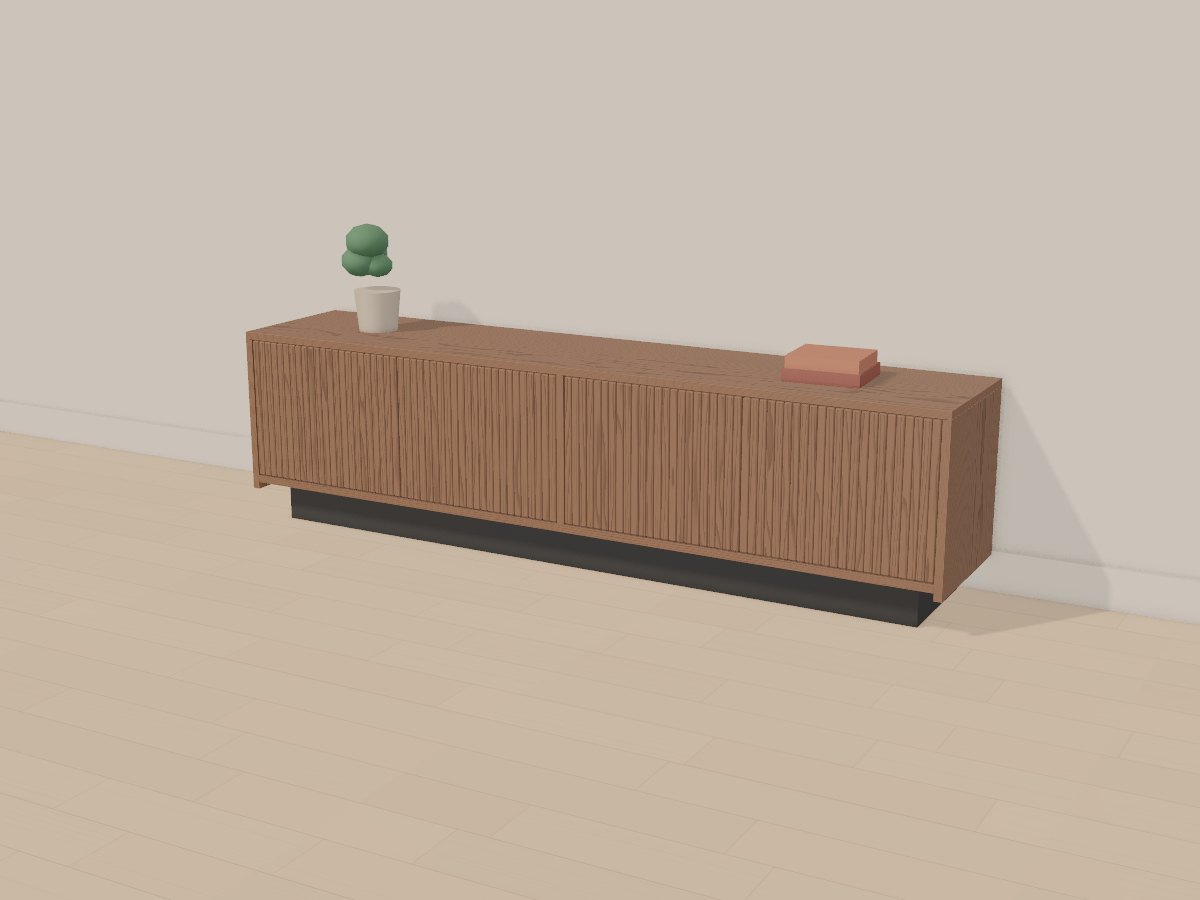

The 3D model
