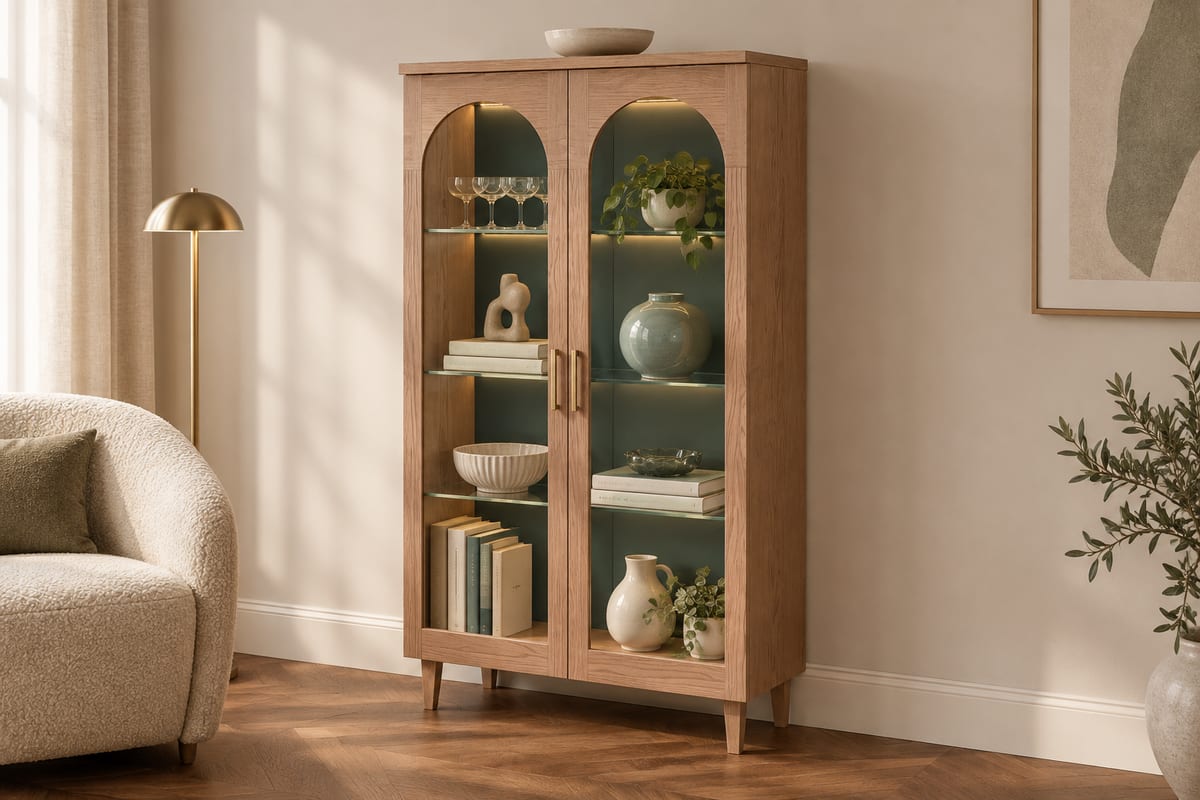

Arched cherry vitrine

A tall cherry display cabinet on slender tapered legs, its pair of glazed doors rising into soft arches, with glass shelves, a warm LED strip under the top and a back lined in deep teal so everything inside glows against it.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1000 x 448 x 1928 mm39 3/8" x 17 5/8" x 75 7/8"

Parts to cut

18

Build steps

33

Boards

9

Sheets

1

Solid wood

30.3 bd ft

Weight

79.5 kg175 lb

Materials

• Cherry
• Birch plywood

Finish

• Finishing oil - Danish oil, satin
• Paint - deep teal, matte

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Chisel
• Table saw
• Dowel jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 3 x Toughened glass shelf, 8mm, polished edges
• 1 x Plug-in LED strip kit, 12V, warm white 2700K
• 2 x Toughened glass, 4mm, arch-topped
• 6 x Concealed cabinet hinge, full overlay
• 2 x Brass bar pull, 160mm centres, brushed brass
• 2 x Anti-tip furniture wall bracket, steel, with stud screws

Cut list

The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.

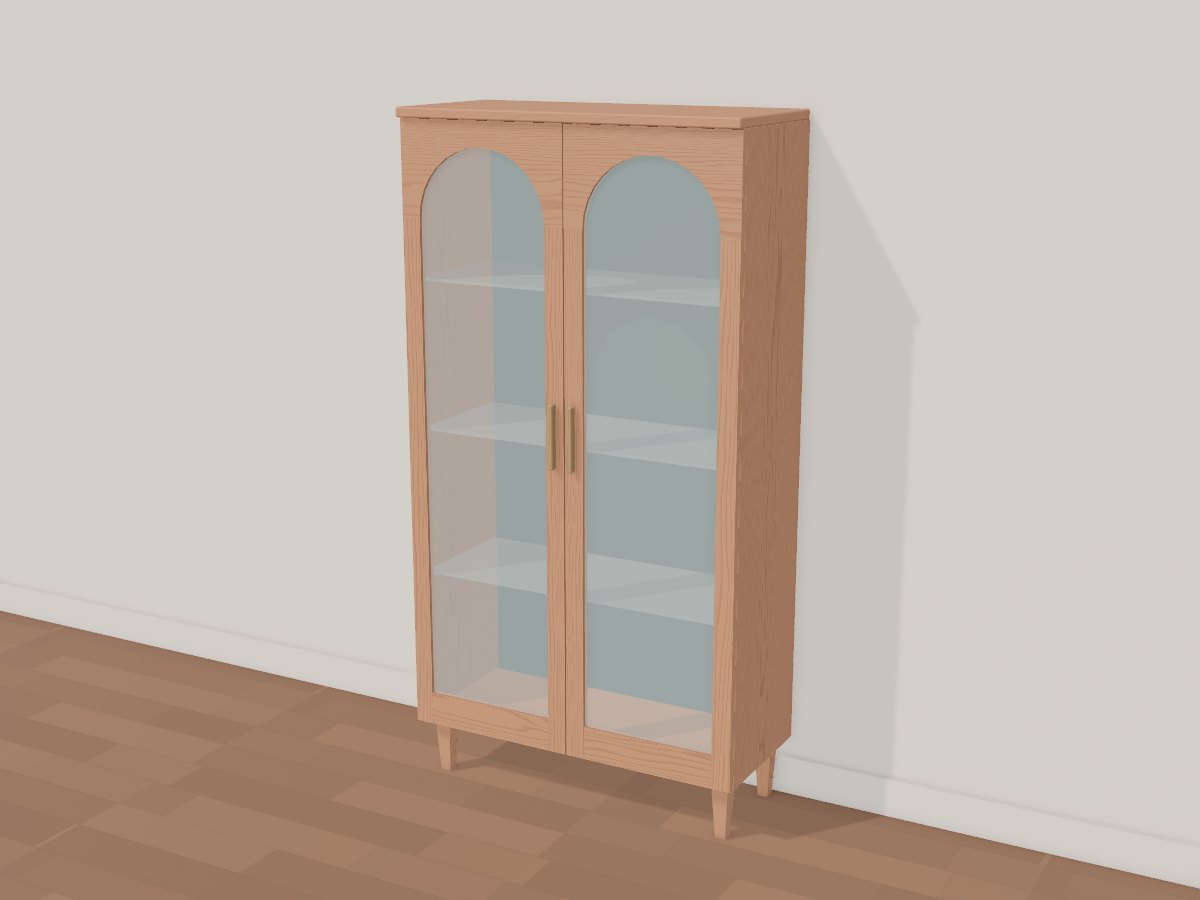

The 3D model
