Oak TV-lift console
A long white-oak media console with a 55-inch TV on a motorised lift in the middle. Lowered, the TV disappears and the lid closes flush, leaving a clean oak top. Cupboards with edge pulls at each end hold the speaker and the game consoles.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2600 x 496 x 1610 mm102 3/8" x 19 1/2" x 63 3/8"
- Parts to cut
- 22
- Build steps
- 33
- Boards
- 14
- Sheets
- 1
- Solid wood
- 69.5 bd ft
- Weight
- 387.1 kg853 lb
Materials
- White oak
- Birch plywood
Finish
- Finishing oil - Hardwax oil, matte
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 8 x Concealed cabinet hinge, full overlay
- 4 x Edge pull, 150mm, matt black
- 1 x Motorised TV lift for a 55-inch TV, 750mm travel
- 1 x Your TV, 55 inch (not part of this build)
Cut list
The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Left - Back | 860 x 550 x 633 7/8" x 21 5/8" x 1/4" | Birch plywood |
| B | 1 | Right - Back | 860 x 550 x 633 7/8" x 21 5/8" x 1/4" | Birch plywood |
| C | 1 | Lift - Bottom | 1476 x 480 x 1858 1/8" x 18 7/8" x 11/16" | White oak |
| +19 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 22 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 33 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

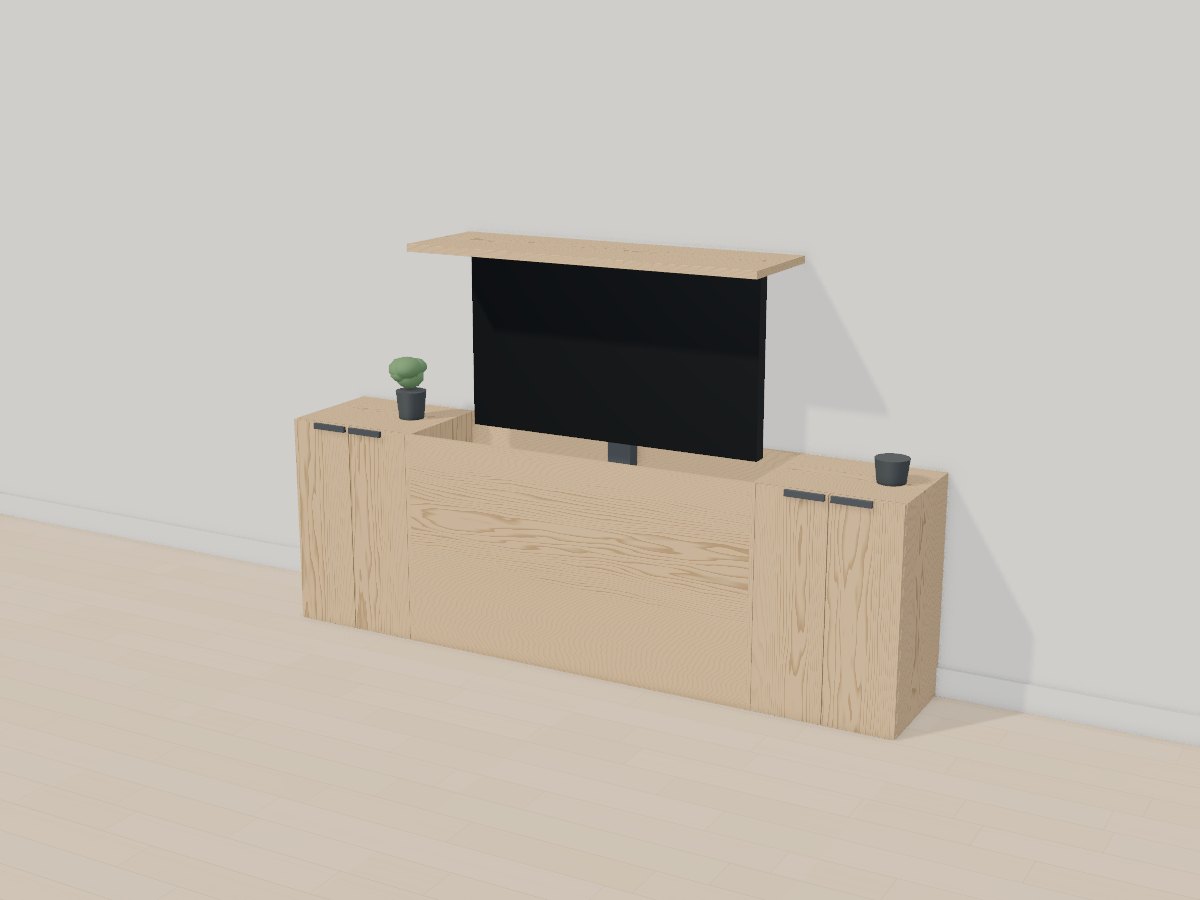

The 3D model
