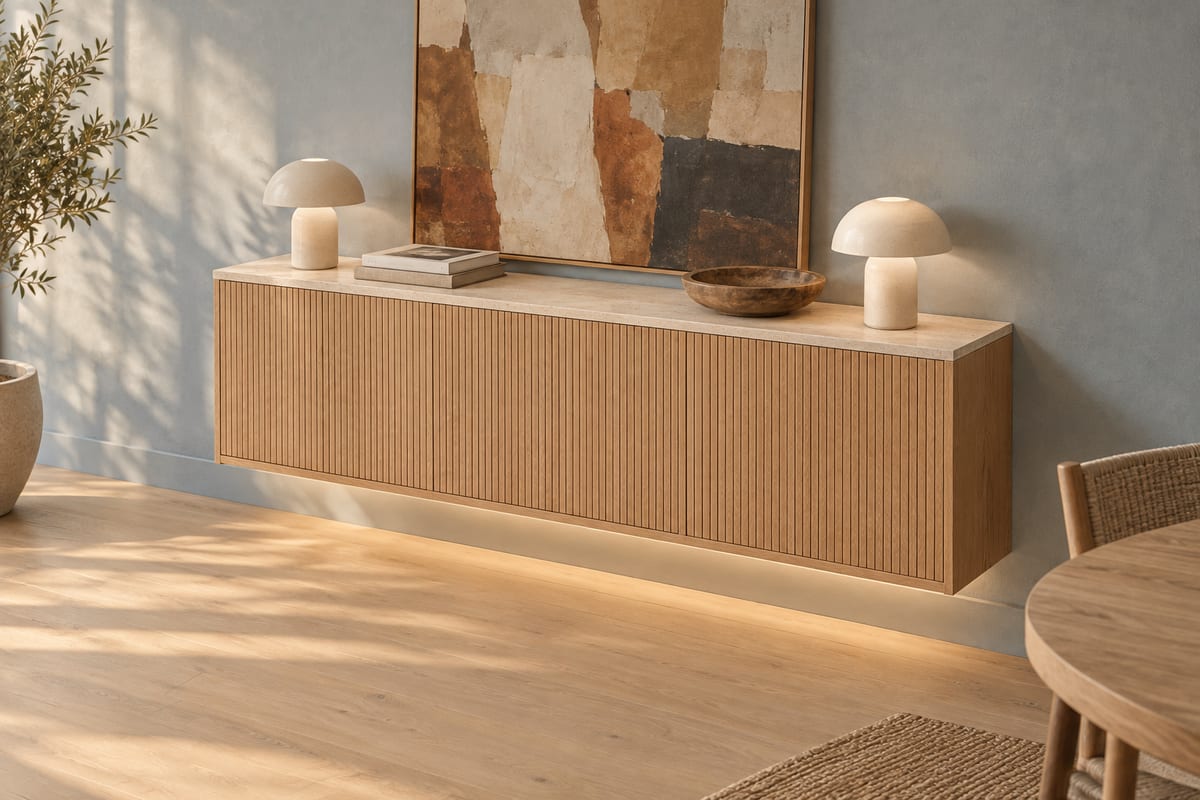

Reeded cherry sideboard
A long floating sideboard in oiled cherry with six reeded doors on push-to-open hinges, hung on a French cleat so the floor runs clean underneath and a warm LED glow washes the wall below, finished with a honed travertine top.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2100 x 460 x 580 mm82 11/16" x 18 1/8" x 22 13/16"
- Parts to cut
- 144
- Build steps
- 29
- Boards
- 25
- Sheets
- 2
- Solid wood
- 41.2 bd ft
- Weight
- 87.1 kg192 lb
Materials
- Cherry
- Birch plywood
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Honed travertine slab, 20mm, filled, eased edges
- 12 x Concealed hinge, inset, with push-to-open
- 1 x LED strip in an aluminium channel with opal diffuser, 24V, 2700K
- 1 x 24V dimmable LED driver, plug-in
Cut list
The first 3 of 20 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Board - Back | 2060 x 420 x 681 1/8" x 16 9/16" x 1/4" | Birch plywood |
| B | 1 | Board - Hanging rail | 2060 x 100 x 1881 1/8" x 3 15/16" x 11/16" | Birch plywood |
| C | 1 | Board - French cleat, wall half | 1980 x 80 x 1877 15/16" x 3 1/8" x 11/16" | Birch plywood |
| +141 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 144 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 29 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

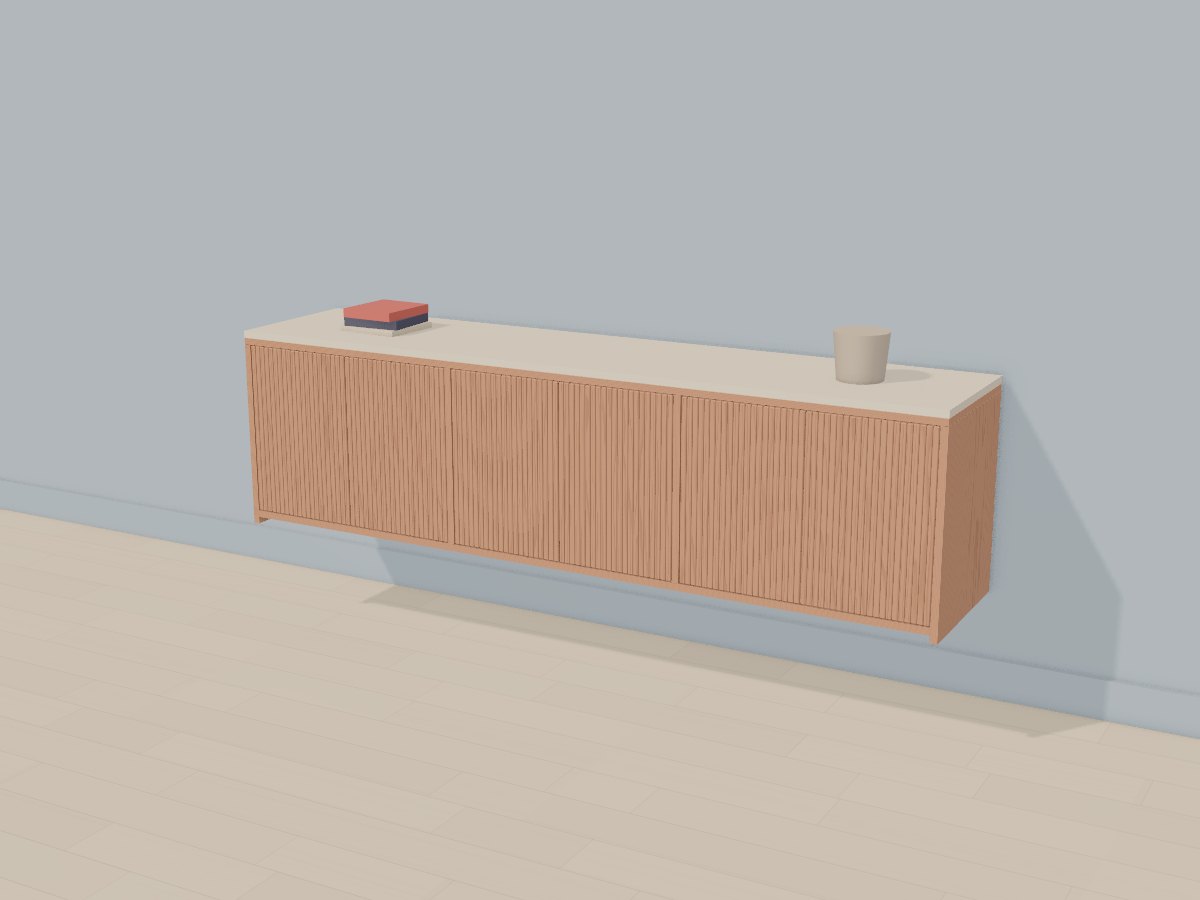

The 3D model
