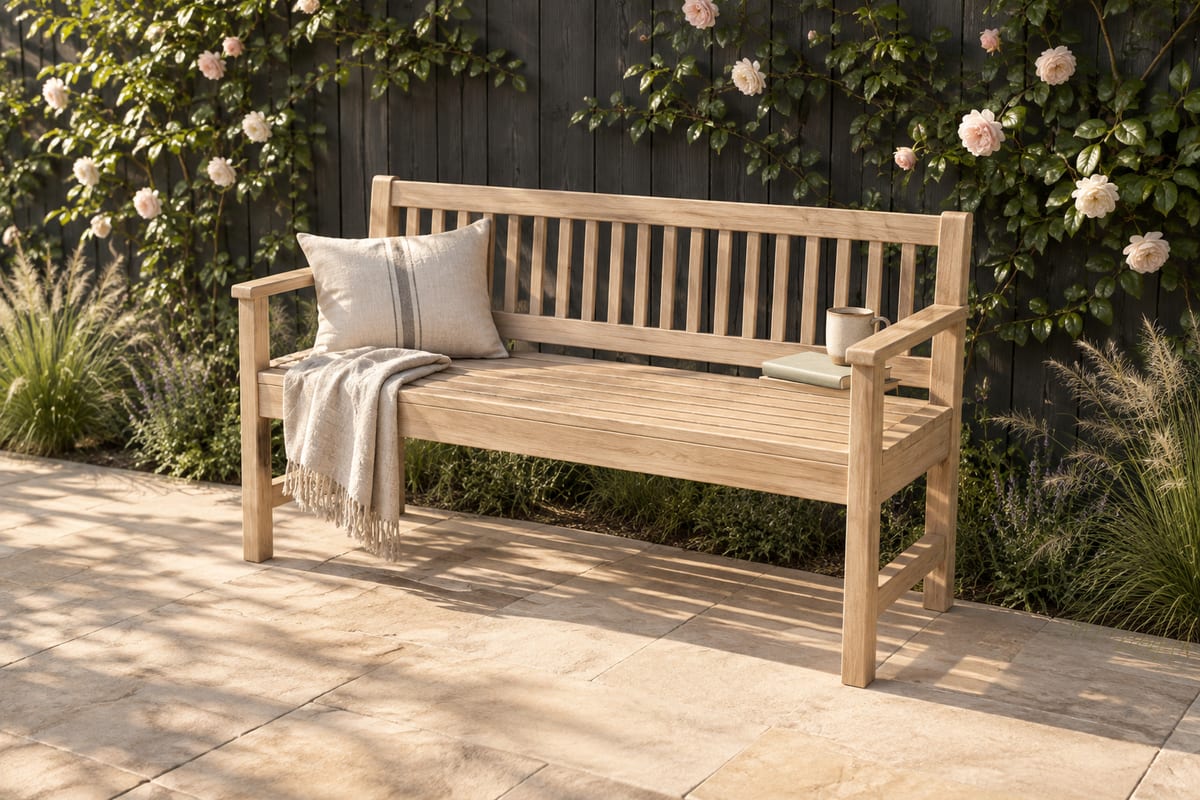

Oak garden bench
A three-seat garden bench in oiled white oak, the outdoor oak boat builders use: back legs raked so it leans you back, nineteen slim spindles tenoned between softly rounded rails, broad arms over square front legs, and five generous seat slats on hidden cleats.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1630 x 663 x 860 mm64 3/16" x 26 1/16" x 33 7/8"
- Parts to cut
- 41
- Build steps
- 26
- Boards
- 11
- Solid wood
- 24.4 bd ft
- Weight
- 42 kg93 lb
Materials
- White oak
Finish
- Finishing oil - Exterior oil, honey, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Cut list
The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Apron | 1560 x 90 x 2261 7/16" x 3 9/16" x 7/8" | White oak |
| B | 1 | Lower rail | 1550 x 60 x 3061" x 2 3/8" x 1 3/16" | White oak |
| C | 1 | Top rail | 1550 x 70 x 3061" x 2 3/4" x 1 3/16" | White oak |
| +37 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 41 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 26 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

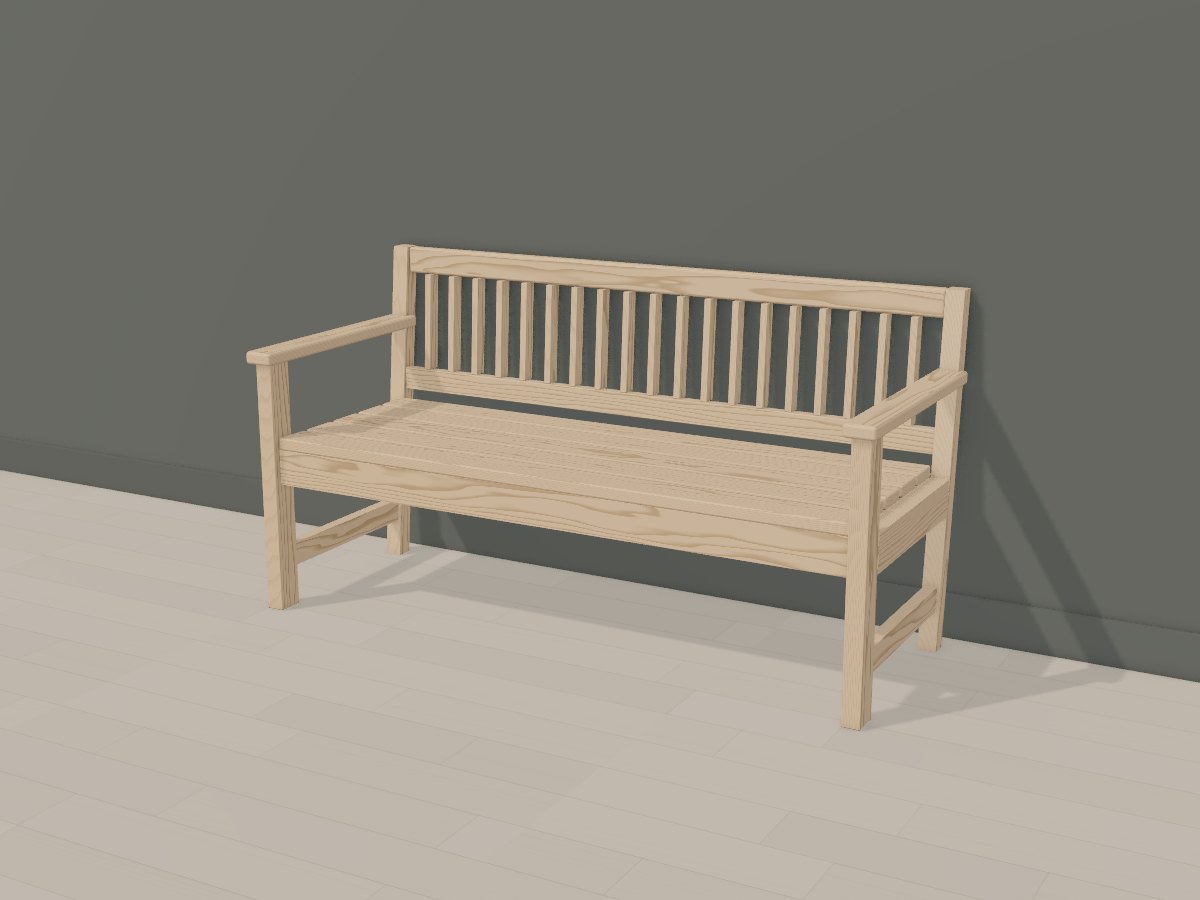

The 3D model
