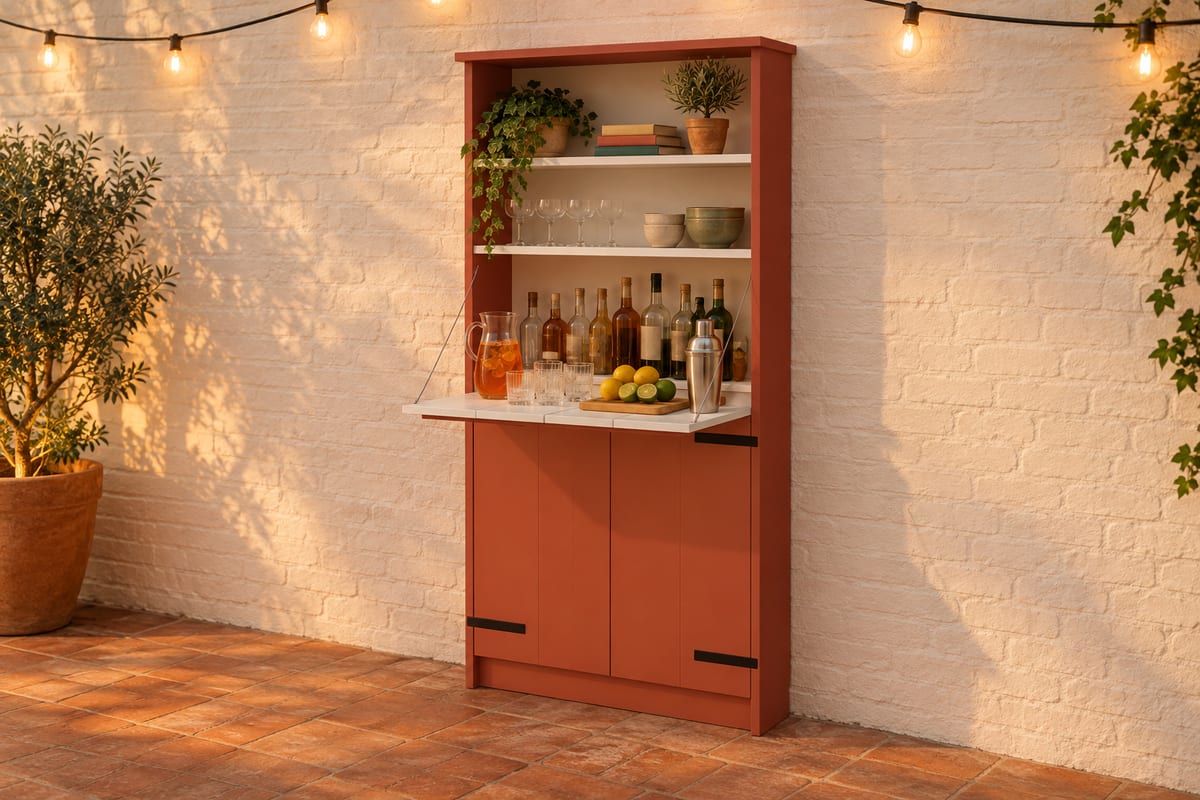

Barn red fold-down bar
A 900mm garden bar cabinet only 220mm deep: its upper door folds down on stainless stays into a 425mm-deep counter at a standing 1050mm, opening onto a cream-painted glass shelf and bottle space, with board-and-batten cupboards below for the cooler and an open shelf on top for plants.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 930 x 642 x 2028 mm36 5/8" x 25 1/4" x 79 13/16"
- Parts to cut
- 29
- Build steps
- 32
- Boards
- 12
- Solid wood
- 41.5 bd ft
- Weight
- 40.3 kg89 lb
Materials
- Pine (eastern white)
Finish
- Paint - exterior barn red, satin
- Paint - exterior cream, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 4 x Black strap hinge, 200mm, stainless pin
- 2 x Solid brass knob, 30mm, exterior grade
- 2 x Brass butt hinge, 90mm, stainless pin
- 2 x Stainless folding lid stay, 520mm, locking
Cut list
The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Side | 2000 x 220 x 2278 3/4" x 8 11/16" x 7/8" | Pine (eastern white) |
| B | 5 | Board | 2000 x 171 x 1278 3/4" x 6 3/4" x 1/2" | Pine (eastern white) |
| C | 1 | Top | 930 x 250 x 2836 5/8" x 9 13/16" x 1 1/8" | Pine (eastern white) |
| +21 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 29 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 32 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

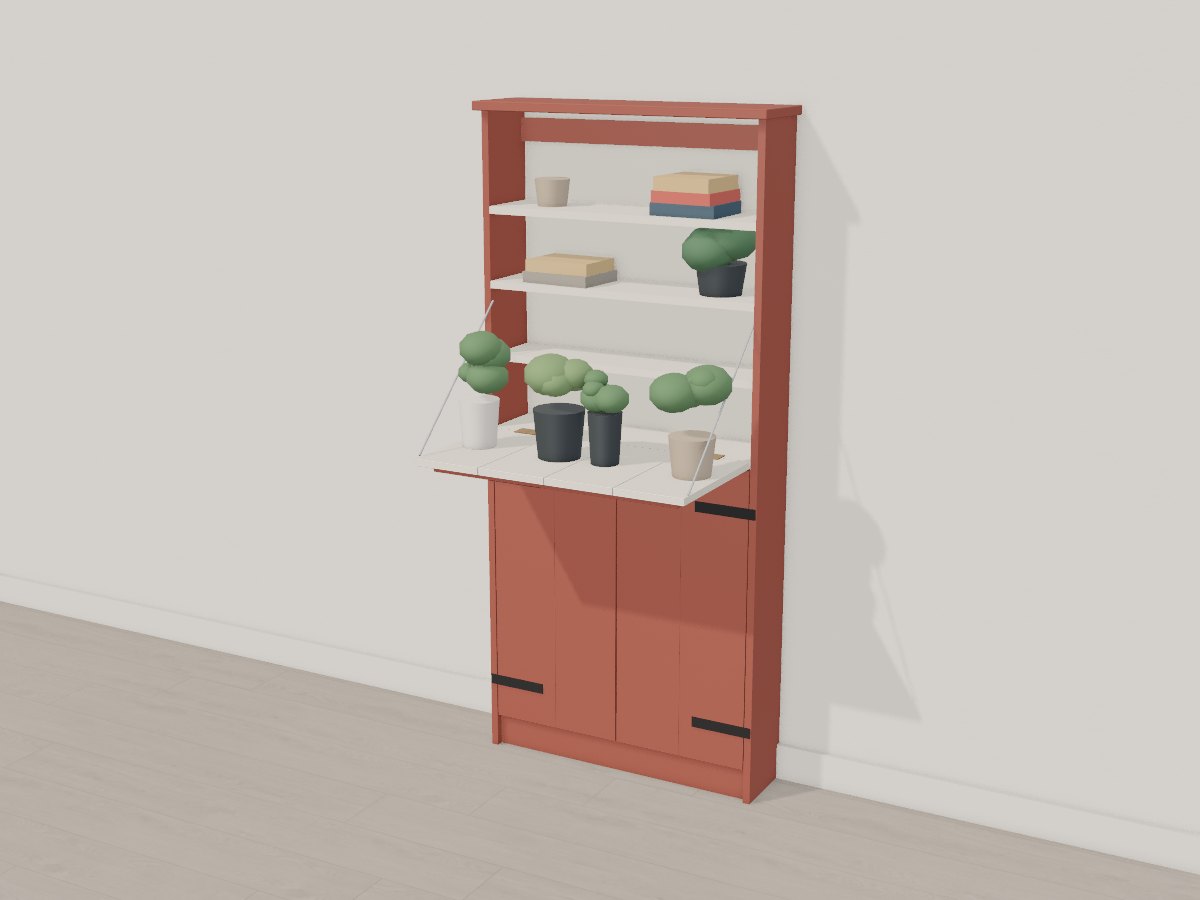

The 3D model
