Perch-edge oak raised bed

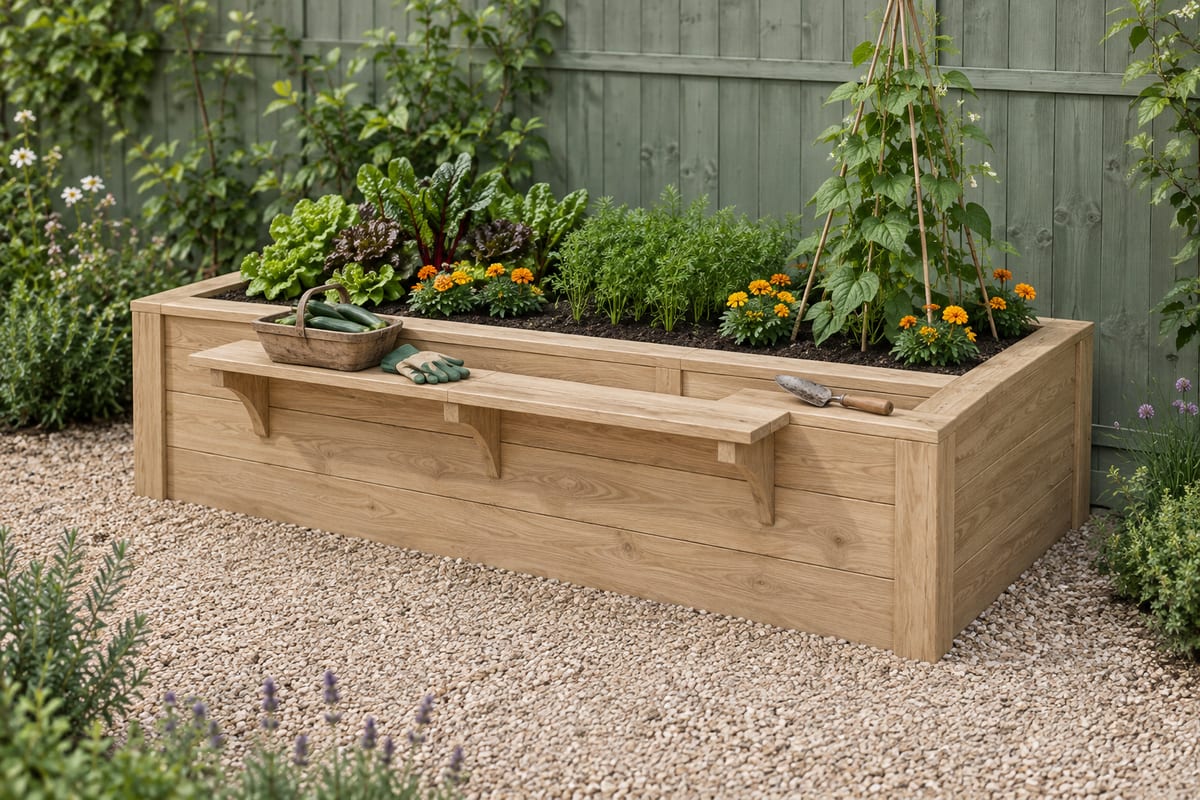

A 2m oiled white oak raised bed with a 180mm cap wide enough to sit on all round, and a deeper slatted bench on knee brackets along the front: you garden sitting down at 463mm instead of kneeling, and every part of the 1m-wide bed is in reach from one side or the other.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2050 x 1246 x 471 mm80 11/16" x 49 1/16" x 18 9/16"
- Parts to cut
- 37
- Build steps
- 19
- Boards
- 13
- Solid wood
- 53.6 bd ft
- Weight
- 92 kg203 lb
Materials
- White oak
Finish
- Finishing oil - Exterior hardwood oil, natural, matte
Tools
- Saw
- Square
- Tape
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 11 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Cap (seat edge) | 2050 x 180 x 2880 11/16" x 7 1/16" x 1 1/8" | White oak |
| B | 6 | Wall board | 2000 x 145 x 2878 3/4" x 5 11/16" x 1 1/8" | White oak |
| C | 6 | End board | 944 x 145 x 2837 3/16" x 5 11/16" x 1 1/8" | White oak |
| +23 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 37 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 19 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

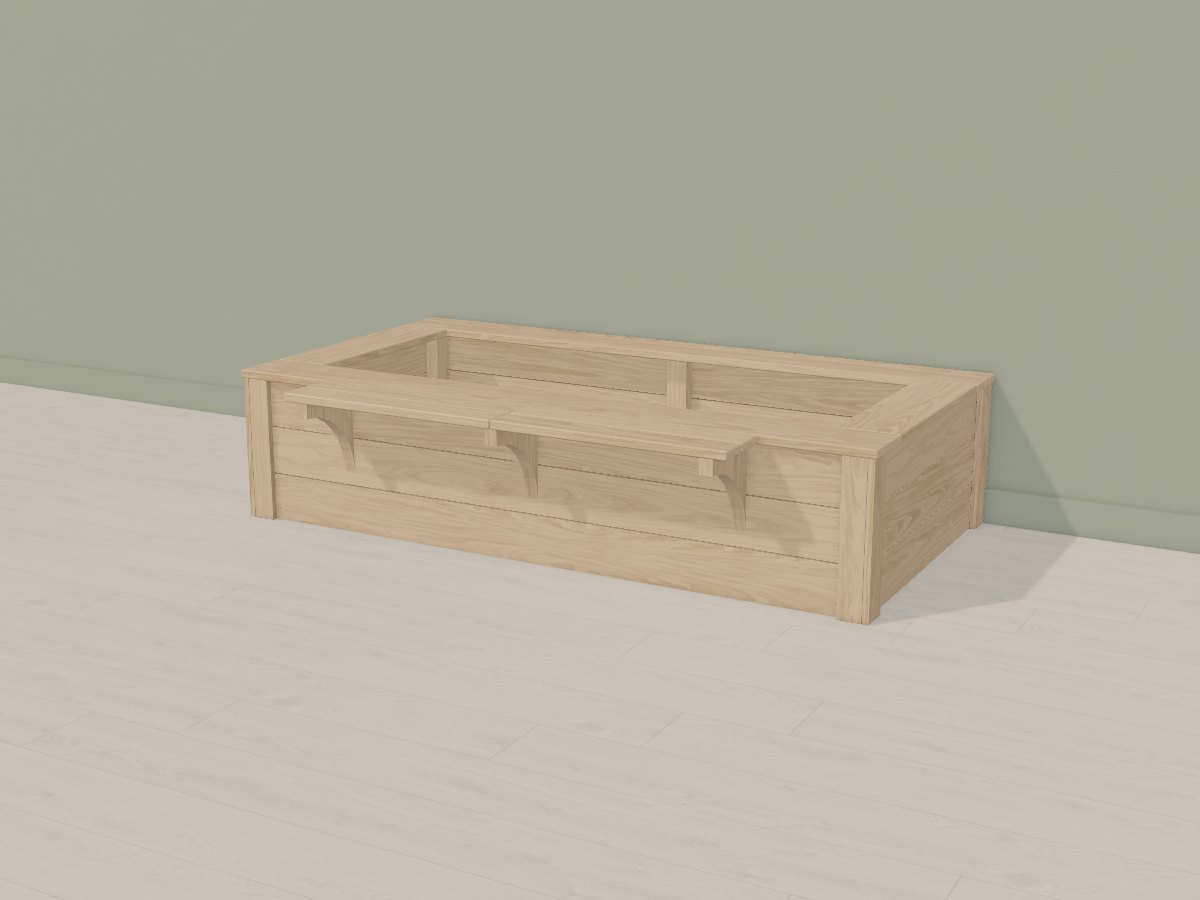

The 3D model
