Raked oak lounge chair

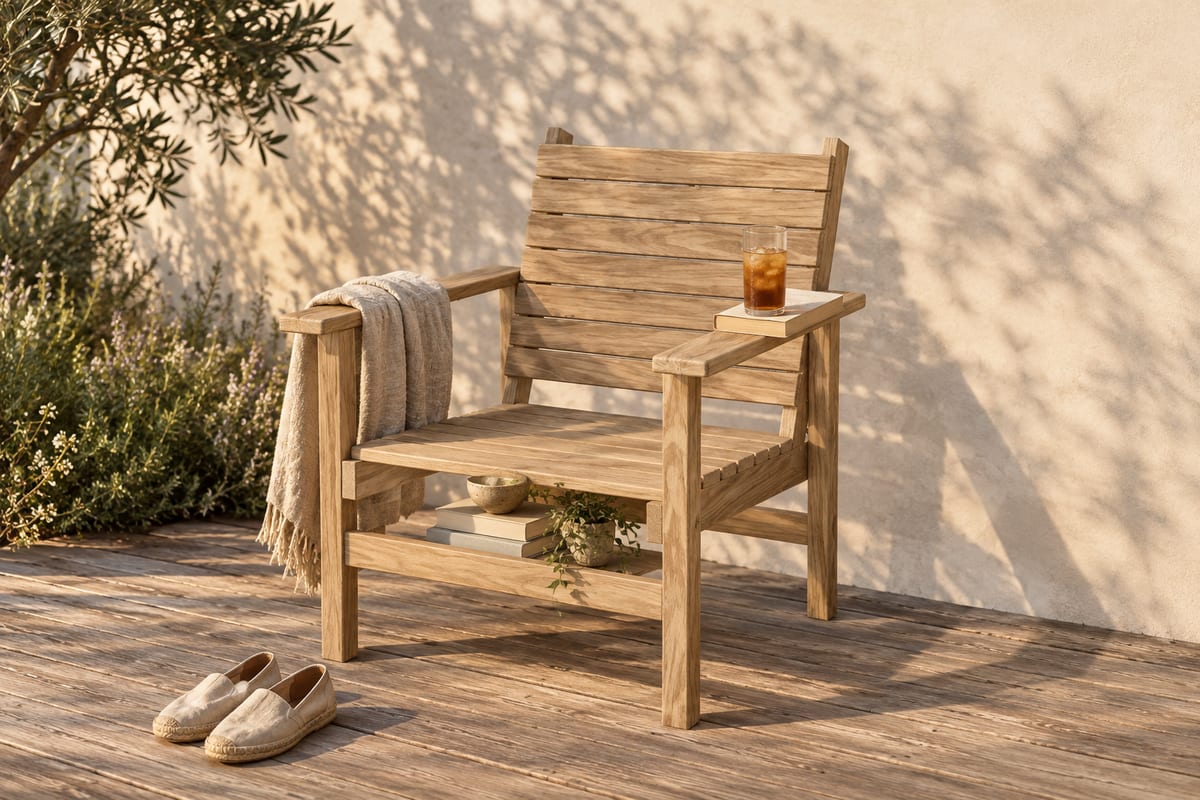

A low slatted lounge chair in oiled white oak: the seat rakes back 50mm and the slatted back leans at about 19 degrees on bolted rails, with broad 95mm arms for a glass or a book - the deep, lie-back sit of a deck chair on a frame that stays out all summer and needs no cushion.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 800 x 828 x 910 mm31 1/2" x 32 5/8" x 35 13/16"
- Parts to cut
- 27
- Build steps
- 18
- Boards
- 7
- Solid wood
- 16.6 bd ft
- Weight
- 22 kg49 lb
Materials
- White oak
Finish
- Finishing oil - Exterior hardwood oil, natural, matte
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 8 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Arm | 730 x 95 x 3028 3/4" x 3 3/4" x 1 3/16" | White oak |
| B | 1 | Stretcher | 660 x 70 x 2226" x 2 3/4" x 7/8" | White oak |
| C | 1 | Stretcher | 660 x 60 x 2226" x 2 3/8" x 7/8" | White oak |
| +23 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 27 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 18 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

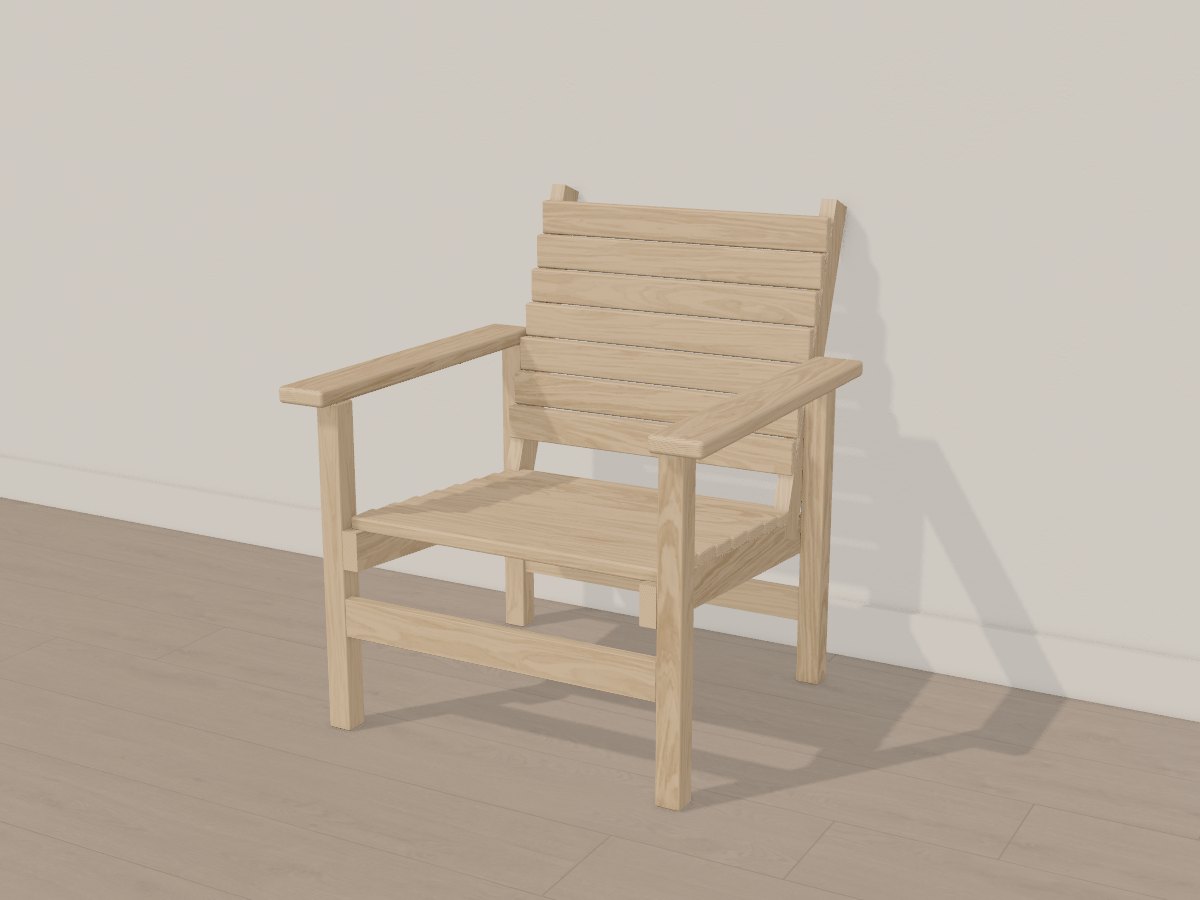

The 3D model
