Chalk white trellis planter

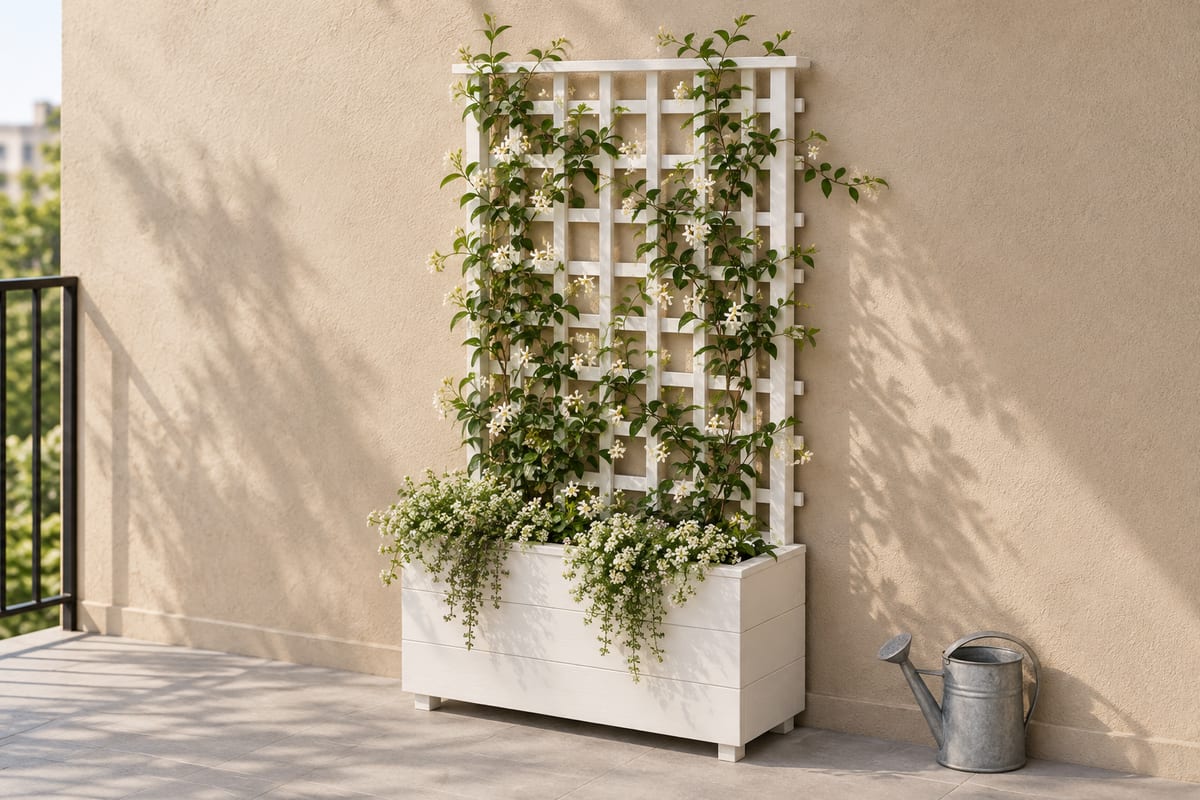

A 1m planter box on short feet with its back posts carried up to 1.8m as a painted trellis: a climber screens the balcony from the neighbours in just 420mm of depth, and the slatted floor on cleats drains so the roots never sit in water.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1024 x 444 x 1822 mm40 5/16" x 17 1/2" x 71 3/4"
- Parts to cut
- 46
- Build steps
- 24
- Boards
- 12
- Solid wood
- 25.7 bd ft
- Weight
- 24.2 kg53 lb
Materials
- Pine (eastern white)
Finish
- Paint - exterior chalk white, satin
Tools
- Saw
- Square
- Tape
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Post | 1800 x 63 x 3870 7/8" x 2 1/2" x 1 1/2" | Pine (eastern white) |
| B | 6 | Trellis upright | 1292 x 34 x 1850 7/8" x 1 5/16" x 11/16" | Pine (eastern white) |
| C | 1 | Cap | 1024 x 70 x 2240 5/16" x 2 3/4" x 7/8" | Pine (eastern white) |
| +37 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 46 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 24 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

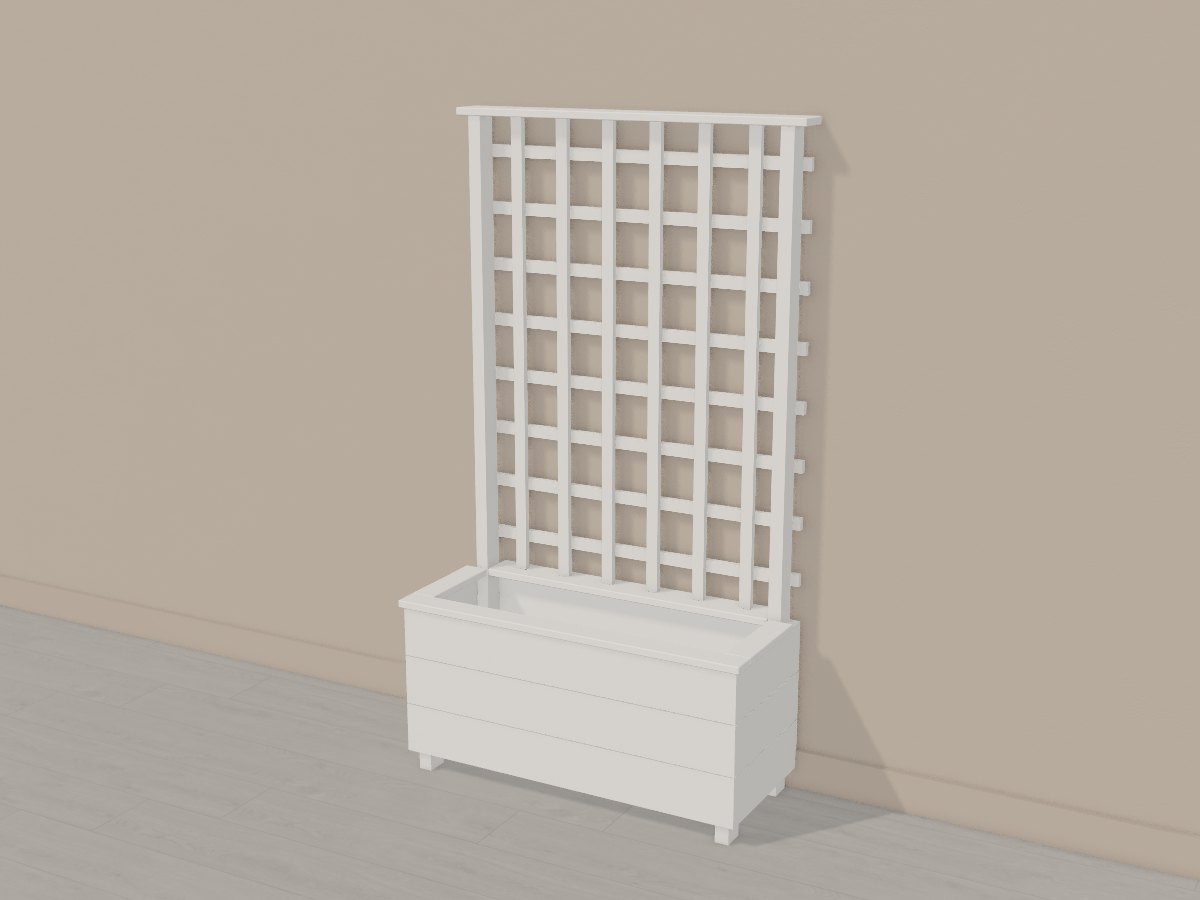

The 3D model
