Outfeed and assembly table with clamp racks

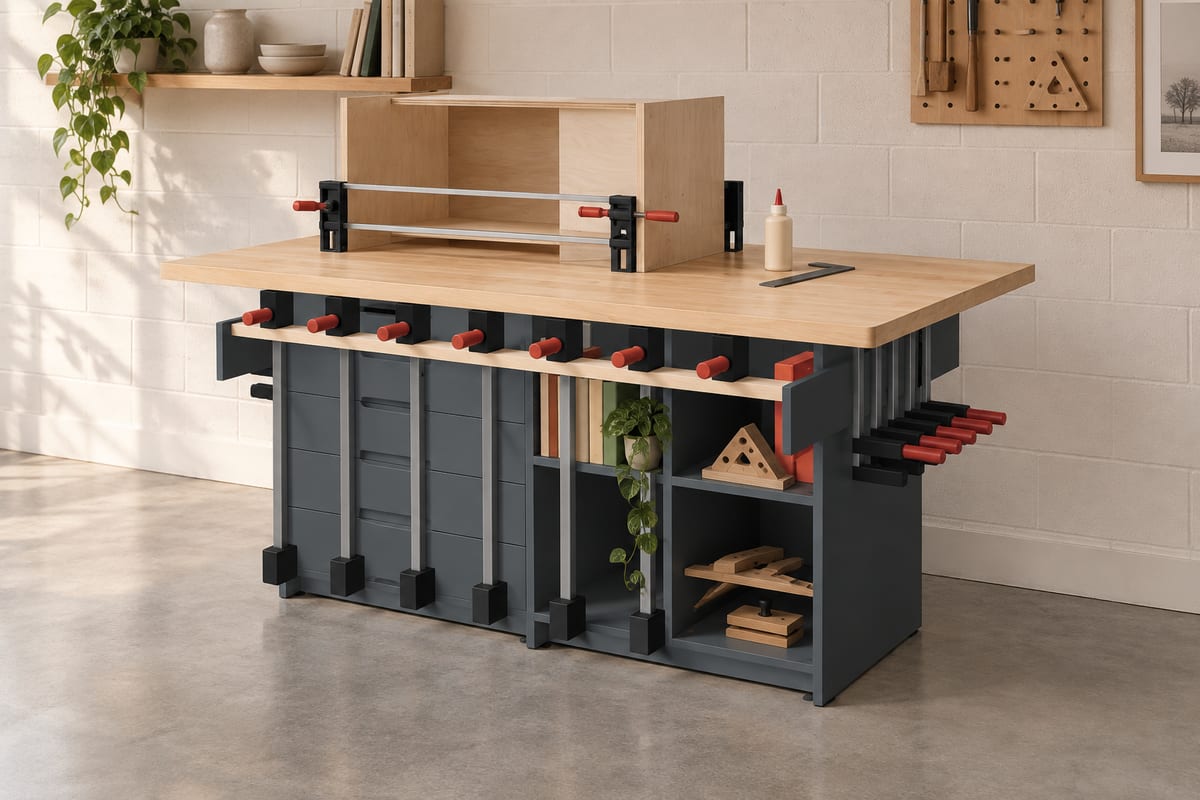

A 1.8 x 1.1m outfeed and assembly table set level with the saw, whose deep overhangs earn their keep: fourteen parallel clamps hang through slotted maple rails under the long sides and ten F-clamps under the ends, every clamp within reach of the glue-up on top. A graphite core holds jigs on open shelves on one face and eight drawers on the other.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1846 x 1100 x 870 mm72 11/16" x 43 5/16" x 34 1/4"

Parts to cut

59

Build steps

64

Boards

5

Sheets

7

Solid wood

9 bd ft

Weight

217.8 kg480 lb

Materials

• Birch plywood
• Hard maple

Finish

• Clear finish - Water-based lacquer, matt, matte
• Finishing oil - Hardwax oil, satin
• Paint - graphite, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 1 x Parallel bar clamp, 600mm (yours, stored here)
• 1 x F-clamp, 300mm (yours, stored here)
• 10 x Side-mount drawer slide, 550mm
• 5 x Bar pull, 128mm centres, matt black

Cut list

The first 3 of 41 lines, in millimetres (inches below), finished size including joint allowances.

The 3D model
