Oxblood bar cabinet

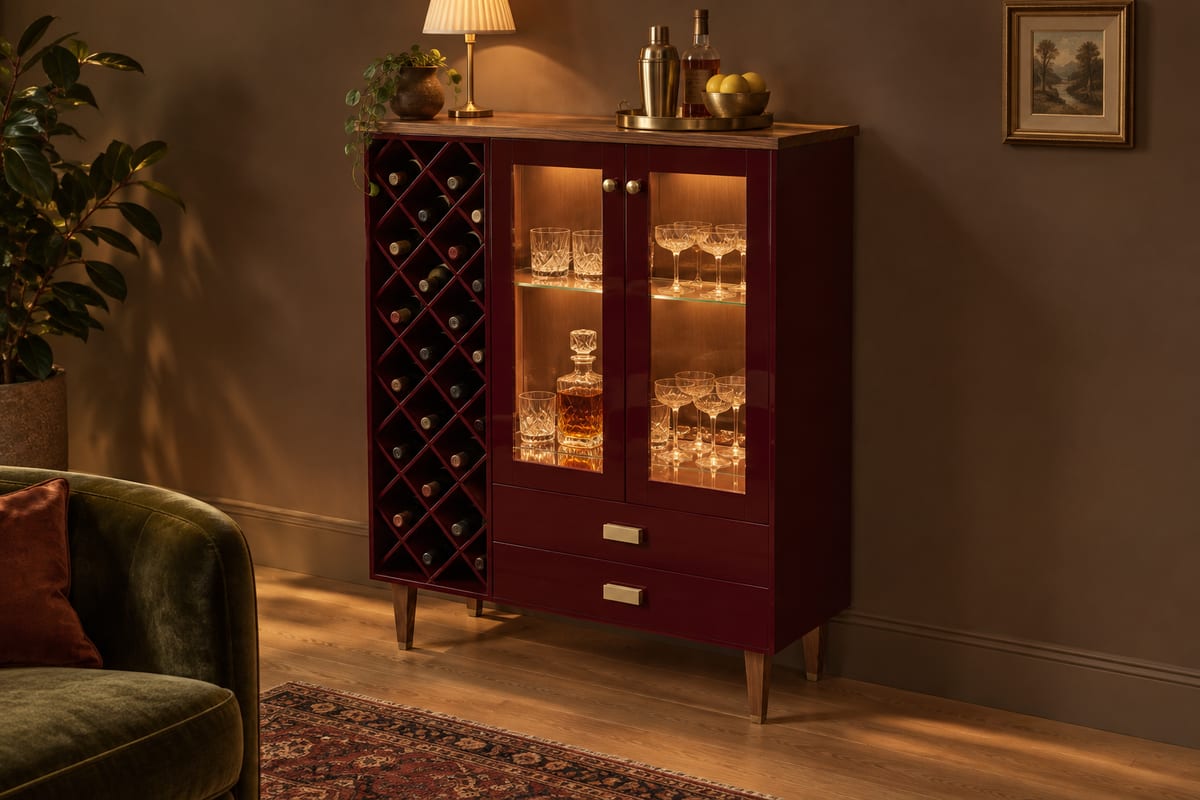

A glossy oxblood bar cabinet on tapered walnut legs with brass feet: a diamond wine lattice down one side, glass doors over lit shelves for the glassware, two drawers for the bar tools, and a solid walnut top.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1130 x 468 x 1442 mm44 1/2" x 18 7/16" x 56 3/4"
- Parts to cut
- 60
- Build steps
- 61
- Boards
- 2
- Sheets
- 6
- Solid wood
- 7.7 bd ft
- Weight
- 115.6 kg255 lb
Materials
- Birch plywood
- Black walnut
- MDF
Finish
- Finishing oil - Hardwax oil, satin
- Paint - oxblood lacquer, gloss
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Dowel jig
- Clamps
- Chisel
- Table saw
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 4 x Brass leg ferrule, square, 32mm
- 4 x Side-mount drawer slide, 400mm
- 2 x Cup pull, 96mm centres, brushed brass
- 4 x Concealed cabinet hinge, full overlay
- 1 x Plug-in LED strip kit, 12V, warm white 2700K
- 2 x Toughened glass panel, 4mm
- 2 x Round knob, 30mm, brushed brass
Cut list
The first 3 of 32 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Wine - Side | 1220 x 434 x 1848 1/16" x 17 1/16" x 11/16" | Birch plywood |
| B | 1 | Wine - Back | 1220 x 380 x 648 1/16" x 14 15/16" x 1/4" | Birch plywood |
| C | 2 | Glass - Side | 920 x 416 x 1836 1/4" x 16 3/8" x 11/16" | Birch plywood |
| +55 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 60 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 61 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

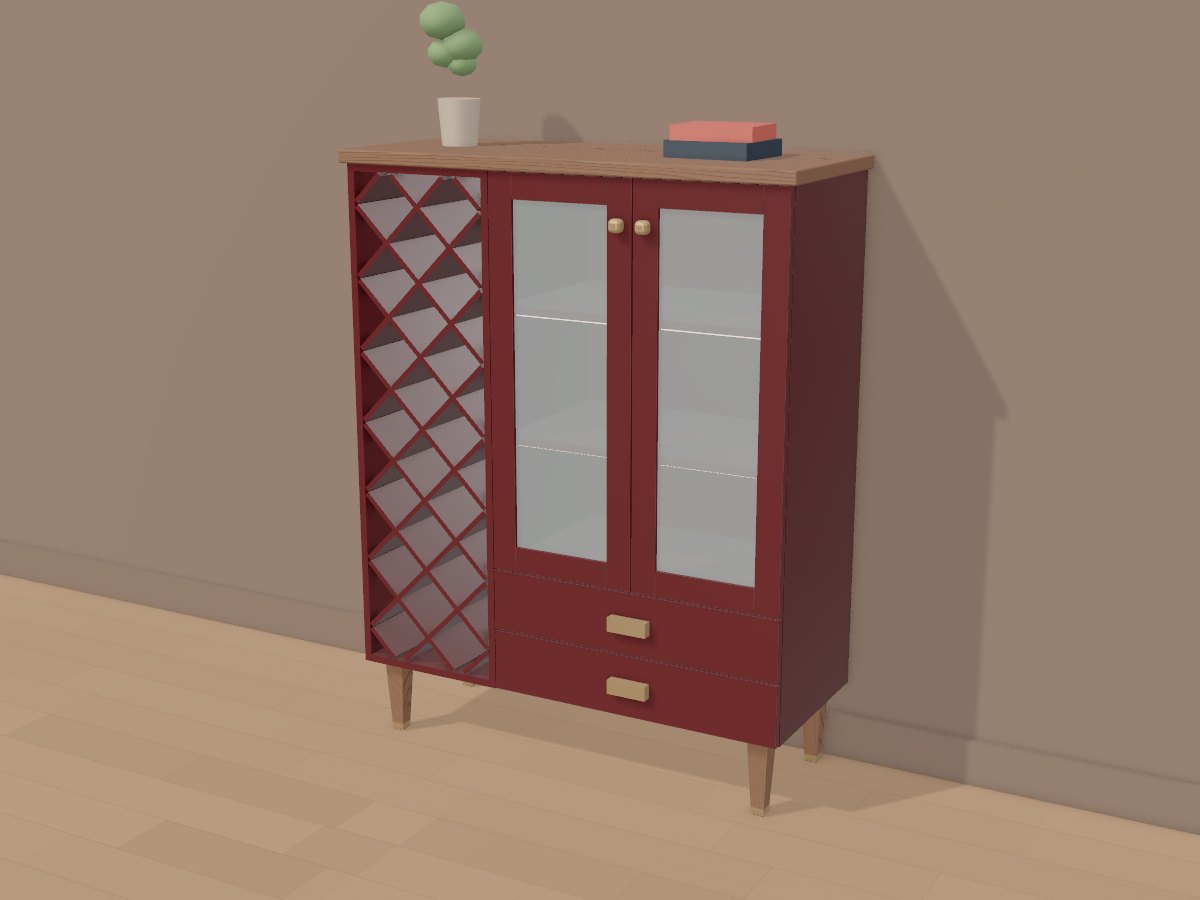

The 3D model
