Finishing cart with pull-out drying racks
A slate-green rolling finishing cart for small shops where wet parts end up all over the bench: eight maple racks slide out on runners, each with four drying pins, so a whole kitchen of doors dries in 0.43m² of floor and rolls away from the dust. A cupboard below holds the tins and brushes, a lipped top keeps the open can in place.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 700 x 1060 x 1670 mm27 9/16" x 41 3/4" x 65 3/4"
- Parts to cut
- 93
- Build steps
- 34
- Boards
- 11
- Sheets
- 4
- Solid wood
- 7.8 bd ft
- Weight
- 91.4 kg202 lb
Materials
- Hard maple
- Birch plywood
Finish
- Paint - slate green, satin
- Clear finish - Water-based lacquer, matt, matte
- Finishing oil - Hardwax oil, satin
- Paint - fresh cream paint, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
- 1 x Your work drying (not part of this build)
- 4 x Concealed cabinet hinge, full overlay
- 2 x Bar pull, 128mm centres, matt black
Cut list
The first 3 of 43 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Side | 1502 x 620 x 1859 1/8" x 24 7/16" x 11/16" | Birch plywood |
| B | 1 | Back | 1122 x 664 x 1244 3/16" x 26 1/8" x 1/2" | Birch plywood |
| C | 1 | Rolling base | 700 x 620 x 1827 9/16" x 24 7/16" x 11/16" | Birch plywood |
| +89 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 93 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 34 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

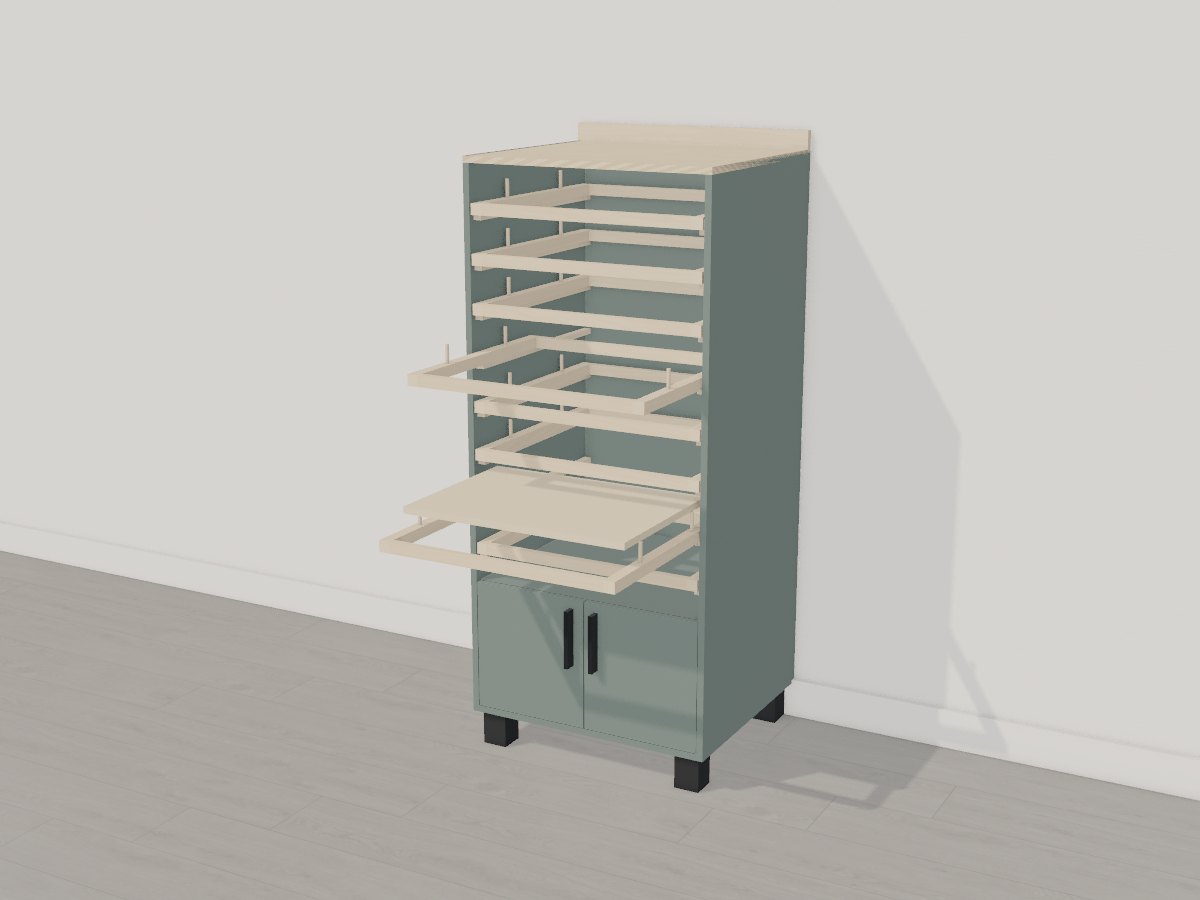

The 3D model
