Olive window seat

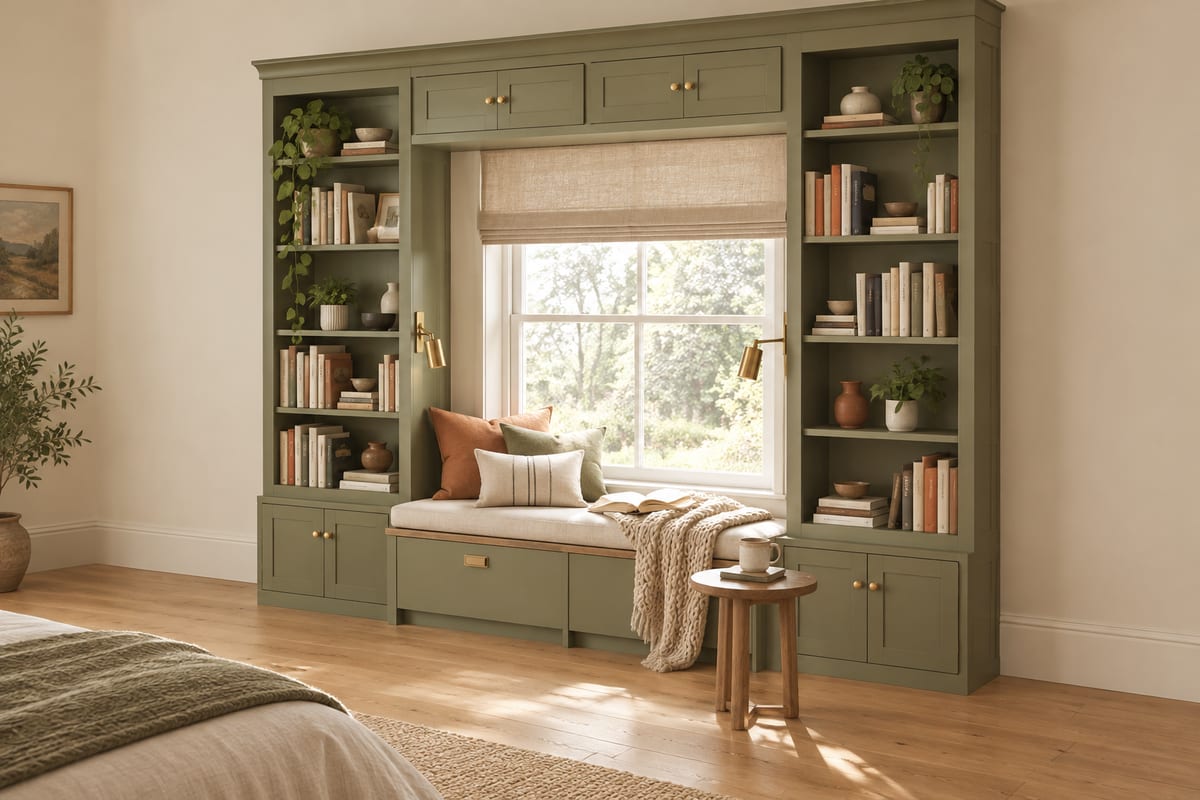

A reading window seat built right across a bedroom bay in smoky olive: two deep drawers under an oiled oak seat and a thick ticking-stripe cushion, bookcases rising either side over shaker cupboards, a cupboard bridging over the window under a cove crown, and a brass swing-arm light on each side for reading after dark.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3000 x 525 x 2400 mm118 1/8" x 20 11/16" x 94 1/2"

Parts to cut

133

Build steps

109

Boards

10

Sheets

10

Solid wood

25.9 bd ft

Weight

261.4 kg576 lb

Materials

• Birch plywood
• MDF
• Poplar (paint grade)
• White oak

Finish

• Finishing oil - Hardwax oil, matt
• Paint - smoky olive, eggshell

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Pocket-hole jig
• Dowel jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Box cushion, 80mm high-density foam, in a removable oatmeal ticking-stripe cover
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 16 x Concealed face-frame hinge, partial overlay
• 8 x Round knob, 30mm, brushed brass
• 4 x Side-mount drawer slide, 450mm
• 2 x Cup pull, 96mm centres, brushed brass
• 1 x Cove crown moulding, 100mm
• 2 x Plug-in swing-arm reading light, brushed brass

Cut list

The first 3 of 100 lines, in millimetres (inches below), finished size including joint allowances.

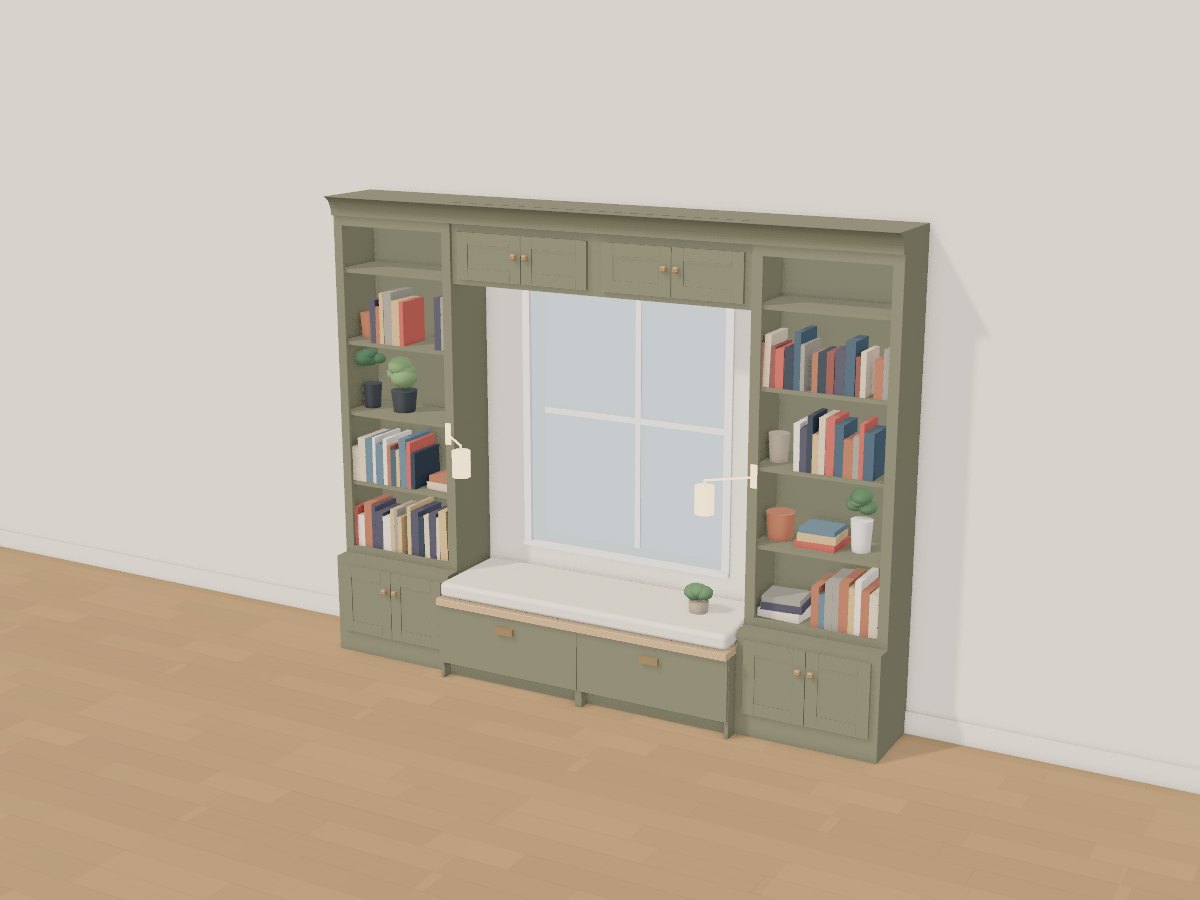

The 3D model

More bedroom designs

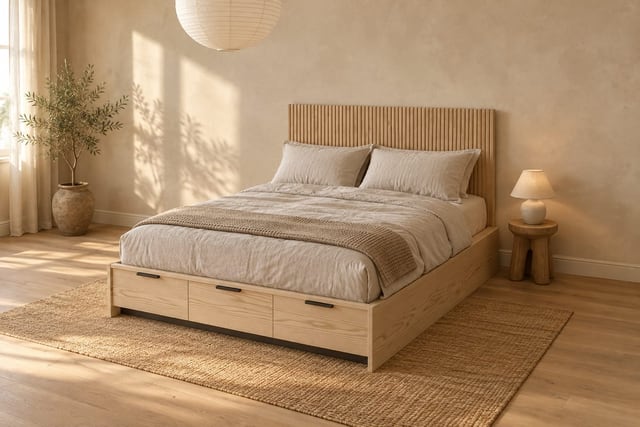

• Oak platform storage bed A low queen platform bed in oiled white oak, with three deep drawers tucked under the foot behind a shadow-line lip and a floating black kick, and a fluted oak headboard screwed to the wall behind it. Calm and Japanese-leaning, with a whole chest of drawers hiding in plain sight.
