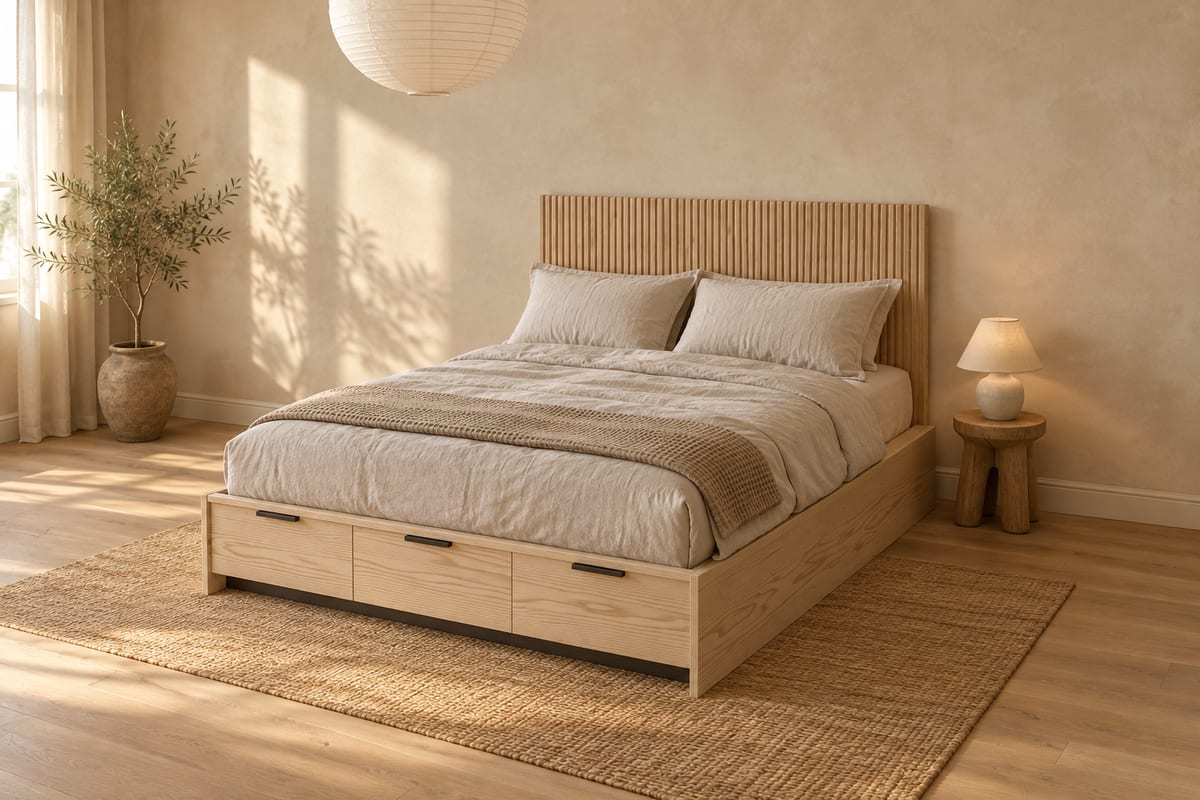

Oak platform storage bed

A low queen platform bed in oiled white oak, with three deep drawers tucked under the foot behind a shadow-line lip and a floating black kick, and a fluted oak headboard screwed to the wall behind it. Calm and Japanese-leaning, with a whole chest of drawers hiding in plain sight.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1650 x 2150 x 1150 mm64 15/16" x 84 5/8" x 45 1/4"

Parts to cut

104

Build steps

46

Boards

28

Sheets

7

Solid wood

41.7 bd ft

Weight

435 kg959 lb

Materials

• White oak
• Birch plywood
• Pine (eastern white)
• MDF

Finish

• Finishing oil - Hardwax oil, matt
• Paint - shadow black, matte
• Paint - charcoal, matte

Tools

• Saw
• Square
• Tape
• Pocket-hole jig
• Drill
• Router
• Table saw
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 1 x Your queen mattress, 1525 x 2030mm, up to 250mm thick (not part of this build)
• 6 x Side-mount drawer slide, 500mm
• 3 x Edge pull, 150mm, matt black
• 2 x Anti-tip furniture wall bracket, steel, with stud screws

Cut list

The first 3 of 35 lines, in millimetres (inches below), finished size including joint allowances.

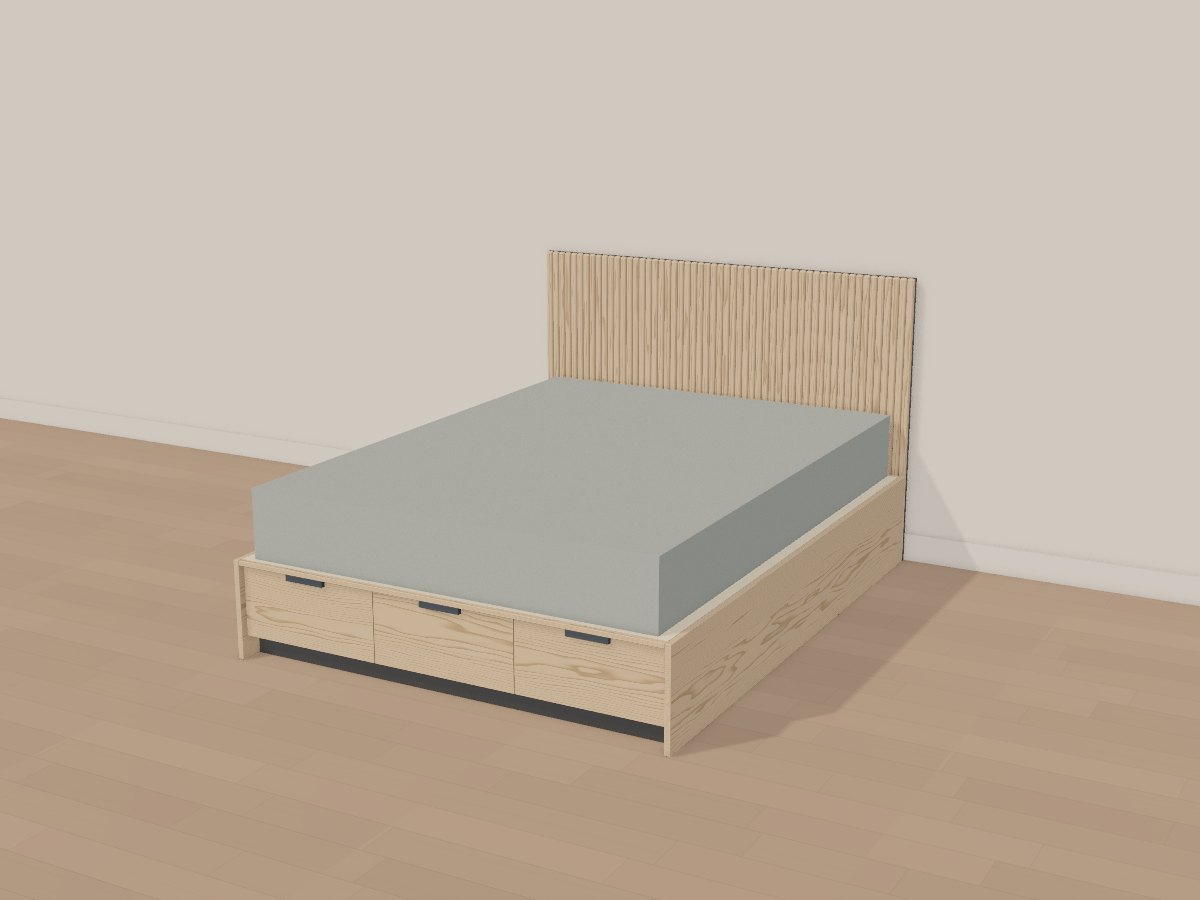

The 3D model
