Ochre three-bin laundry sorter

A counter-height laundry sorter painted deep ochre: three open bays, each with a canvas hamper on a pull-out frame, under a thick hard maple butcher-block top for folding, with a little brass label holder over each bay.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1240 x 464 x 900 mm48 13/16" x 18 1/4" x 35 7/16"

Parts to cut

9

Build steps

20

Boards

2

Sheets

3

Solid wood

9.2 bd ft

Weight

124.1 kg274 lb

Materials

• Birch plywood
• Hard maple

Finish

• Finishing oil - Hardwax oil, matt
• Paint - deep ochre, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 3 x Canvas laundry hamper bag on a pull-out wire frame with side runners
• 3 x Card label holder, unlacquered brass, 80 x 26mm

Cut list

The first 3 of 7 lines, in millimetres (inches below), finished size including joint allowances.

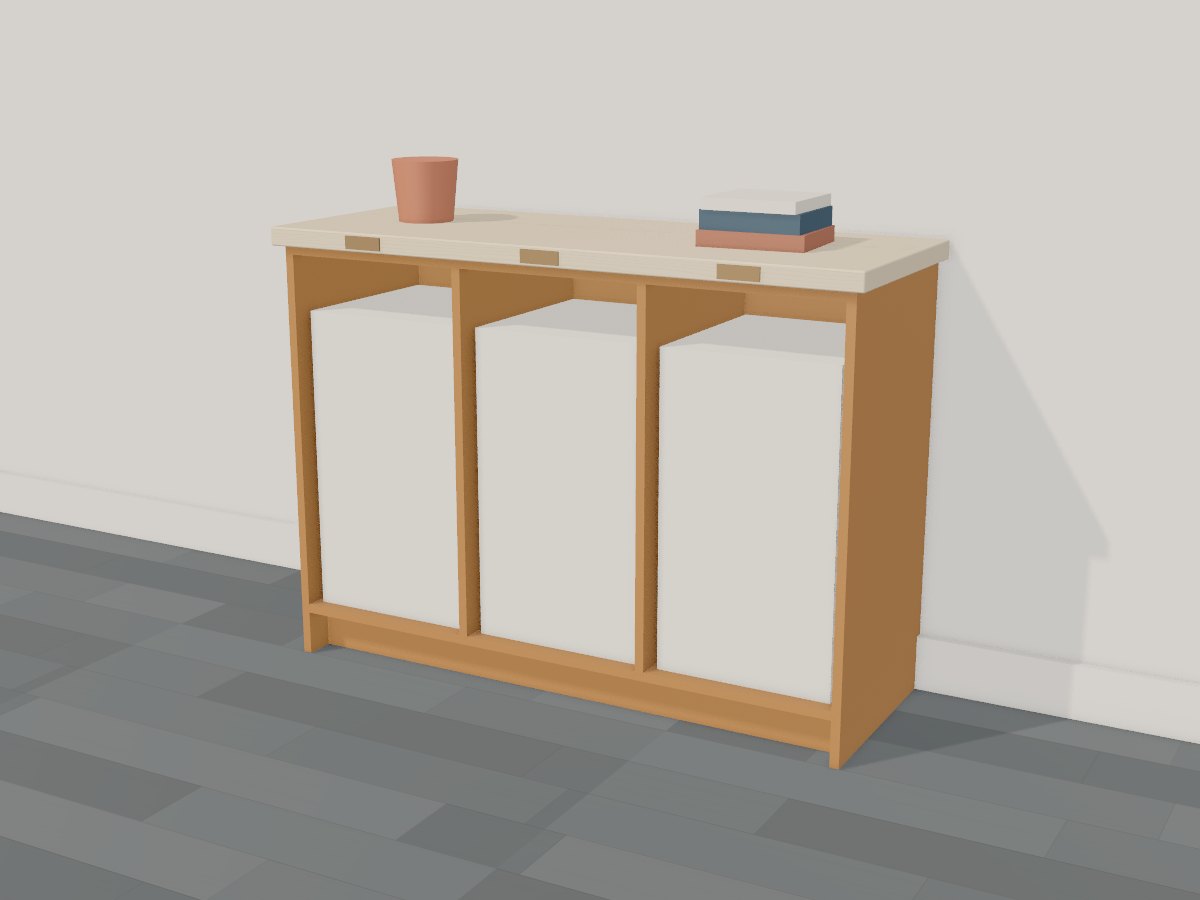

The 3D model
