Mauve linen tower

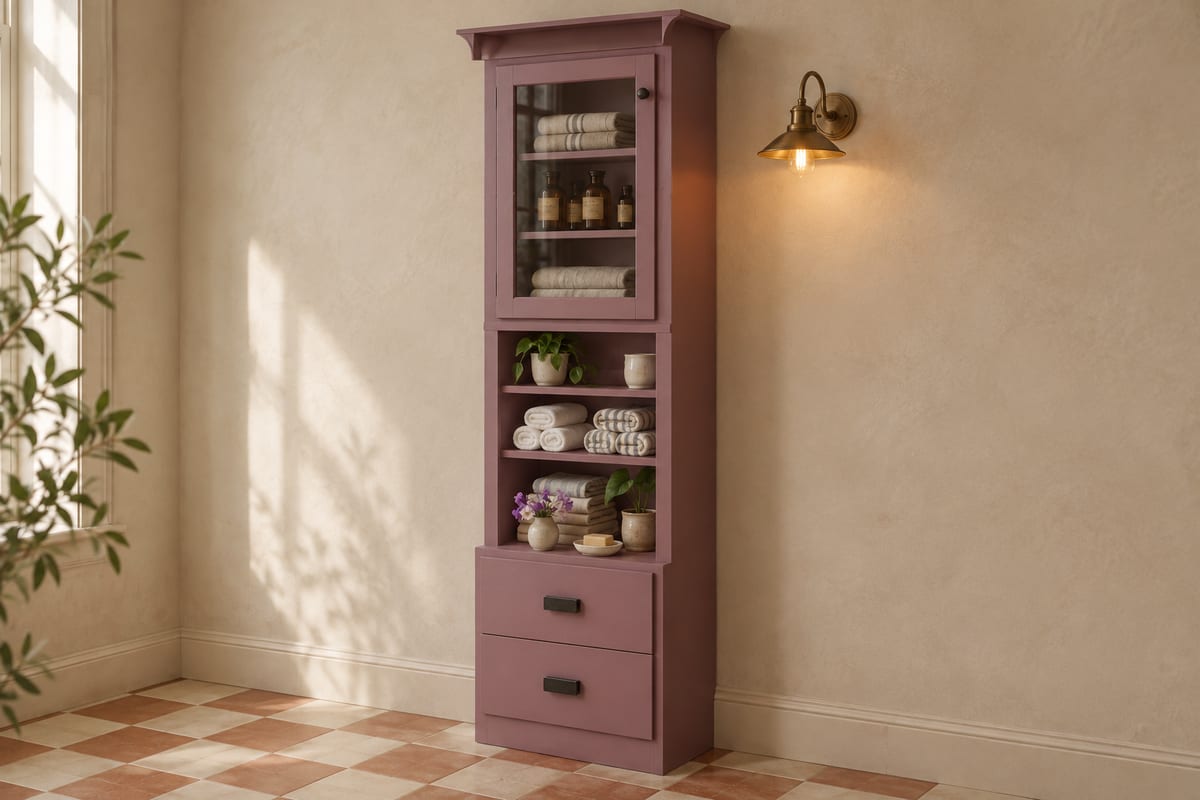

A tall, slender linen press painted a dusky heather mauve: two drawers in a deeper base with a ledge on top, open shelves for rolled towels, a glass-fronted cupboard above for linens and bottles, nickel pulls and a cove crown, like a piece of old bathroom furniture.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 672 x 445 x 2150 mm26 7/16" x 17 1/2" x 84 5/8"
- Parts to cut
- 55
- Build steps
- 76
- Boards
- 5
- Sheets
- 5
- Solid wood
- 4.1 bd ft
- Weight
- 70.4 kg155 lb
Materials
- Birch plywood
- Poplar (paint grade)
- MDF
Finish
- Paint - heather mauve, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Pocket-hole jig
- Table saw
- Chisel
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 4 x Side-mount drawer slide, 350mm
- 2 x Cup pull, 96mm centres, satin nickel
- 2 x Concealed face-frame hinge, partial overlay
- 1 x Toughened glass panel, 4mm
- 1 x Round knob, 30mm, satin nickel
- 1 x Cove crown moulding, 80mm
Cut list
The first 3 of 38 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tower up - Side | 890 x 287 x 1835 1/16" x 11 5/16" x 11/16" | Birch plywood |
| B | 1 | Tower up - Back | 890 x 560 x 635 1/16" x 22 1/16" x 1/4" | Birch plywood |
| C | 2 | Tower mid - Side | 640 x 305 x 1825 3/16" x 12" x 11/16" | Birch plywood |
| +50 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 55 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 76 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

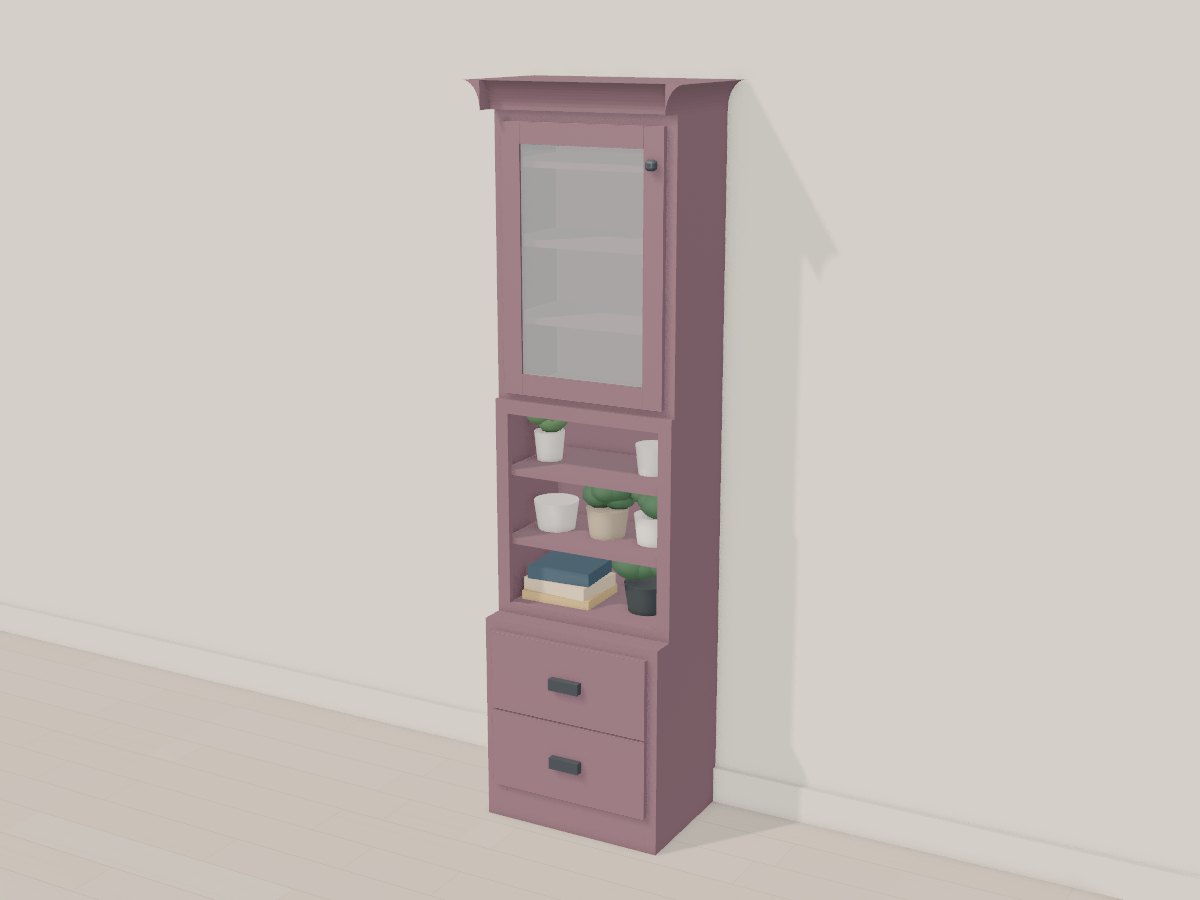

The 3D model
