Fluted oak floating double vanity

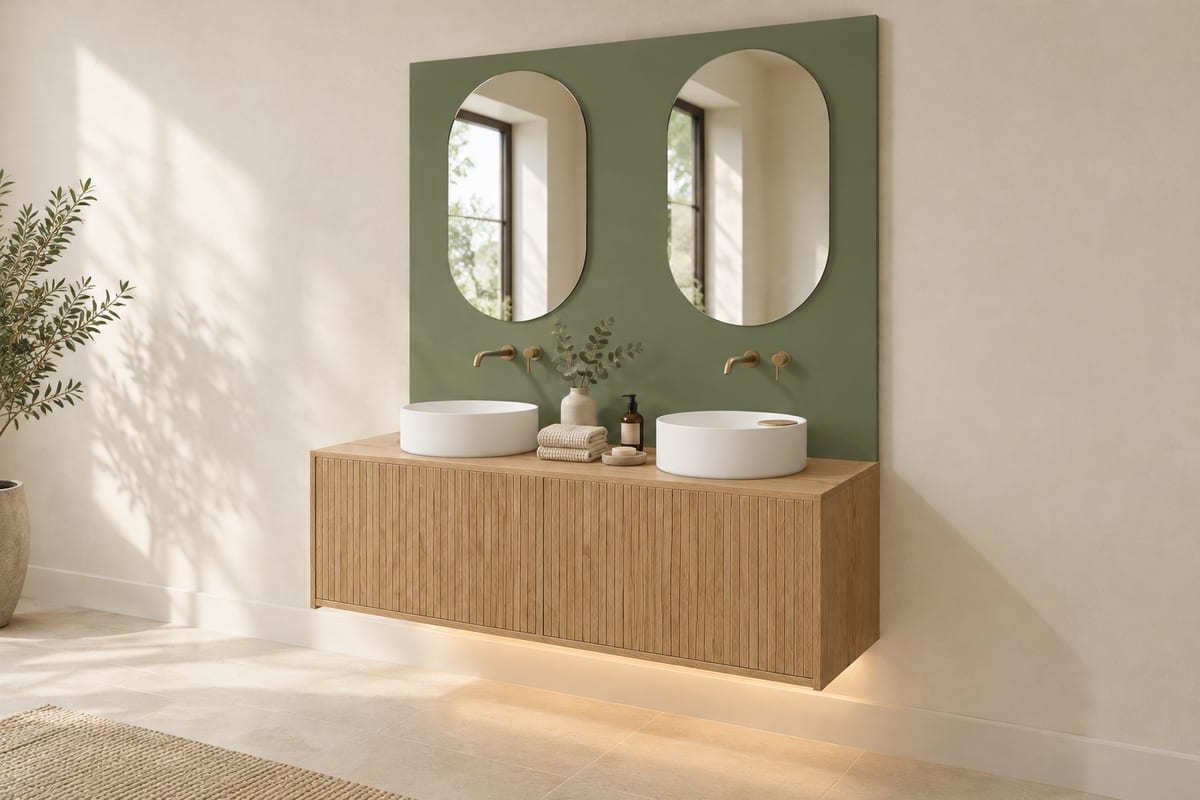

A wall-hung double vanity in white oak with four reeded doors on push-to-open hinges, two round matt-white vessel basins, wall-mounted brass taps and pill-shaped mirrors on a moss-green zellige splashback, and a warm light glowing on the floor beneath it.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1500 x 520 x 1680 mm59 1/16" x 20 1/2" x 66 1/8"
- Parts to cut
- 79
- Build steps
- 35
- Boards
- 14
- Sheets
- 3
- Solid wood
- 30.5 bd ft
- Weight
- 147.5 kg325 lb
Materials
- White oak
- Birch plywood
Finish
- Clear finish - Water-resistant polyurethane, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Glazed zellige-style wall tile, moss green, 60 x 240mm, laid vertically
- 2 x Round ceramic vessel basin, matt white, 400mm
- 4 x Wall-mounted basin mixer, two-hole, unlacquered brass
- 2 x Mirror glass, 6mm, cut to a pill shape with full round ends
- 8 x Concealed hinge, inset, with push-to-open
- 1 x LED strip in an aluminium channel with opal diffuser, 24V, 2700K
- 1 x 24V dimmable LED driver, plug-in
Cut list
The first 3 of 17 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Splashback backer | 1500 x 1200 x 1259 1/16" x 47 1/4" x 1/2" | Birch plywood |
| B | 1 | Vanity - Back | 1460 x 340 x 657 1/2" x 13 3/8" x 1/4" | Birch plywood |
| C | 1 | Vanity - Hanging rail | 1460 x 100 x 1857 1/2" x 3 15/16" x 11/16" | Birch plywood |
| +76 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 79 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 35 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

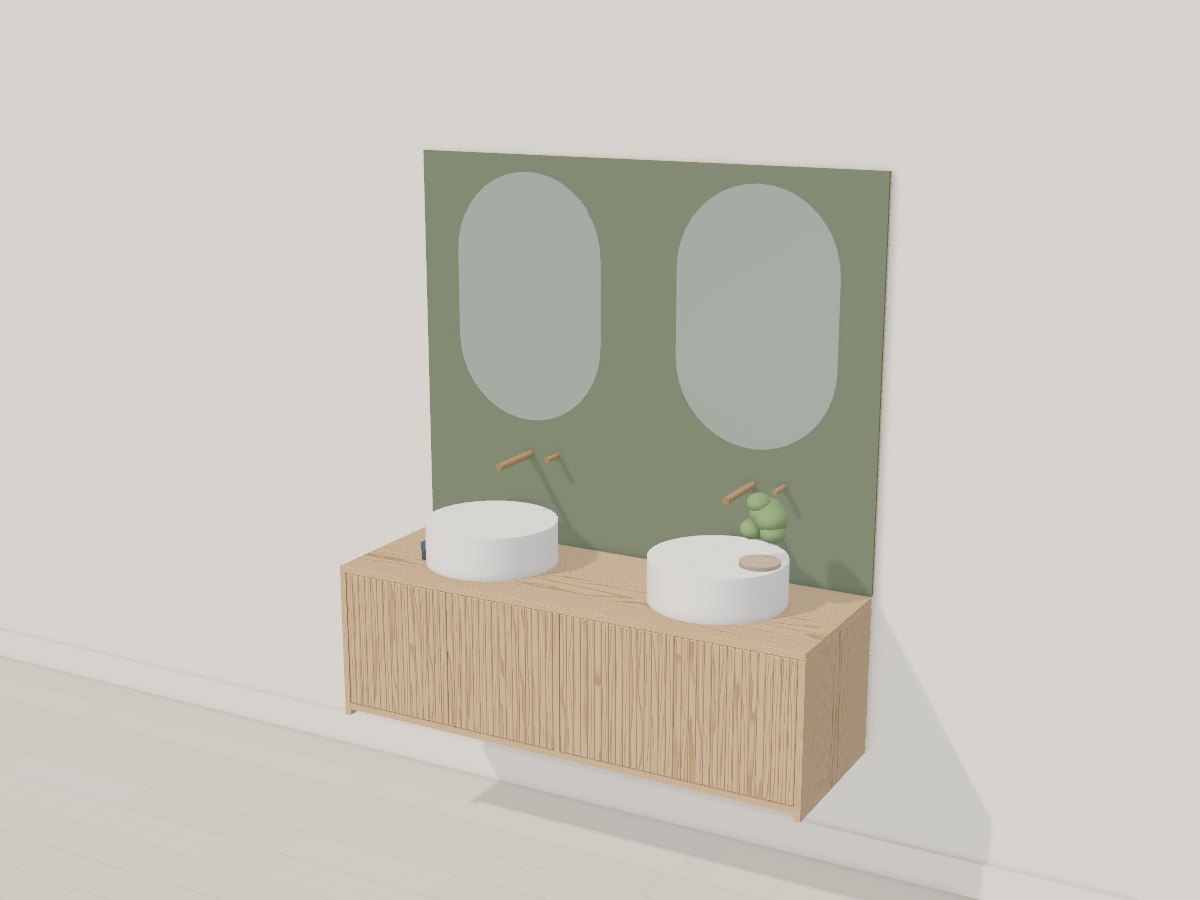

The 3D model
