Ochre cookbook window seat

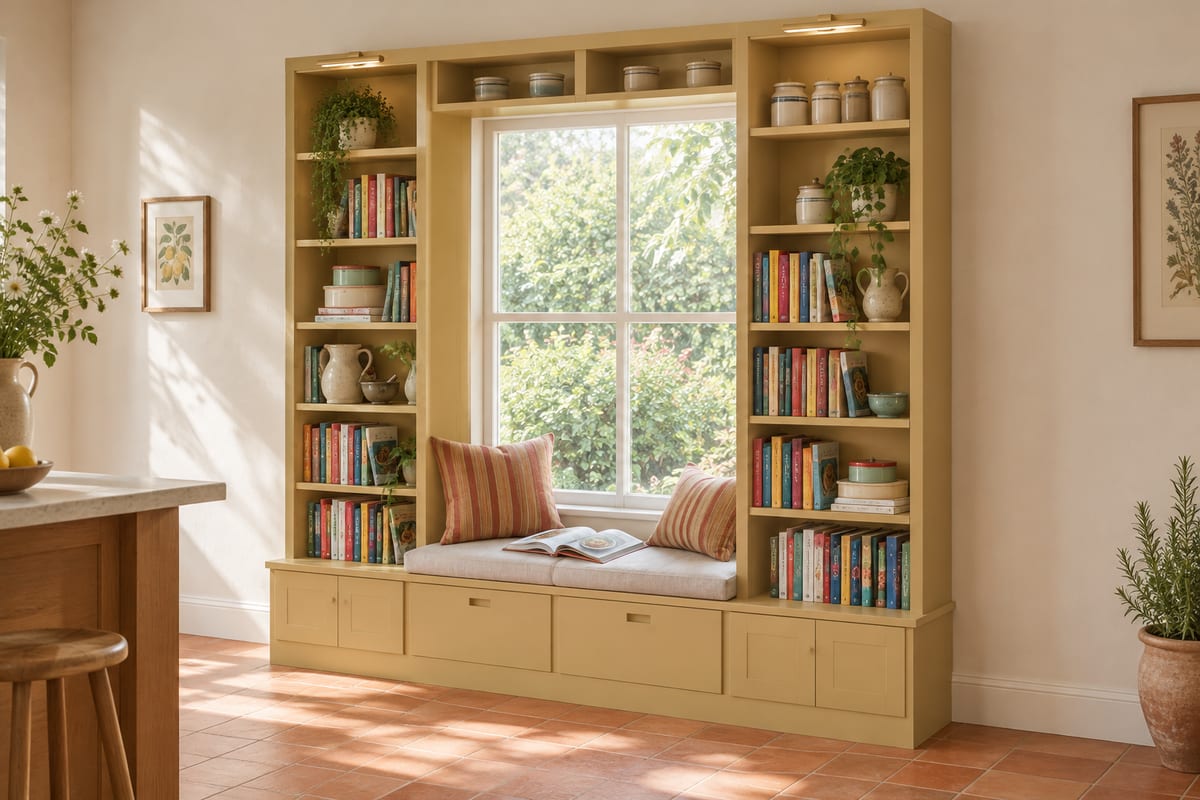

A kitchen window wrapped in ochre built-ins: tall face-framed cookbook shelves either side with brass picture lights, a bridge shelf over the window, and a deep window seat with drawers under an oiled oak bench top and an oatmeal linen cushion.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2600 x 481 x 2550 mm102 3/8" x 18 15/16" x 100 3/8"

Parts to cut

123

Build steps

88

Boards

11

Sheets

9

Solid wood

24.6 bd ft

Weight

213.1 kg470 lb

Materials

• Birch plywood
• Poplar (paint grade)
• MDF
• White oak

Finish

• Finishing oil - Hardwax oil, matt
• Paint - ochre, eggshell

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Pocket-hole jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Window seat cushion, 70mm foam in oatmeal linen, piped
• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 8 x Concealed face-frame hinge, partial overlay
• 4 x Round knob, 30mm, brushed brass
• 4 x Side-mount drawer slide, 400mm
• 2 x Cup pull, 96mm centres, brushed brass
• 2 x Plug-in picture light, brass, 350mm

Cut list

The first 3 of 89 lines, in millimetres (inches below), finished size including joint allowances.

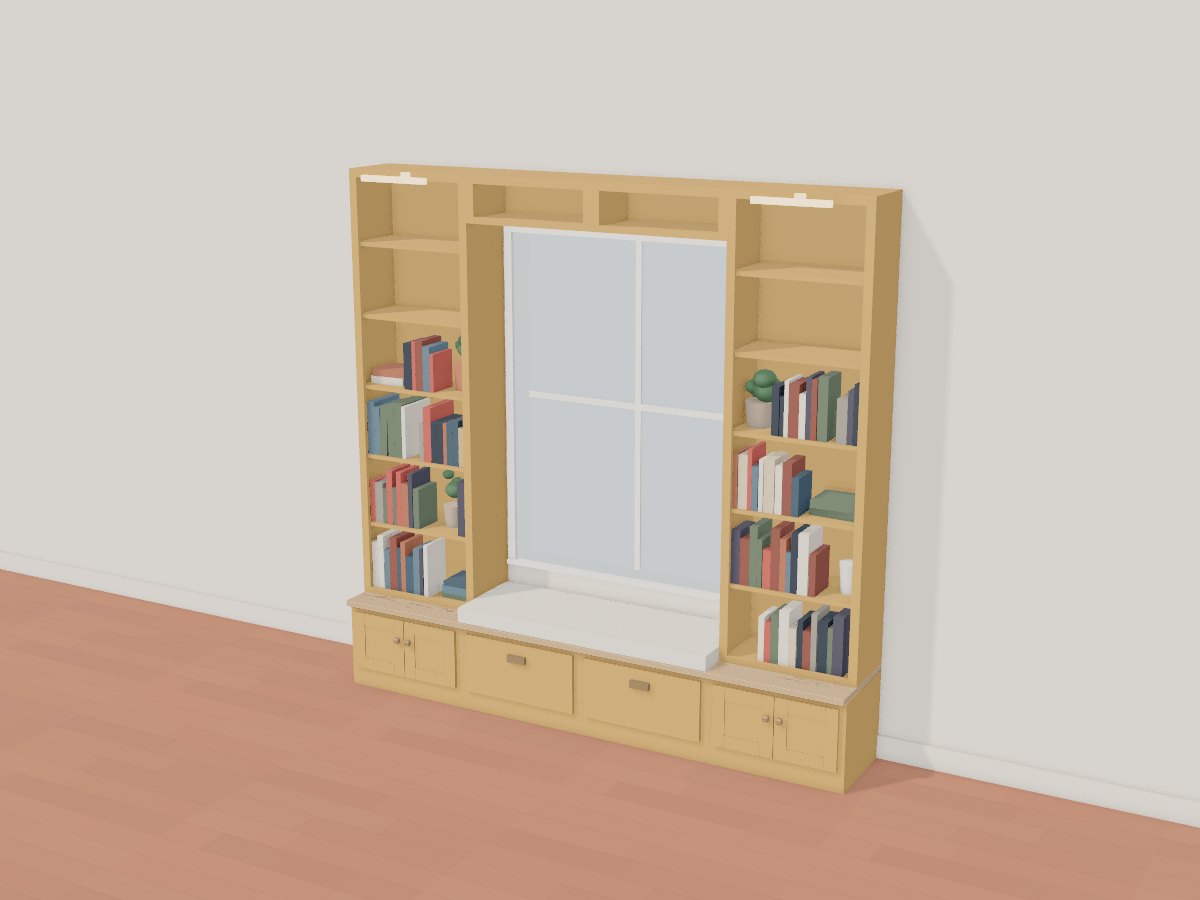

The 3D model
