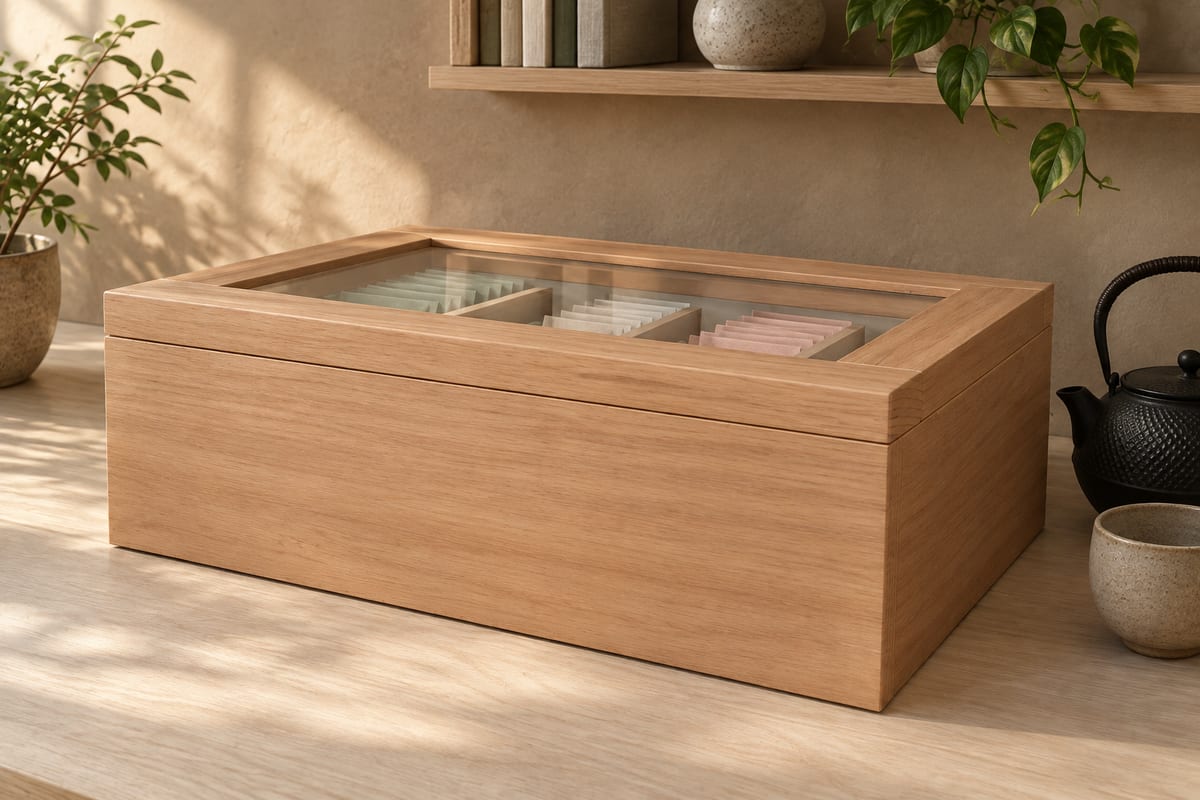

Glass-lidded cherry tea chest
A 300 x 200mm cherry tea chest with a half-lapped egg-crate of thin dividers making eight compartments, and a doweled frame lid round a pane of glass on solid brass hinges. Every tea is in view before the lid lifts, so the right one comes out first time, and loose sachets that used to slump in a cupboard stand in tidy rows; a gift that still looks good on the counter.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 300 x 202 x 96 mm11 13/16" x 7 15/16" x 3 3/4"
- Parts to cut
- 13
- Build steps
- 24
- Boards
- 2
- Solid wood
- 0.8 bd ft
- Weight
- 1.5 kg3 lb
Materials
- Cherry
Finish
- Finishing oil - food-safe hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Table saw
- Clamps
- Chisel
- Dowel jig
- Sandpaper
- Brush
Hardware and fittings
- 1 x Clear toughened glass, 4mm
- 1 x Solid brass box hinges with lid stay
Cut list
The first 3 of 7 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Wall | 300 x 80 x 1011 13/16" x 3 1/8" x 3/8" | Cherry |
| B | 2 | Lid rail | 300 x 30 x 1611 13/16" x 1 3/16" x 5/8" | Cherry |
| C | 1 | Long divider | 296 x 62 x 611 5/8" x 2 7/16" x 1/4" | Cherry |
| +8 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 13 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 24 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

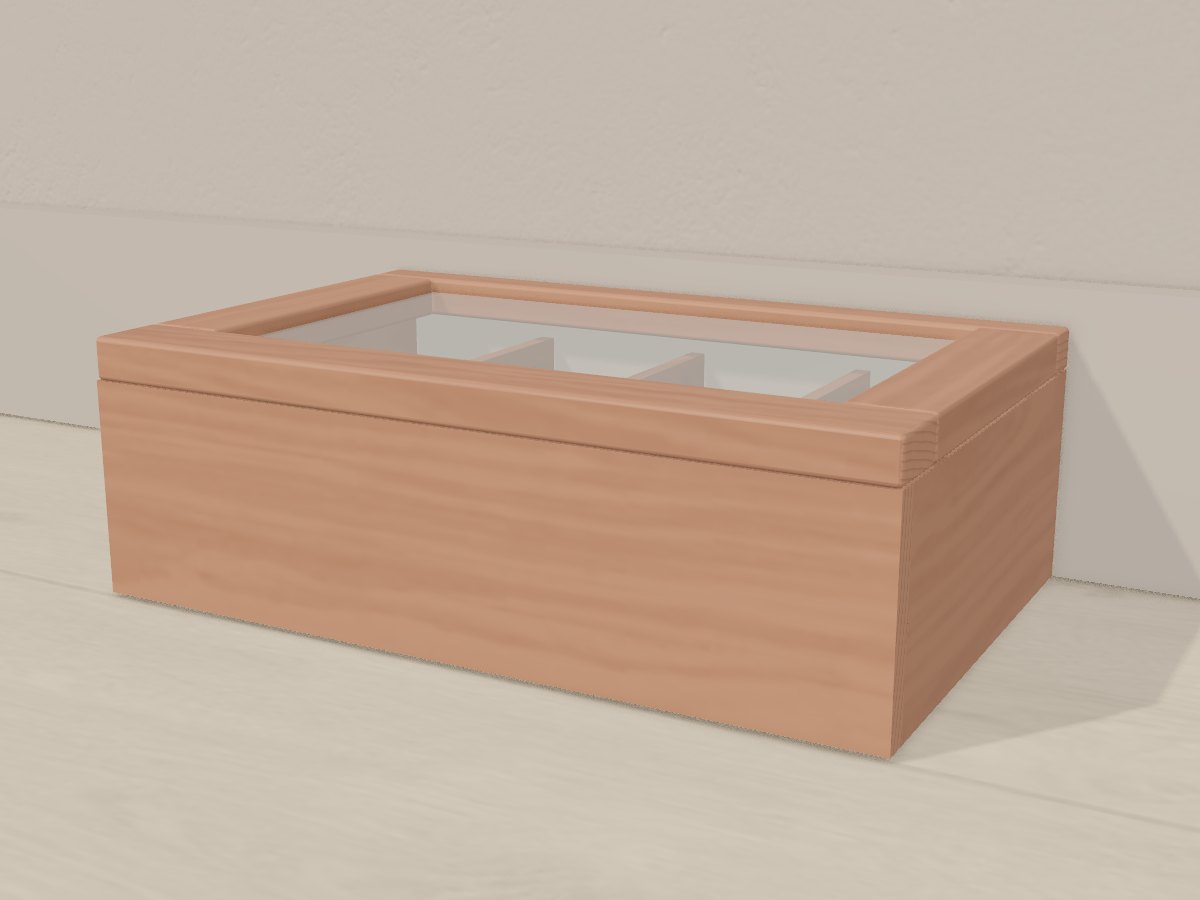

The 3D model
