Stovetop noodle board
A 780 x 560mm maple board between two saffron-yellow painted skirts that stand it 90mm clear of the hob, the planks running front to back like the skirts so the whole board moves together with the seasons. Laid over a cold cooktop it turns the most wasted 0.4 square metres of a small kitchen into worktop for rolling pasta, kneading or serving; the arched skirts leave a hand-hold under each end to lift it off.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 780 x 560 x 115 mm30 11/16" x 22 1/16" x 4 1/2"
- Parts to cut
- 7
- Build steps
- 11
- Boards
- 2
- Solid wood
- 5.5 bd ft
- Weight
- 8.2 kg18 lb
Materials
- Hard maple
- Poplar (paint grade)
Finish
- Paint - saffron yellow, satin
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Sandpaper
- Brush
Cut list
The first 2 of 2 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 5 | Board plank | 560 x 148 x 2522 1/16" x 5 13/16" x 1" | Hard maple |
| B | 2 | Skirt | 560 x 115 x 2022 1/16" x 4 1/2" x 13/16" | Poplar (paint grade) |
Open this design in Crava to see the full cut list and plans - all 7 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 11 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

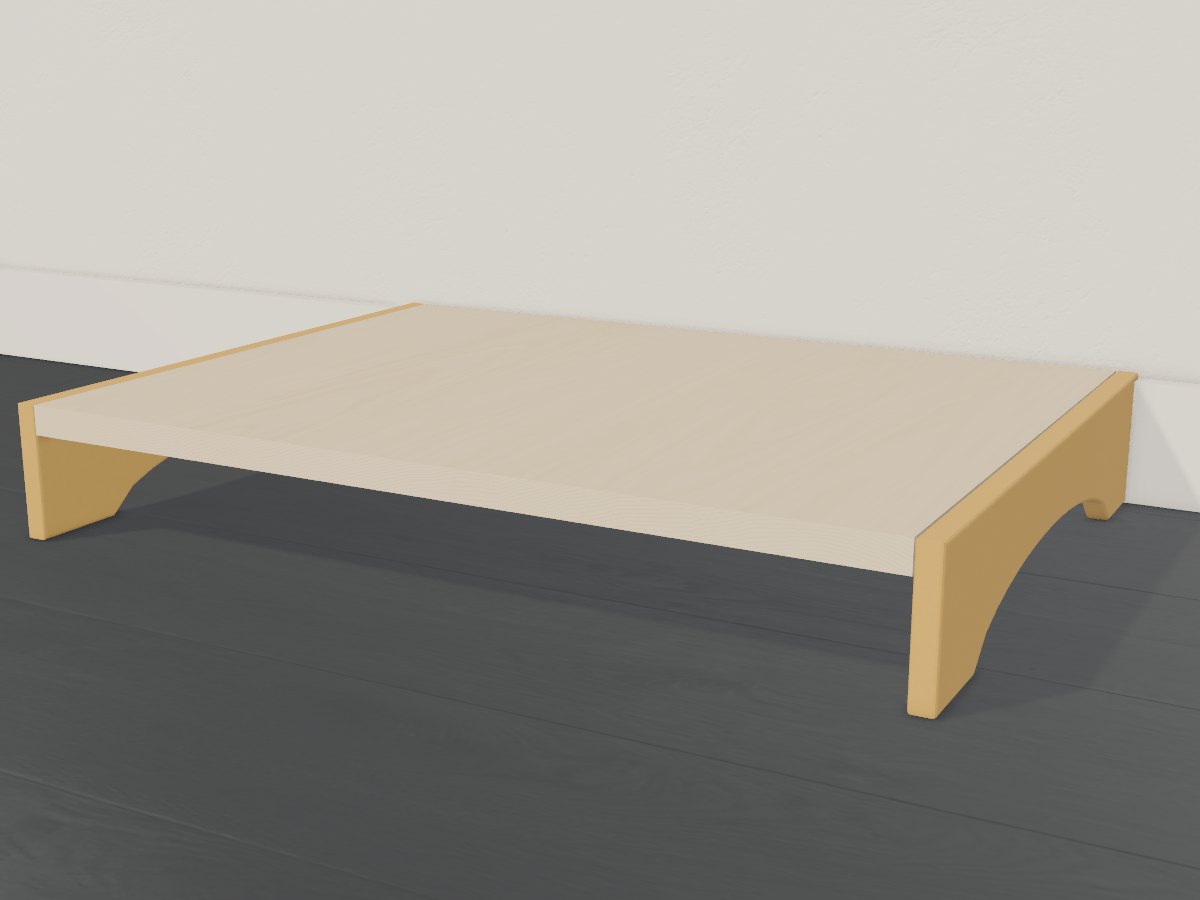

The 3D model
