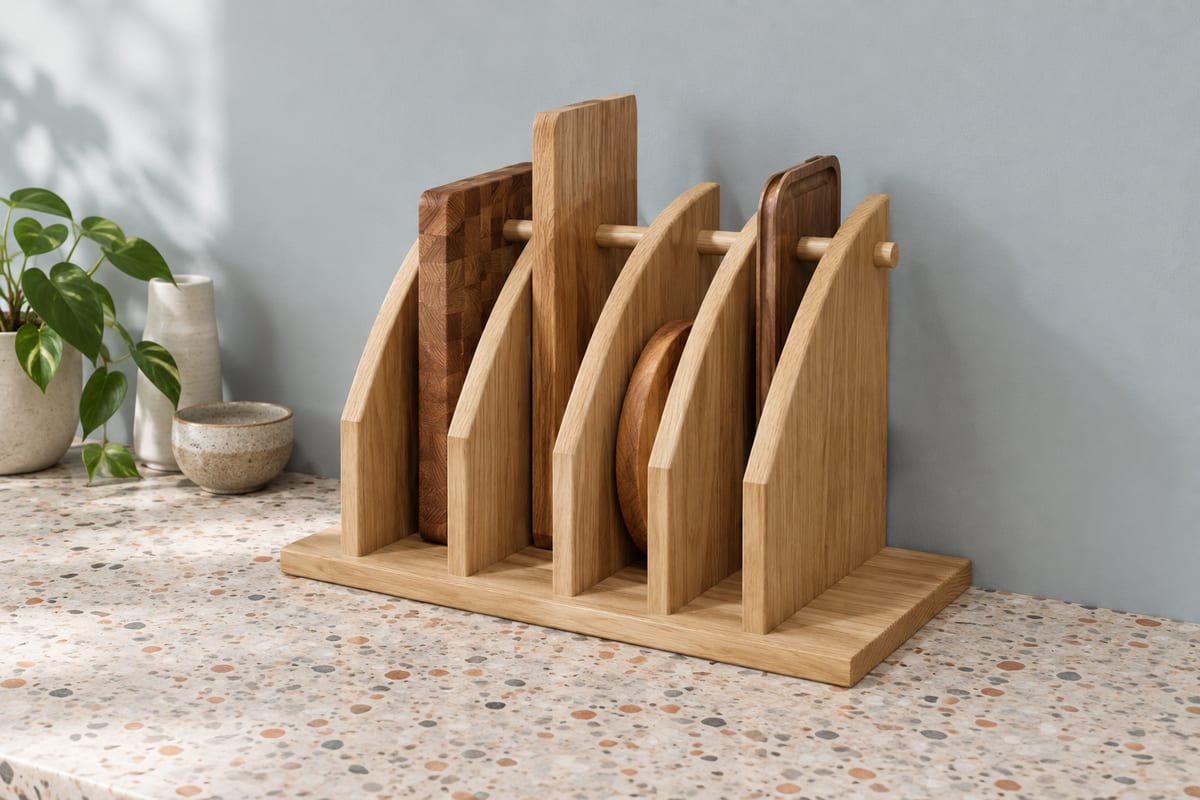

Upright cutting-board rack
A white oak rack with five swept dividers housed in a solid base: two 60mm bays for chunky chopping blocks and two 45mm bays for thin boards and trays, tied together at the back by a through dowel. Boards stand on edge where both faces dry in the air instead of sweating in a stack, and any one lifts straight out without unstacking the rest - four boards in 400mm of counter.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 400 x 220 x 254 mm15 3/4" x 8 11/16" x 10"
- Parts to cut
- 7
- Build steps
- 9
- Boards
- 3
- Solid wood
- 2.3 bd ft
- Weight
- 3.5 kg8 lb
Materials
- White oak
Finish
- Finishing oil - food-safe hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Cut list
The first 3 of 3 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Base | 400 x 220 x 2015 3/4" x 8 11/16" x 13/16" | White oak |
| B | 1 | Tie dowel | 305 x 16 x 1612" x 5/8" x 5/8" | White oak |
| C | 5 | Divider | 246 x 200 x 159 11/16" x 7 7/8" x 9/16" | White oak |
Open this design in Crava to see the full cut list and plans - all 7 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 9 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

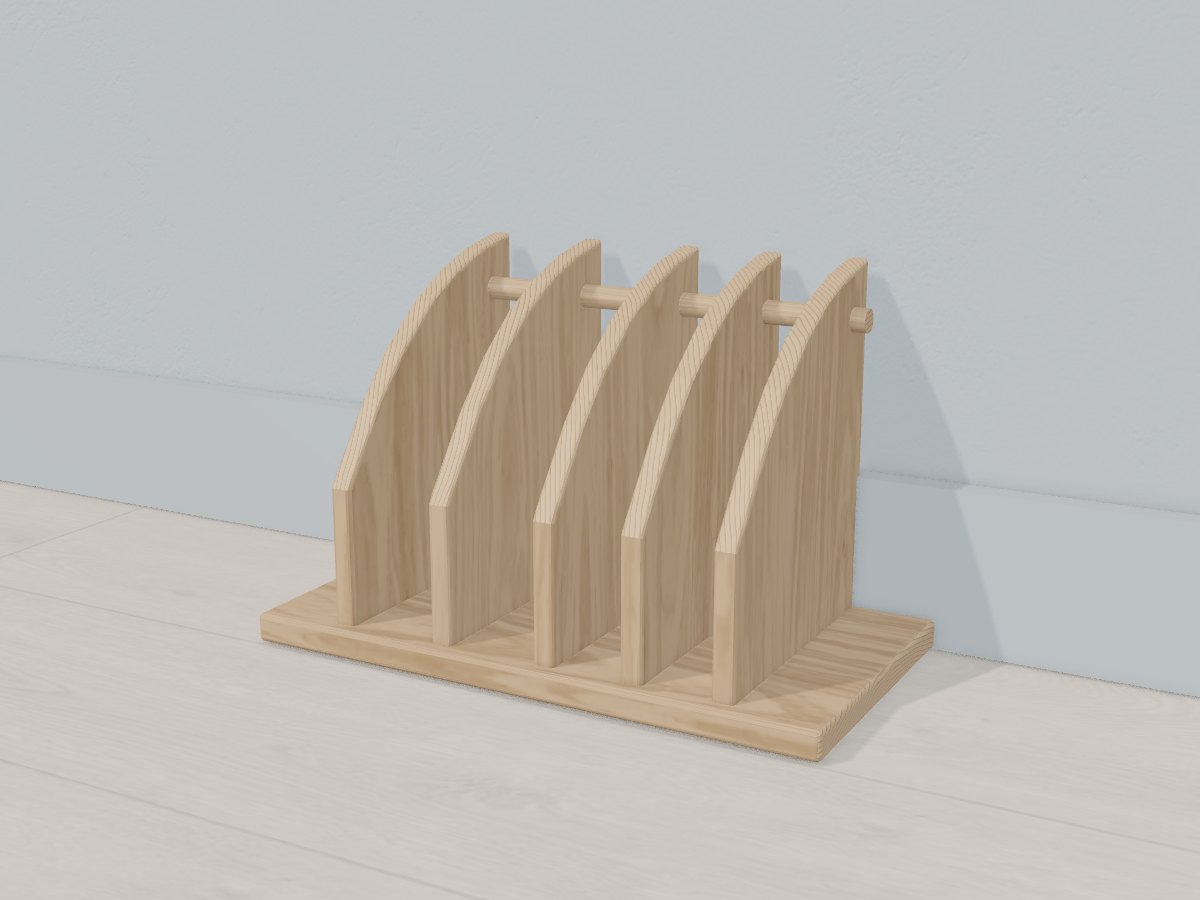

The 3D model
