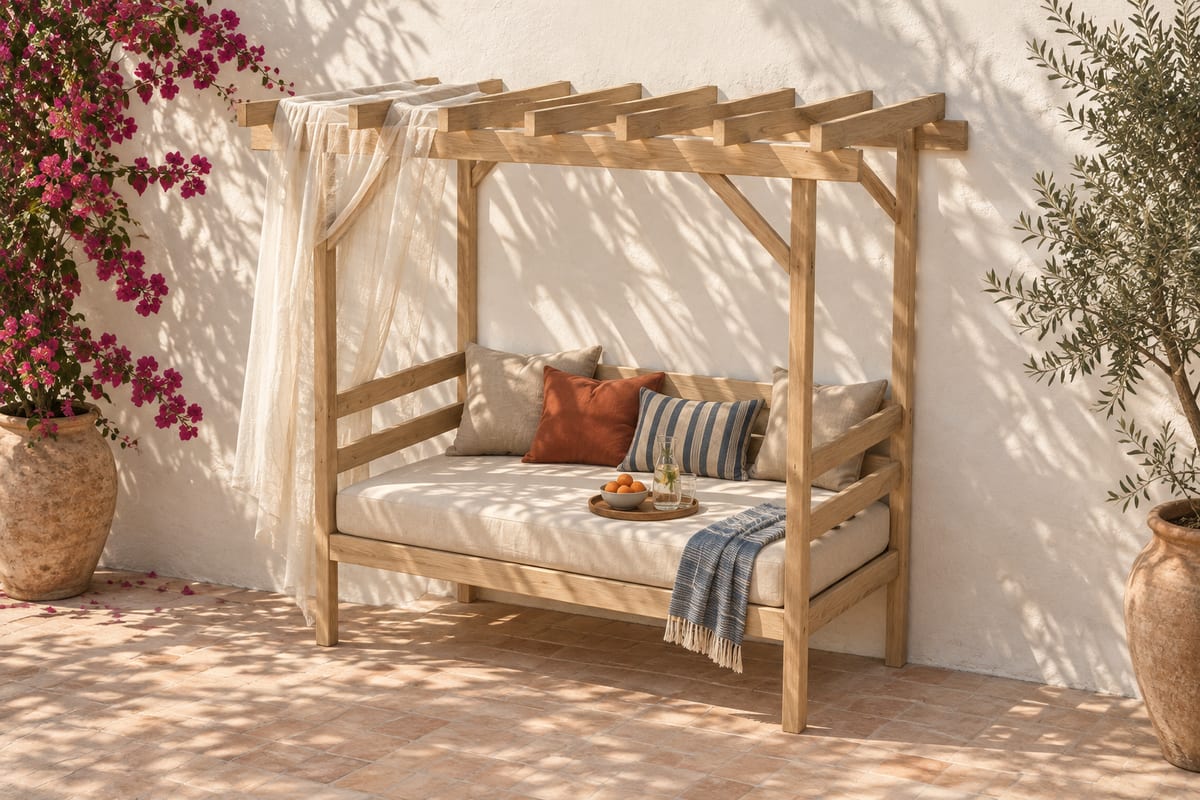

Oak pergola daybed
A 2.1m daybed in oiled white oak with its own pergola: four posts carry a slatted bed for a full-size outdoor mattress, a low back and end rails to lean on, and knee-braced beams and rafters overhead that filter the sun and take a canvas or a climbing vine - a shaded room to nap in on a terrace with no tree.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2500 x 1370 x 2220 mm98 7/16" x 53 15/16" x 87 3/8"
- Parts to cut
- 45
- Build steps
- 26
- Boards
- 23
- Solid wood
- 88 bd ft
- Weight
- 243.8 kg537 lb
Materials
- White oak
Finish
- Finishing oil - Exterior hardwood oil, natural, matte
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Outdoor daybed mattress, quick-dry foam in a natural canvas cover, about 1950 x 1020 x 150mm
Cut list
The first 3 of 14 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Beam | 2500 x 145 x 4598 7/16" x 5 11/16" x 1 3/4" | White oak |
| B | 4 | Post | 2100 x 70 x 4582 11/16" x 2 3/4" x 1 3/4" | White oak |
| C | 2 | Bed rail | 2010 x 100 x 3079 1/8" x 3 15/16" x 1 3/16" | White oak |
| +37 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 45 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 26 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

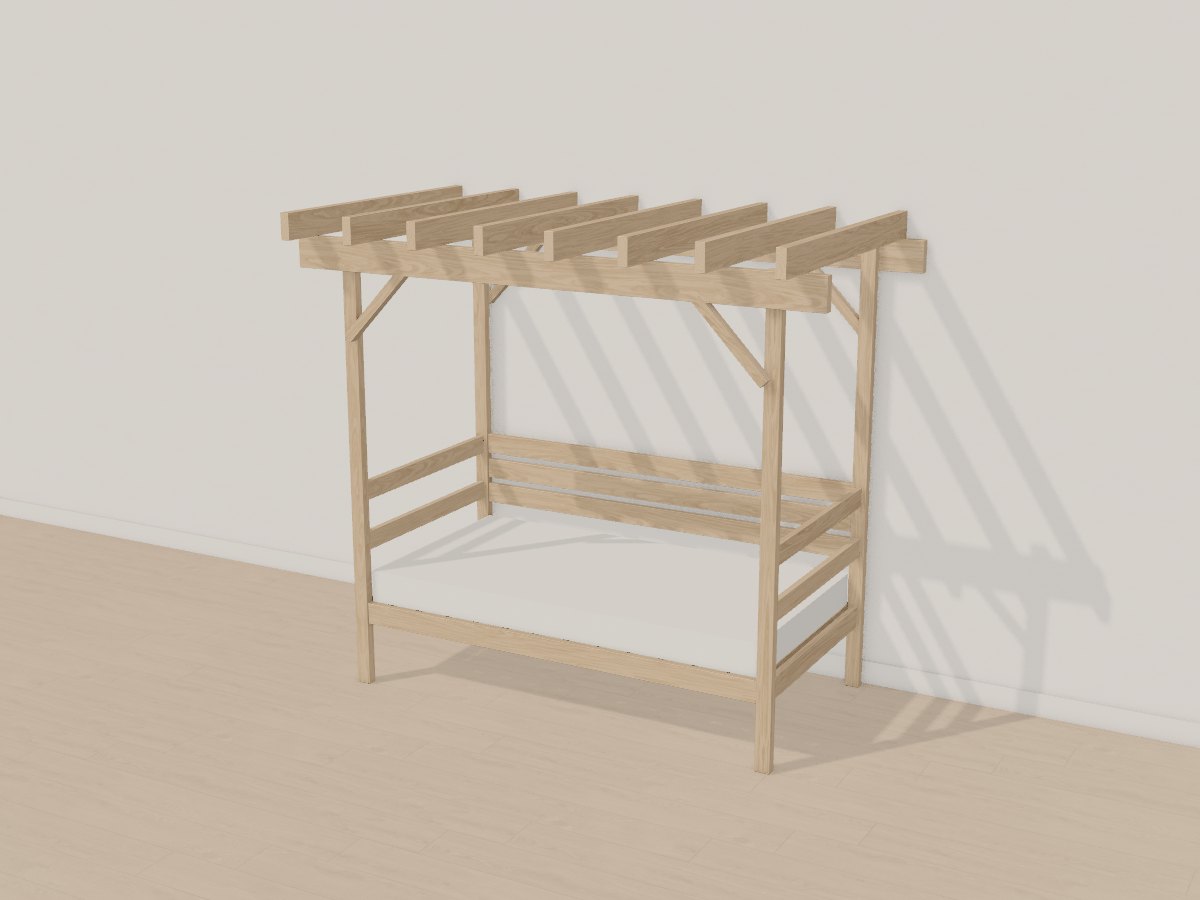

The 3D model
