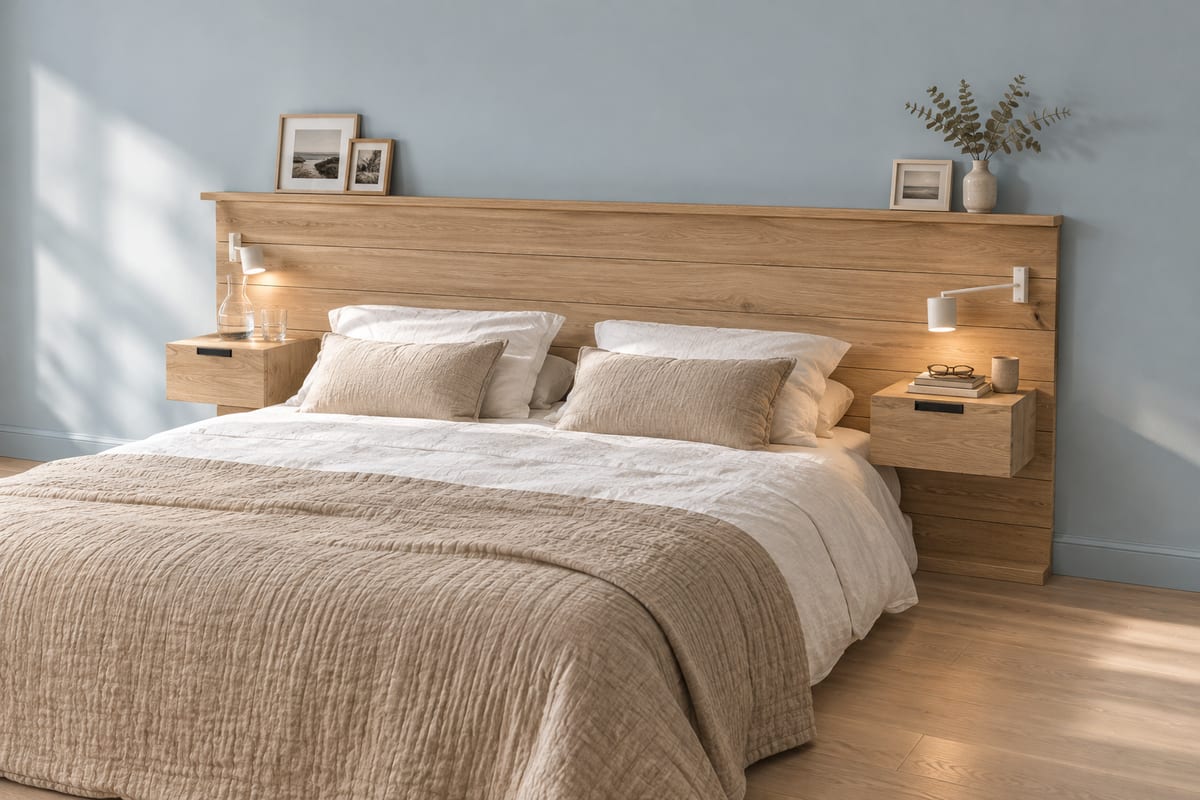

Oak plank headboard wall with floating nightstands

A wall-to-wall headboard of wide oiled oak planks with shadow gaps, on furring battens into the studs and a pine sole plate faced in oak, capped by a ledge for a glass of water and a book. Two oak nightstands with a drawer each hang on French cleats either side of the bed, so the floor under them stays clear for slippers and the vacuum, and two black swing-arm lights are screwed to the planks above them.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2940 x 430 x 1230 mm115 3/4" x 16 15/16" x 48 7/16"

Parts to cut

43

Build steps

38

Boards

17

Sheets

3

Solid wood

48.8 bd ft

Weight

110.6 kg244 lb

Materials

• White oak
• Birch plywood
• Pine (eastern white)

Finish

• Finishing oil - Hardwax oil, matt

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Table saw
• Clamps
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 4 x Side-mount drawer slide, 300mm
• 2 x Edge pull, 150mm, matt black
• 2 x Plug-in swing-arm reading light, matt black

Cut list

The first 3 of 22 lines, in millimetres (inches below), finished size including joint allowances.

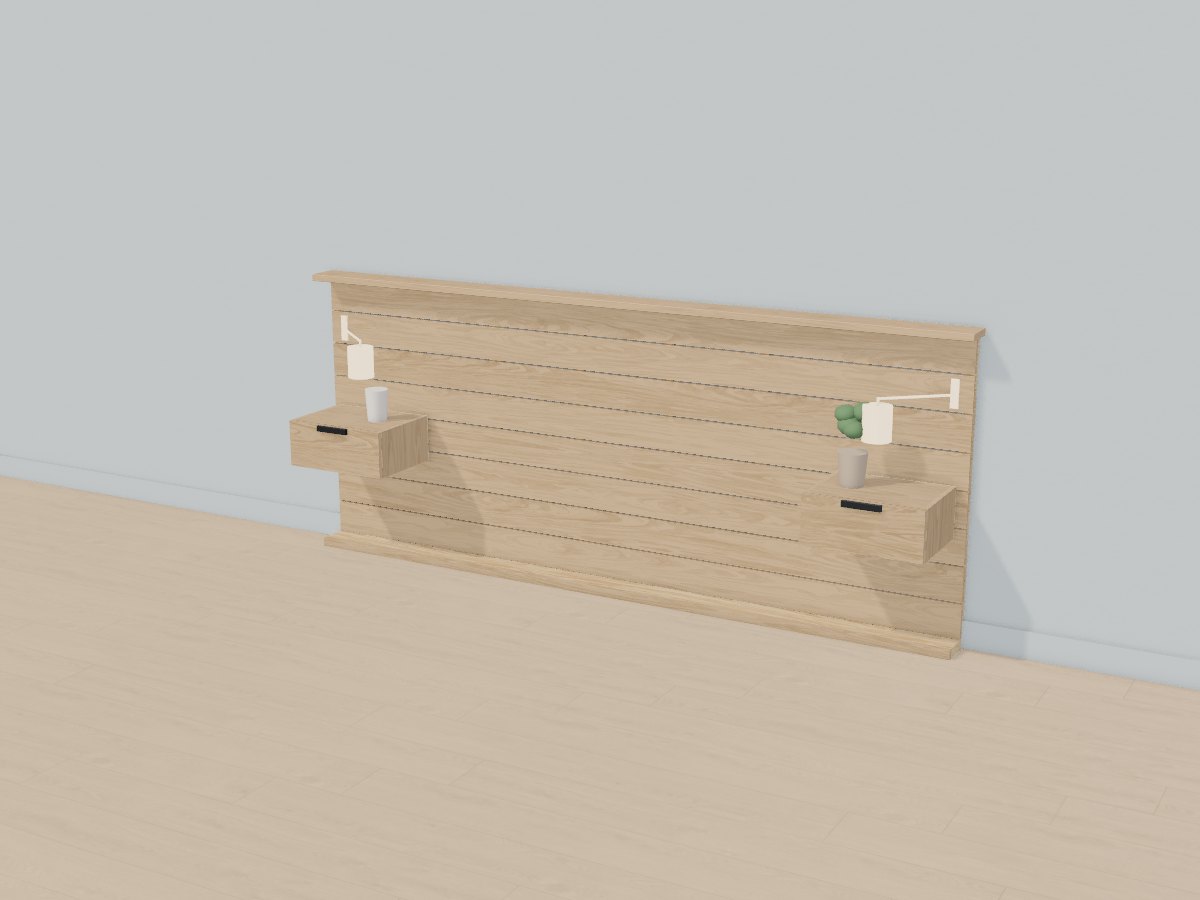

The 3D model
