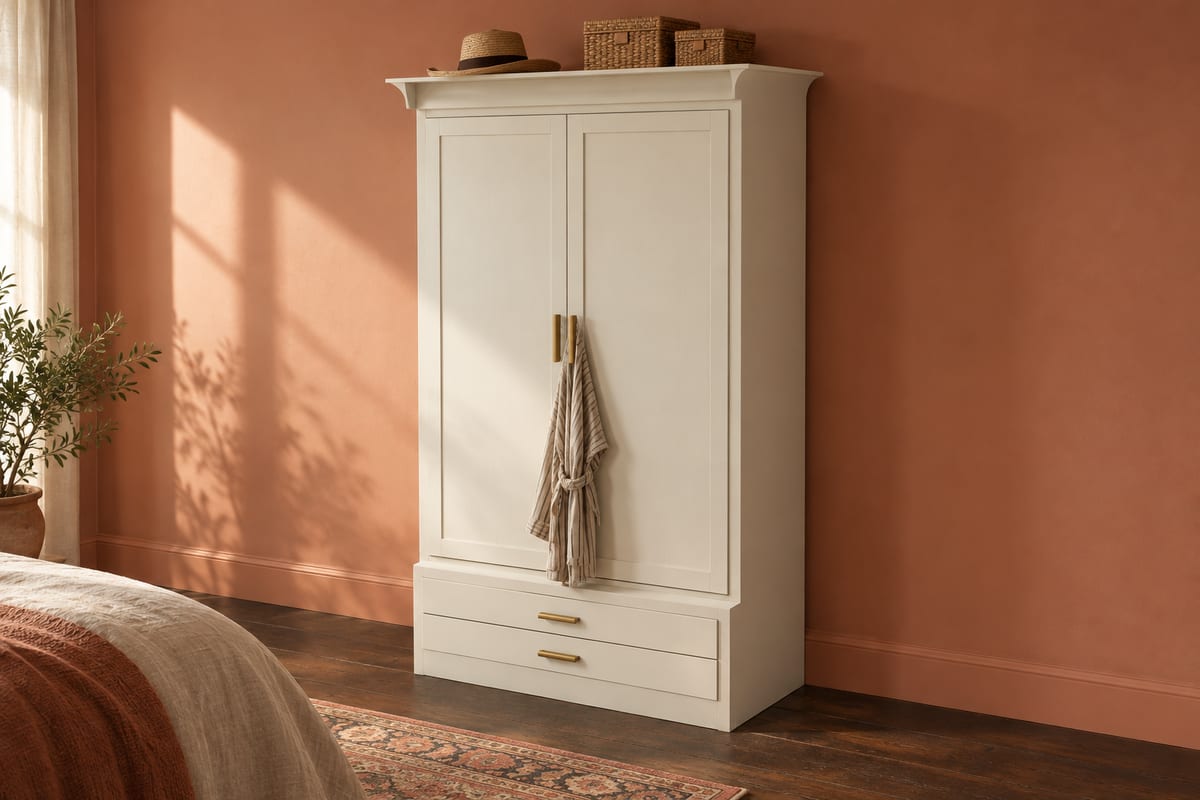

Putty linen press armoire

A tall armoire in the old linen-press shape: a deep two-drawer chest at the bottom, and above it a slightly shallower wardrobe behind a pair of full-height Shaker doors, with a hat shelf and a long brass-finished hanging rail inside. Painted warm putty, with a face frame, a cove crown and brass bar pulls, and fixed to the wall at the top.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1340 x 715 x 2200 mm52 3/4" x 28 1/8" x 86 5/8"

Parts to cut

50

Build steps

69

Boards

6

Sheets

8

Solid wood

8.2 bd ft

Weight

139.9 kg308 lb

Materials

• Birch plywood
• Poplar (paint grade)
• MDF

Finish

• Paint - warm putty, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Pocket-hole jig
• Table saw
• Chisel
• Sandpaper
• Brush

Hardware and fittings

• 1 x Wardrobe rail, 25mm round steel tube, antique brass finish
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 4 x Side-mount drawer slide, 600mm
• 4 x Bar pull, 128mm centres, brushed brass
• 8 x Concealed face-frame hinge, partial overlay
• 1 x Cove crown moulding, 100mm

Cut list

The first 3 of 36 lines, in millimetres (inches below), finished size including joint allowances.

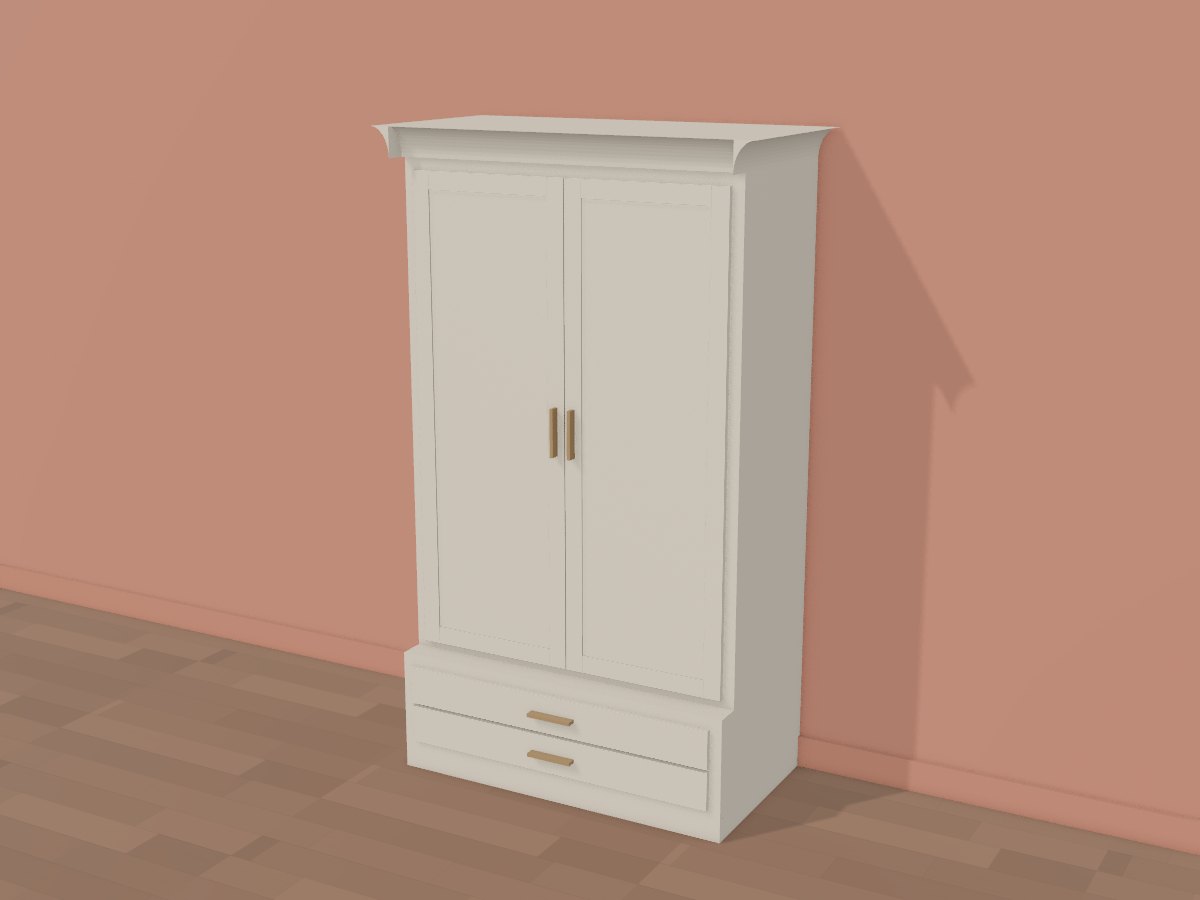

The 3D model
