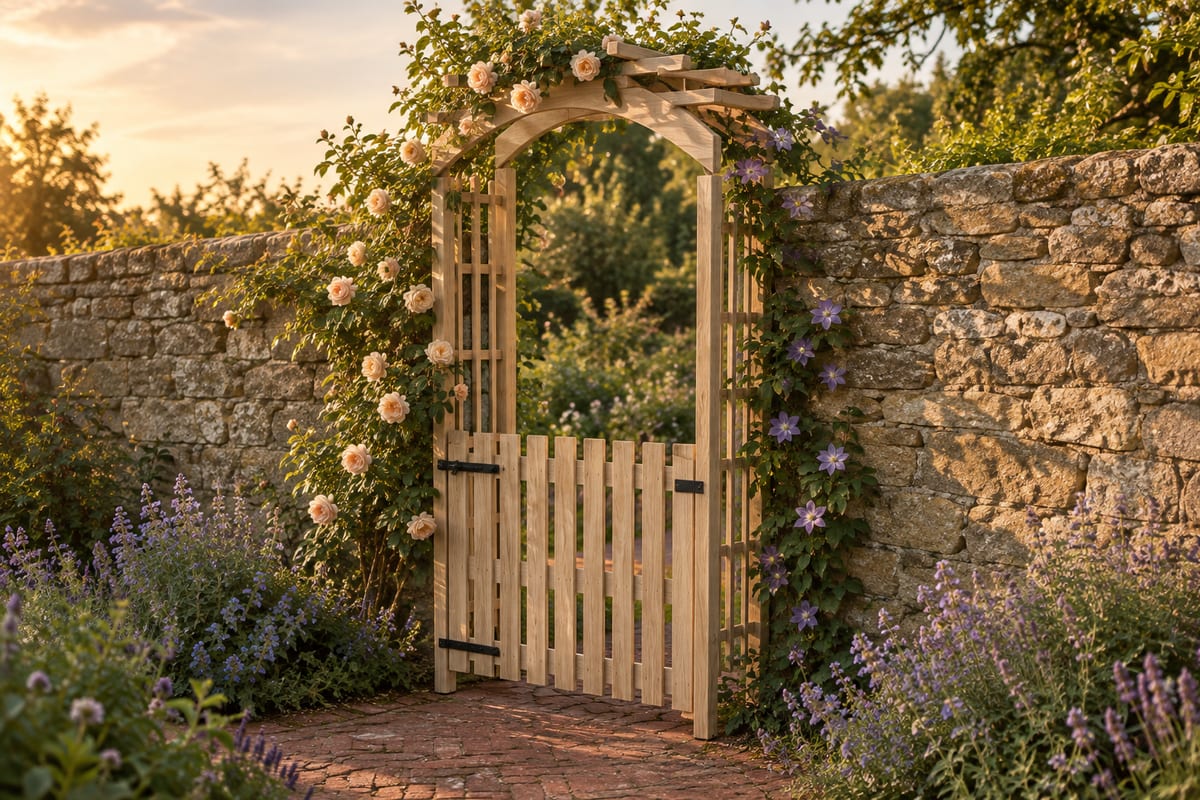

Oak arched garden gateway

A white oak arch for the end of a path: two trellised sides 520mm deep on four bolt-down posts, sawn arched beams carrying seven purlins for a rose or a clematis to cross over, and a picket gate with a softly arched top that keeps a dog in without walling the garden off - the frame becomes a room you walk through.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1102 x 680 x 2528 mm43 3/8" x 26 3/4" x 99 9/16"

Parts to cut

46

Build steps

32

Boards

18

Solid wood

36.7 bd ft

Weight

56.3 kg124 lb

Materials

• White oak

Finish

• Finishing oil - Exterior hardwood oil, natural, matte

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 4 x Bolt-down post anchor shoe for a 45 x 70mm post
• 2 x Black hook-and-band gate hinge, 250mm
• 1 x Black thumb latch for a garden gate

Cut list

The first 3 of 16 lines, in millimetres (inches below), finished size including joint allowances.

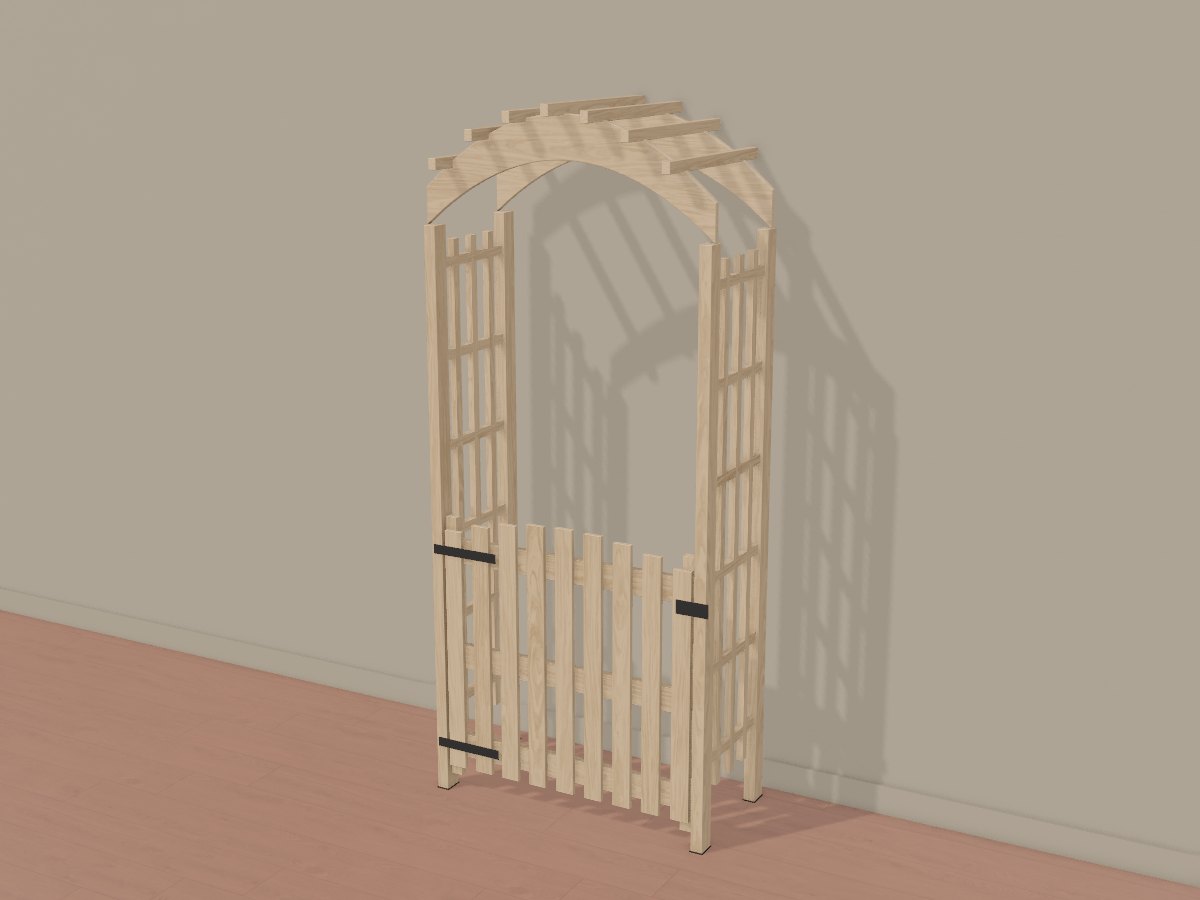

The 3D model
