Anthracite twin bin store

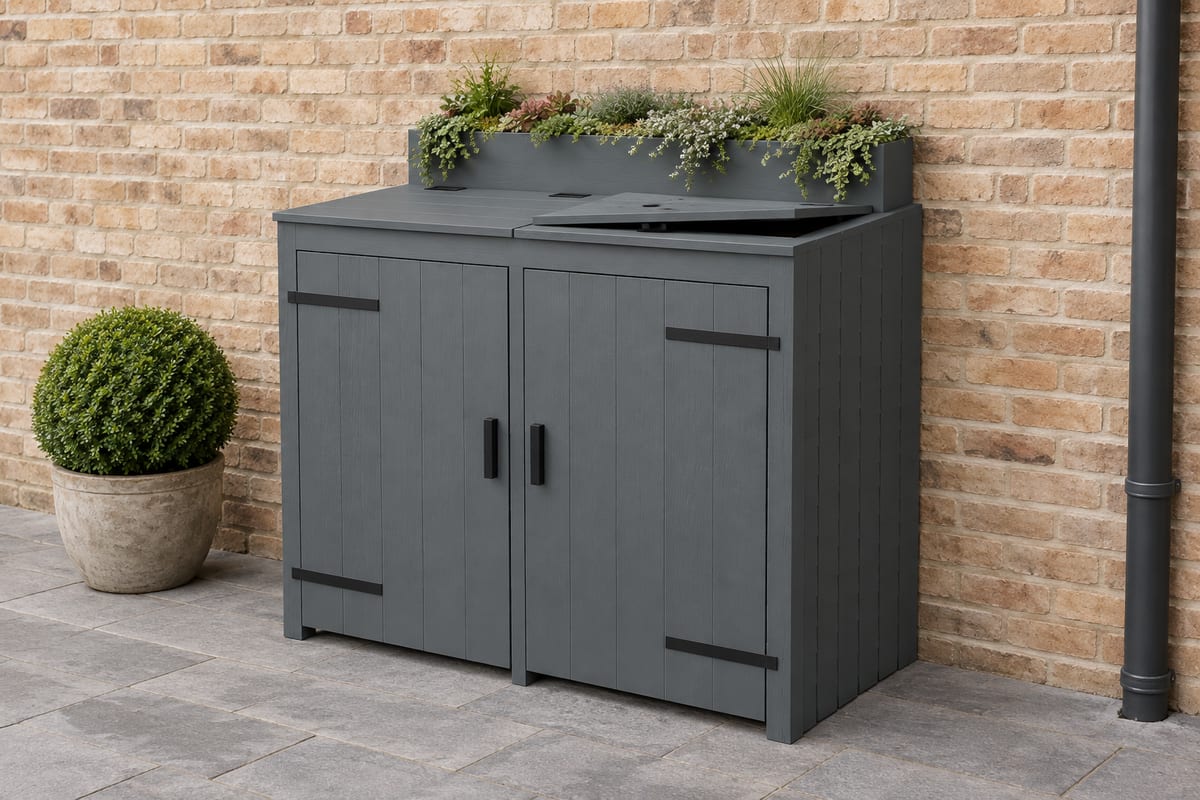

A store for two 240-litre wheelie bins in anthracite-painted boards: each bay has a lid that lifts to drop a bag in without opening the doors, ledged doors that swing wide to wheel the bin out on collection day, and a fixed rear deck carrying a planting trough, so the front of the house sees thyme and sedum instead of bins.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1500 x 905 x 1412 mm59 1/16" x 35 5/8" x 55 9/16"
- Parts to cut
- 92
- Build steps
- 41
- Boards
- 35
- Solid wood
- 88.1 bd ft
- Weight
- 117.3 kg259 lb
Materials
- Pine (eastern white)
Finish
- Paint - exterior anthracite grey, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Woven planter liner, about 1400 x 175 x 125mm
- 4 x Black tee hinge, 150mm
- 4 x Black tee hinge, 300mm
- 2 x Black D-handle pull, 150mm
Cut list
The first 3 of 32 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 3 | Deck board | 1480 x 78 x 2258 1/4" x 3 1/16" x 7/8" | Pine (eastern white) |
| B | 1 | Deck bearer | 1444 x 70 x 2256 7/8" x 2 3/4" x 7/8" | Pine (eastern white) |
| C | 2 | Trough | 1440 x 170 x 1856 11/16" x 6 11/16" x 11/16" | Pine (eastern white) |
| +86 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 92 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 41 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

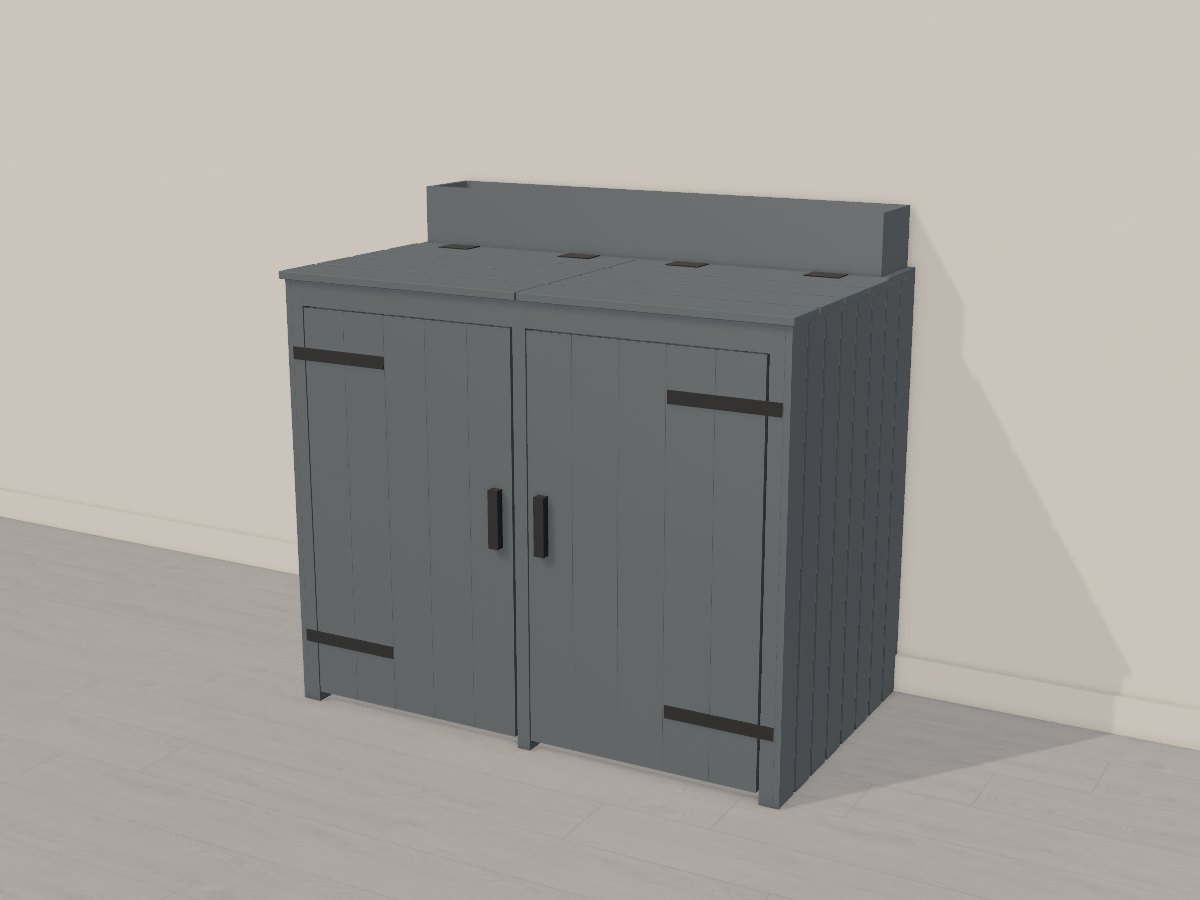

The 3D model
