Navy kitchen dresser
A painted dresser for a kitchen wall: drawers and shaker cupboards below a maple worktop, open plate shelves above with picture lights, a face frame and a cove crown.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1926 x 480 x 2250 mm75 13/16" x 18 7/8" x 88 9/16"
- Parts to cut
- 90
- Build steps
- 101
- Boards
- 8
- Sheets
- 9
- Solid wood
- 11.6 bd ft
- Weight
- 168.8 kg372 lb
Materials
- Birch plywood
- Poplar (paint grade)
- MDF
Finish
- Paint - deep navy, eggshell
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Pocket-hole jig
- Table saw
- Chisel
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 6 x Side-mount drawer slide, 400mm
- 3 x Plug-in picture light, brass, 300mm
- 4 x Concealed face-frame hinge, partial overlay
- 1 x Cove crown moulding, 90mm
Cut list
The first 3 of 62 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Shelves left - Side | 1370 x 275 x 1853 15/16" x 10 13/16" x 11/16" | Birch plywood |
| B | 1 | Shelves left - Back | 1370 x 600 x 653 15/16" x 23 5/8" x 1/4" | Birch plywood |
| C | 2 | Shelves right - Side | 1370 x 275 x 1853 15/16" x 10 13/16" x 11/16" | Birch plywood |
| +85 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 90 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 101 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

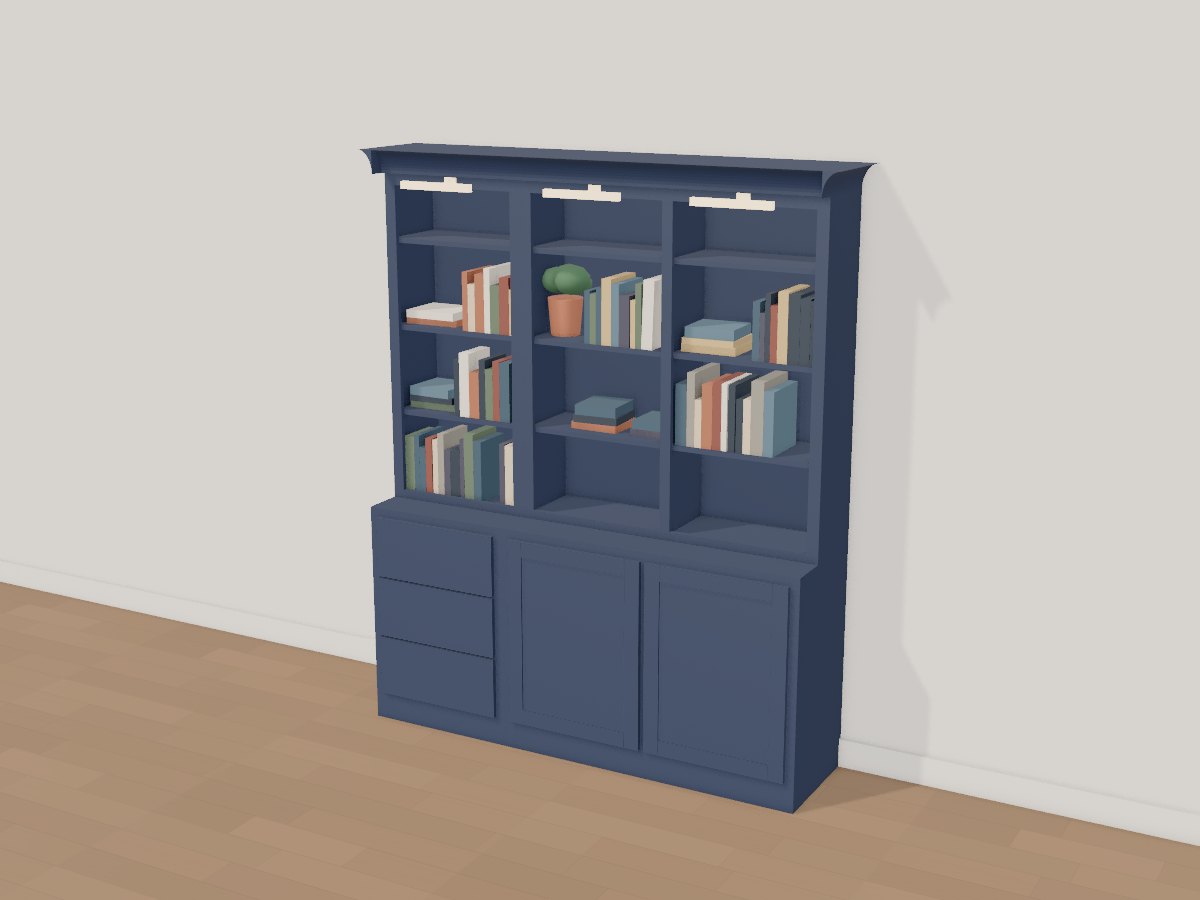

The 3D model
