Two-person study wall
A four-metre study wall for two in soft mushroom: a walnut desk each side of a central cupboard and lit bookcase, each with its own drawer pedestal, handle-free push-to-open cupboards overhead with a warm light strip beneath, and a black swing-arm lamp reaching over each desk from the bookcase.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 4000 x 652 x 2400 mm157 1/2" x 25 11/16" x 94 1/2"
- Parts to cut
- 116
- Build steps
- 93
- Boards
- 4
- Sheets
- 14
- Solid wood
- 27.2 bd ft
- Weight
- 371.8 kg820 lb
Materials
- Birch plywood
- MDF
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
- Paint - mushroom, eggshell
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Table saw
- Chisel
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 2 x Plug-in LED strip kit, 12V, 2700K, in an aluminium channel with frosted diffuser
- 12 x Side-mount drawer slide, 550mm
- 8 x Bar pull, 128mm centres, matt black
- 20 x Concealed cabinet hinge, full overlay
- 1 x Plug-in LED strip kit, 12V, warm white 2700K
- 2 x Plug-in swing-arm reading light, matt black
Cut list
The first 3 of 88 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tower shelves - Side | 1650 x 334 x 2464 15/16" x 13 1/8" x 15/16" | Birch plywood |
| B | 1 | Tower shelves - Back | 1650 x 1000 x 664 15/16" x 39 3/8" x 1/4" | Birch plywood |
| C | 1 | Tower shelves - Divider | 1618 x 334 x 2463 11/16" x 13 1/8" x 15/16" | Birch plywood |
| +112 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 116 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 93 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

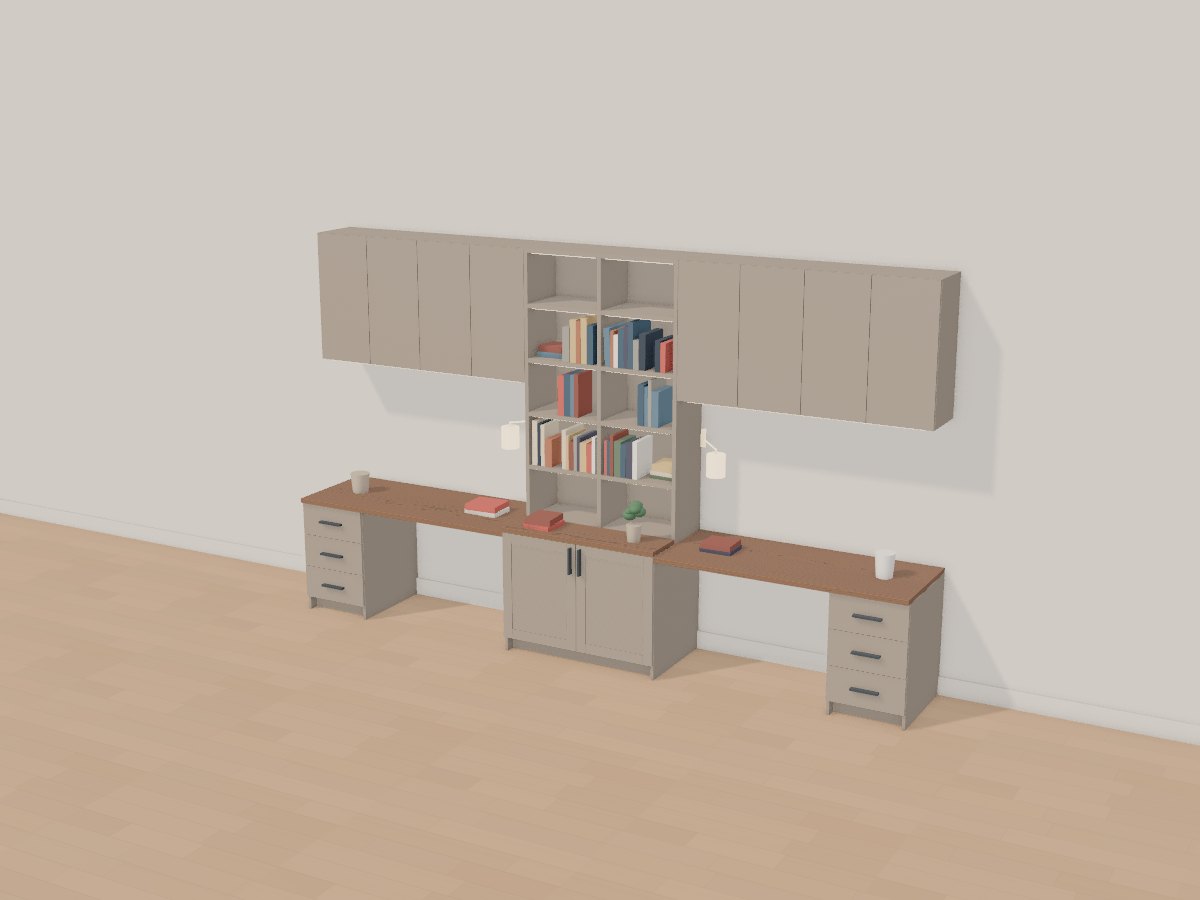

The 3D model
