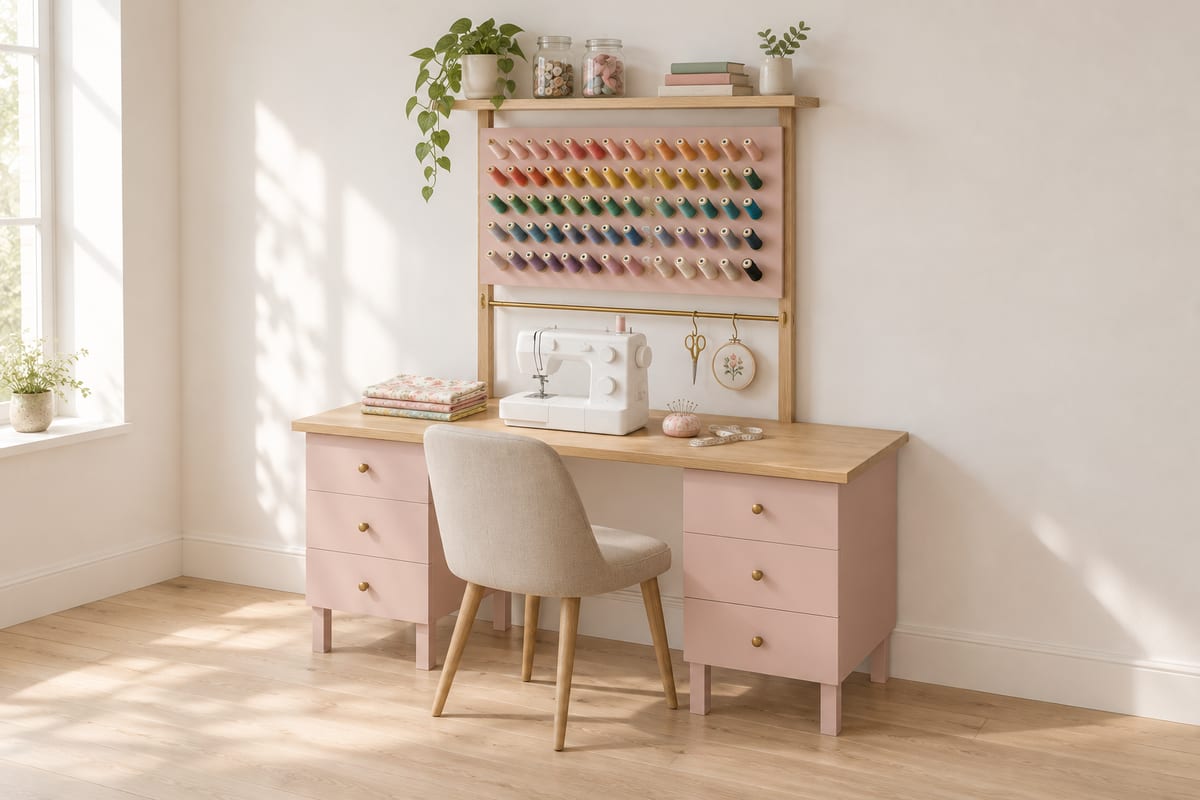

Blush sewing table
A generous sewing table with a thick oiled oak top on two dusty-blush drawer pedestals raised on slim square legs. At the back, oak uprights hold a blush spool board with fifty-five maple pegs for thread, a brass rail for scissors and a shelf of glass jars over it all.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1700 x 640 x 1755 mm66 15/16" x 25 3/16" x 69 1/8"
- Parts to cut
- 59
- Build steps
- 42
- Boards
- 5
- Sheets
- 5
- Solid wood
- 17.3 bd ft
- Weight
- 116.1 kg256 lb
Materials
- Birch plywood
- White oak
- MDF
Finish
- Finishing oil - Hardwax oil, matt
- Paint - dusty blush, eggshell
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 1 x Brass hanging rail, 12mm, with end brackets and S-hooks
- 55 x Maple dowel, 10mm, cut into 70mm spool pegs
- 12 x Side-mount drawer slide, 500mm
- 6 x Round knob, 30mm, brushed brass
Cut list
The first 3 of 38 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Spool board | 940 x 560 x 1837" x 22 1/16" x 11/16" | Birch plywood |
| B | 2 | Ped left - Side | 550 x 556 x 1821 5/8" x 21 7/8" x 11/16" | Birch plywood |
| C | 1 | Ped left - Back | 550 x 420 x 621 5/8" x 16 9/16" x 1/4" | Birch plywood |
| +55 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 59 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 42 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

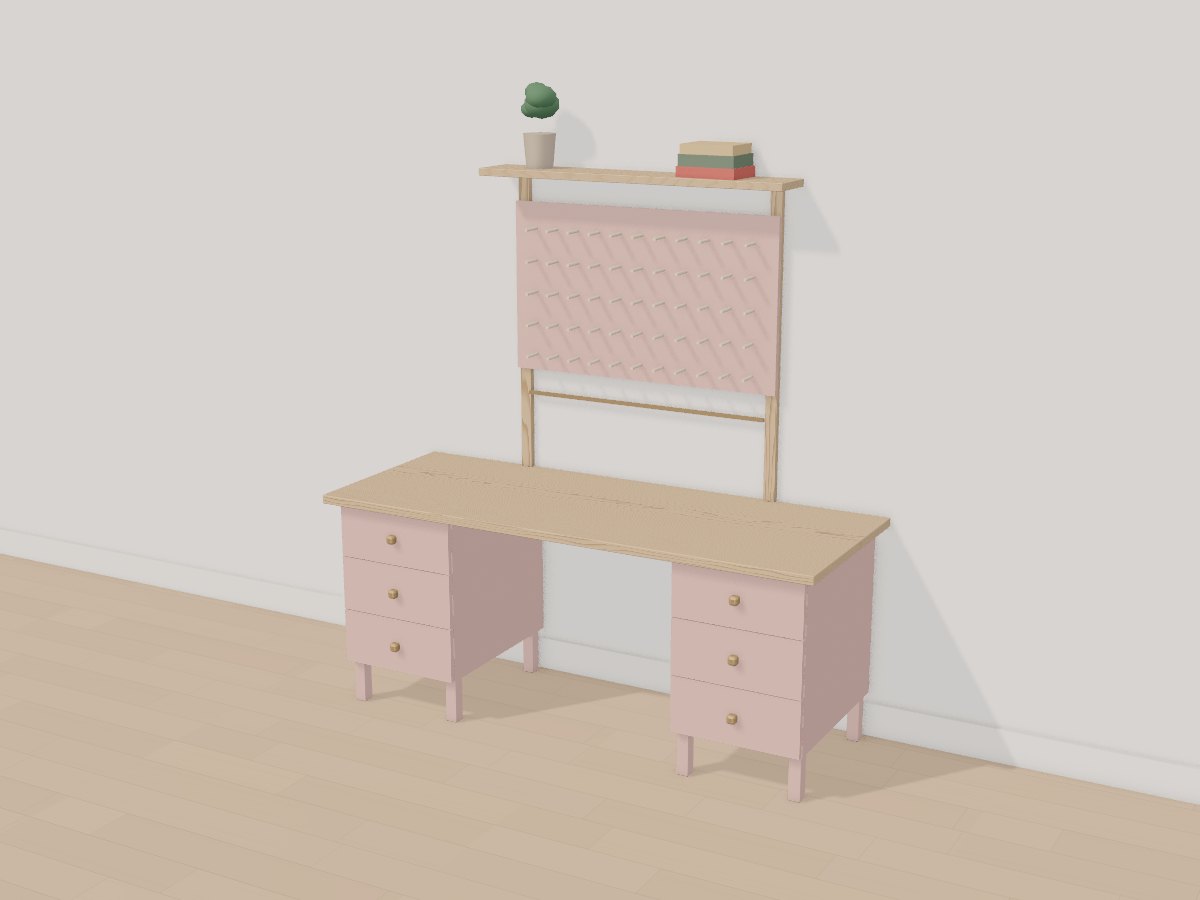

The 3D model
