Cherry alcove nook desk
A wall-to-wall cherry desk that turns a 1100mm alcove or a closet with its doors off into a study: a 32mm top on cleats with no legs to bang into, a drawer hung under one end, clear of your knees, an ink-plum backboard carrying a linen pinboard and two floating shelves with a warm light under the lower one. It uses the dead recess beside a chimney breast and leaves the room's floor exactly as it was.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1100 x 560 x 1262 mm43 5/16" x 22 1/16" x 49 11/16"
- Parts to cut
- 17
- Build steps
- 33
- Boards
- 5
- Sheets
- 2
- Solid wood
- 20.9 bd ft
- Weight
- 45.1 kg99 lb
Materials
- Cherry
- Birch plywood
Finish
- Finishing oil - Hardwax oil, satin
- Paint - ink plum, matte
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Table saw
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Cork pinboard wrapped in natural linen, 12mm
- 4 x Hidden floating-shelf rod with wall plate, 12mm, 180mm
- 1 x Plug-in LED strip kit, 12V, warm white 2700K, in a frosted aluminium channel
- 2 x Side-mount drawer slide, 400mm
- 1 x Edge pull, 150mm, brushed brass
Cut list
The first 3 of 13 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Backboard | 1080 x 1100 x 1242 1/2" x 43 5/16" x 1/2" | Birch plywood |
| B | 2 | Drawer - Drawer 1 side | 400 x 90 x 1215 3/4" x 3 9/16" x 1/2" | Birch plywood |
| C | 2 | Drawer - Drawer 1 box | 346.5 x 90 x 1213 5/8" x 3 9/16" x 1/2" | Birch plywood |
| +12 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 17 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 33 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

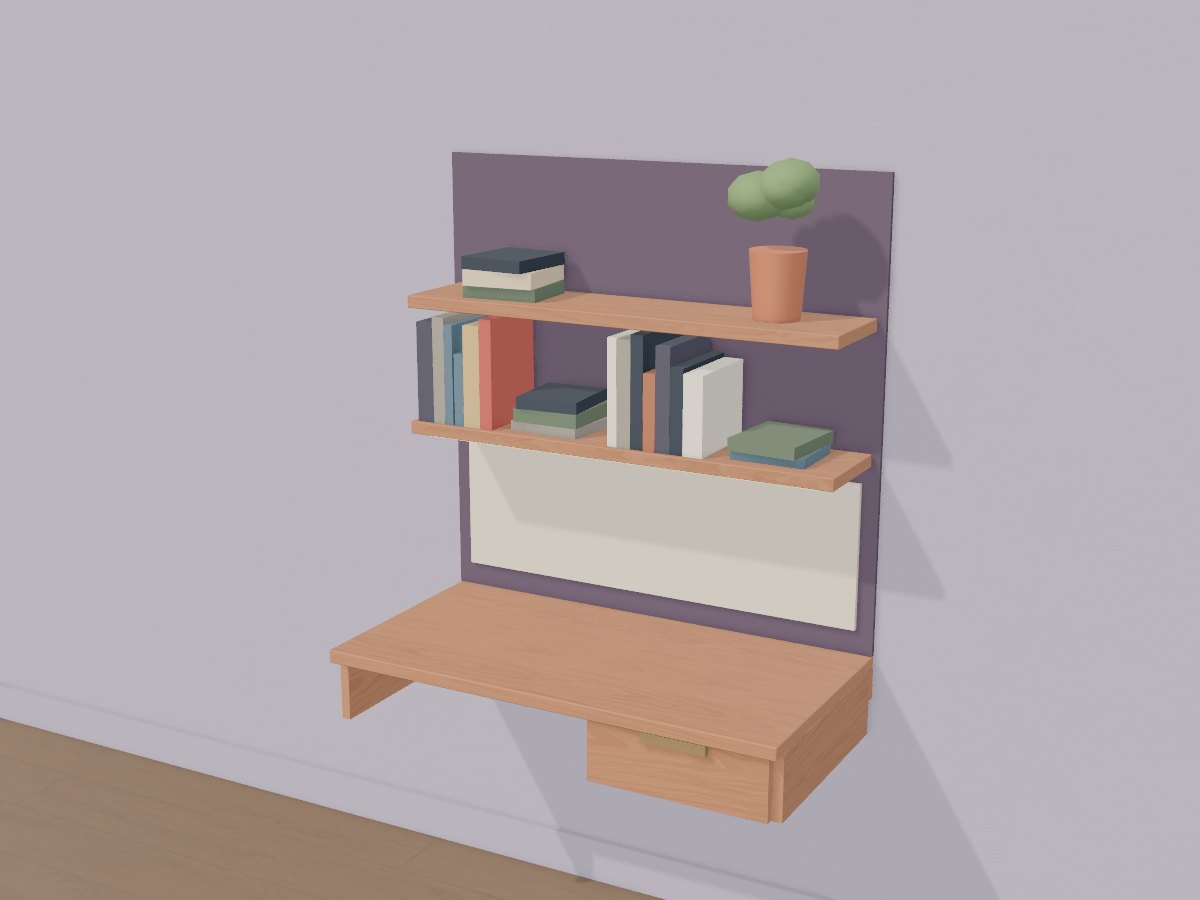

The 3D model
