Cutting board with a slide-out scrap tray
A raised maple chopping board, 460 x 340mm, standing on two long skirts, with a walnut-fronted tray that slides out from under the open end. Push peelings and trimmings off the edge straight into the tray instead of chasing them across the counter, then carry the tray to the compost; it slides back under the board, so the whole set takes no more counter than the board alone.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 610 x 340 x 87 mm24" x 13 3/8" x 3 7/16"
- Parts to cut
- 13
- Build steps
- 21
- Boards
- 4
- Solid wood
- 3 bd ft
- Weight
- 4.9 kg11 lb
Materials
- Hard maple
- Black walnut
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Table saw
- Sandpaper
- Brush
Cut list
The first 3 of 7 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Tray, with finger scoop | 297 x 56 x 2011 11/16" x 2 3/16" x 13/16" | Black walnut |
| B | 5 | Top strip | 460 x 68 x 2518 1/8" x 2 11/16" x 1" | Hard maple |
| C | 2 | Skirt | 460 x 62 x 2018 1/8" x 2 7/16" x 13/16" | Hard maple |
| +5 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 13 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 21 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

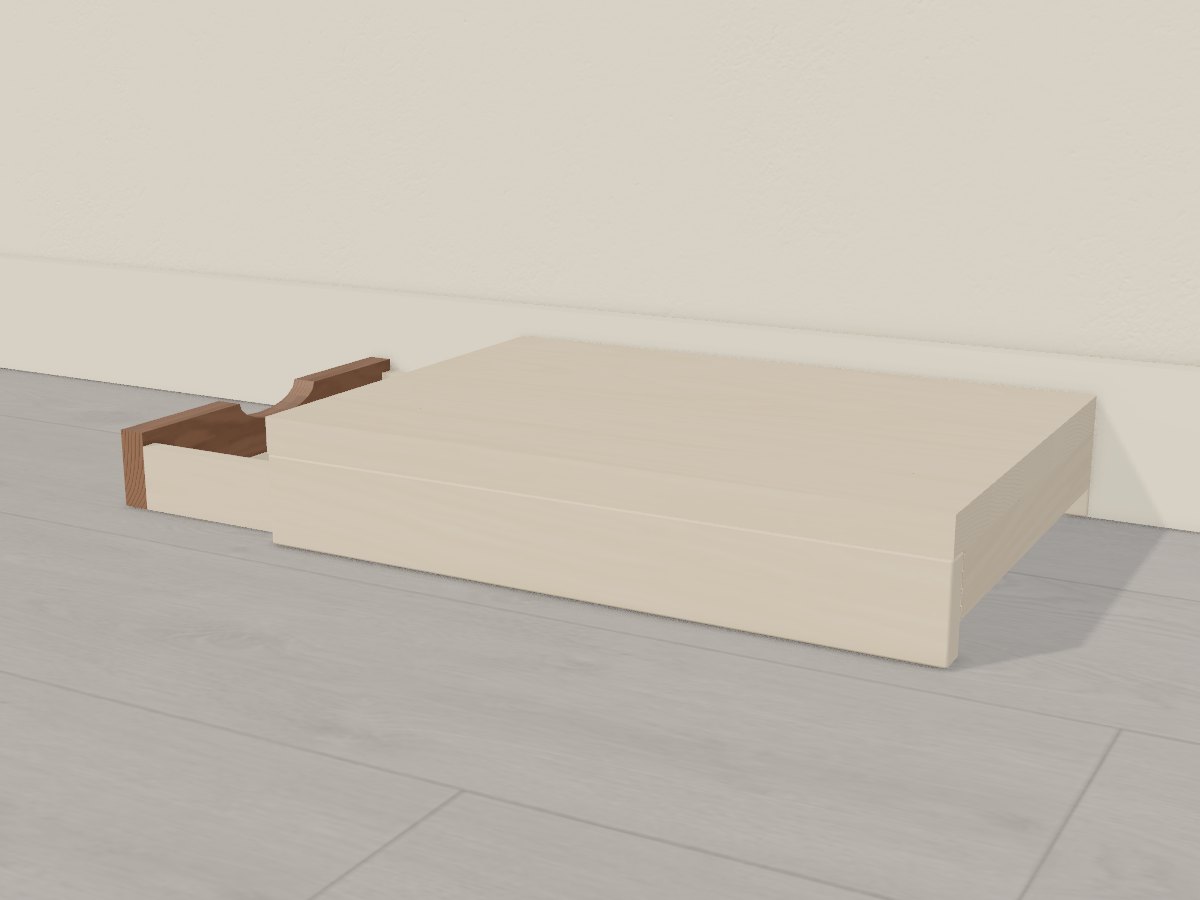

The 3D model
