Maple arch bookends

A pair of tall arched bookends in hard maple, each standing on a thin blackened steel plate that slides under the first few books, so the books' own weight holds the row upright instead of a heavy block taking up shelf space. The plates screw on through slotted holes so the maple can move, and cork underneath spares the shelf.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

572 x 170 x 215 mm22 1/2" x 6 11/16" x 8 7/16"

Parts to cut

2

Build steps

8

Boards

1

Solid wood

0.8 bd ft

Weight

2.4 kg5 lb

Materials

• Hard maple

Finish

• Finishing oil - Hardwax oil, clear matt, satin

Tools

• Saw
• Square
• Tape
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 2 x Blackened steel bookend plate, 150 x 170 x 3mm, drilled and countersunk
• 1 x Self-adhesive cork sheet, 2mm

Cut list

The first 1 of 1 lines, in millimetres (inches below), finished size including joint allowances.

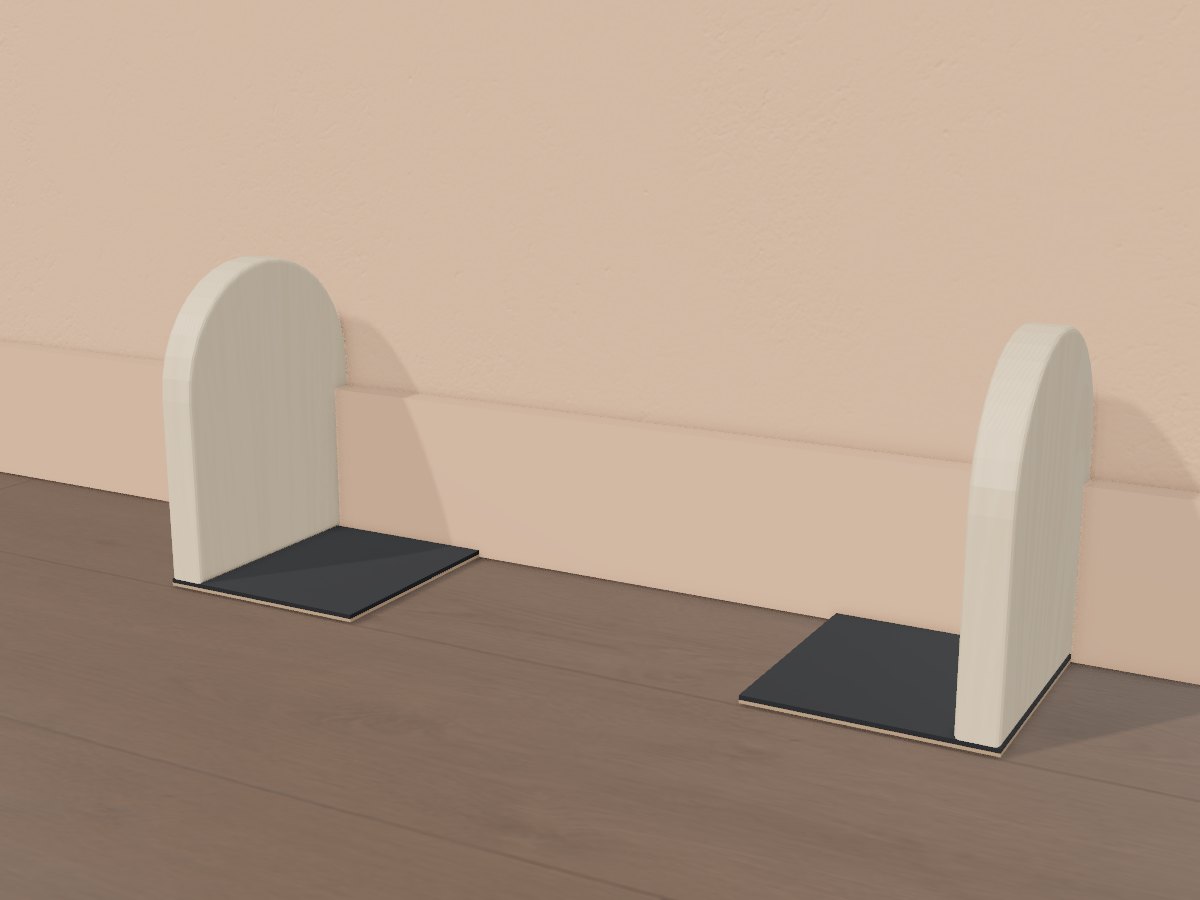

The 3D model
