Limed oak nesting coffee tables
Three tables in the floor space of one: a low limed white oak coffee table on thick slab ends, open at the front so two tapered-leg side tables slide right underneath it. Pull one out for a drink beside the armchair, both for guests, push them home and the living room is clear again, 1000 x 560mm and nothing more.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1000 x 1120 x 400 mm39 3/8" x 44 1/8" x 15 3/4"
- Parts to cut
- 23
- Build steps
- 20
- Boards
- 6
- Solid wood
- 19.7 bd ft
- Weight
- 34.1 kg75 lb
Materials
- White oak
Finish
- Finishing oil - Hardwax oil, white tint
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Chisel
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Coffee table top | 1000 x 560 x 3039 3/8" x 22 1/16" x 1 3/16" | White oak |
| B | 1 | Rail | 980 x 70 x 2438 9/16" x 2 3/4" x 15/16" | White oak |
| C | 1 | Low stretcher | 980 x 50 x 2438 9/16" x 1 15/16" x 15/16" | White oak |
| +20 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 23 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 20 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

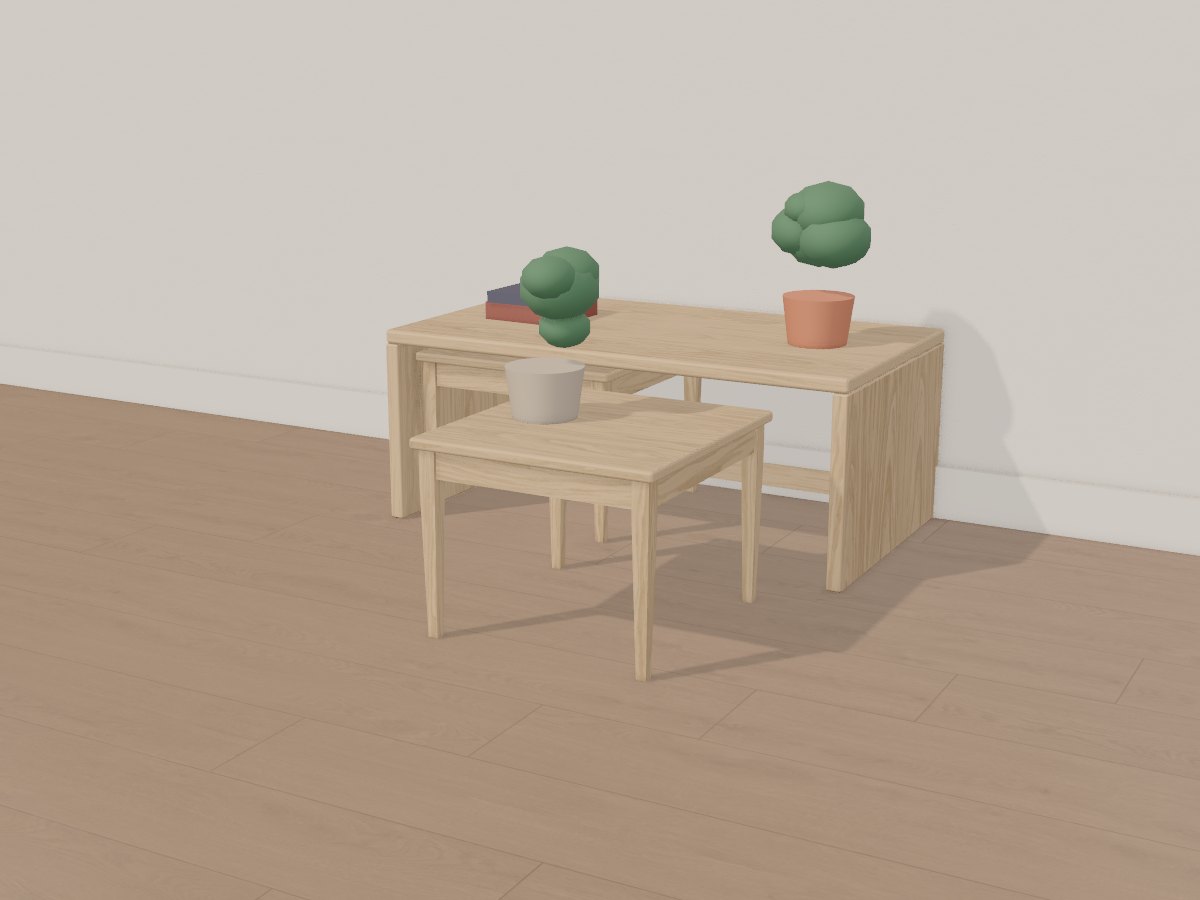

The 3D model
