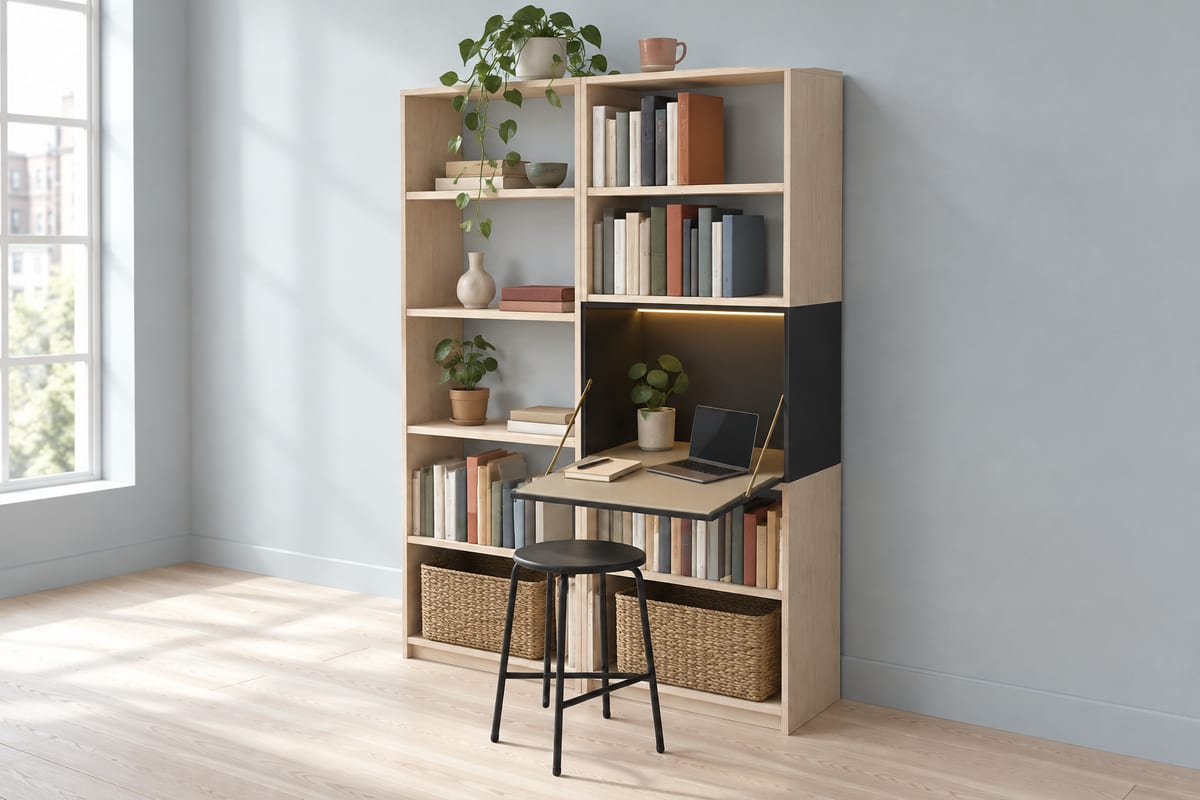

Birch room divider with fold-out desk

A double-sided birch plywood room divider 1200mm wide and 400mm deep that splits a studio into living and working halves, with an ink-black desk box set into one column: its front folds down on brass stays to an 800mm-deep lino-topped desk at 740mm, lit inside by a warm strip. Shelves open to both sides, so the wall it replaces still lets the light through.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1200 x 820 x 1803 mm47 1/4" x 32 5/16" x 71"

Parts to cut

26

Build steps

37

Sheets

4

Weight

79.2 kg175 lb

Materials

• Birch plywood

Finish

• Paint - ink black, satin
• Clear finish - Water-based lacquer, matt

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Furniture linoleum, 2mm, putty
• 1 x Brass piano hinge, 32mm open width
• 2 x Brass lid stay, soft-down, 300mm
• 1 x Push-to-open magnetic touch latch
• 1 x Anti-tip furniture strap, steel cable
• 1 x Plug-in LED strip kit, 12V, warm white 2700K

Cut list

The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.

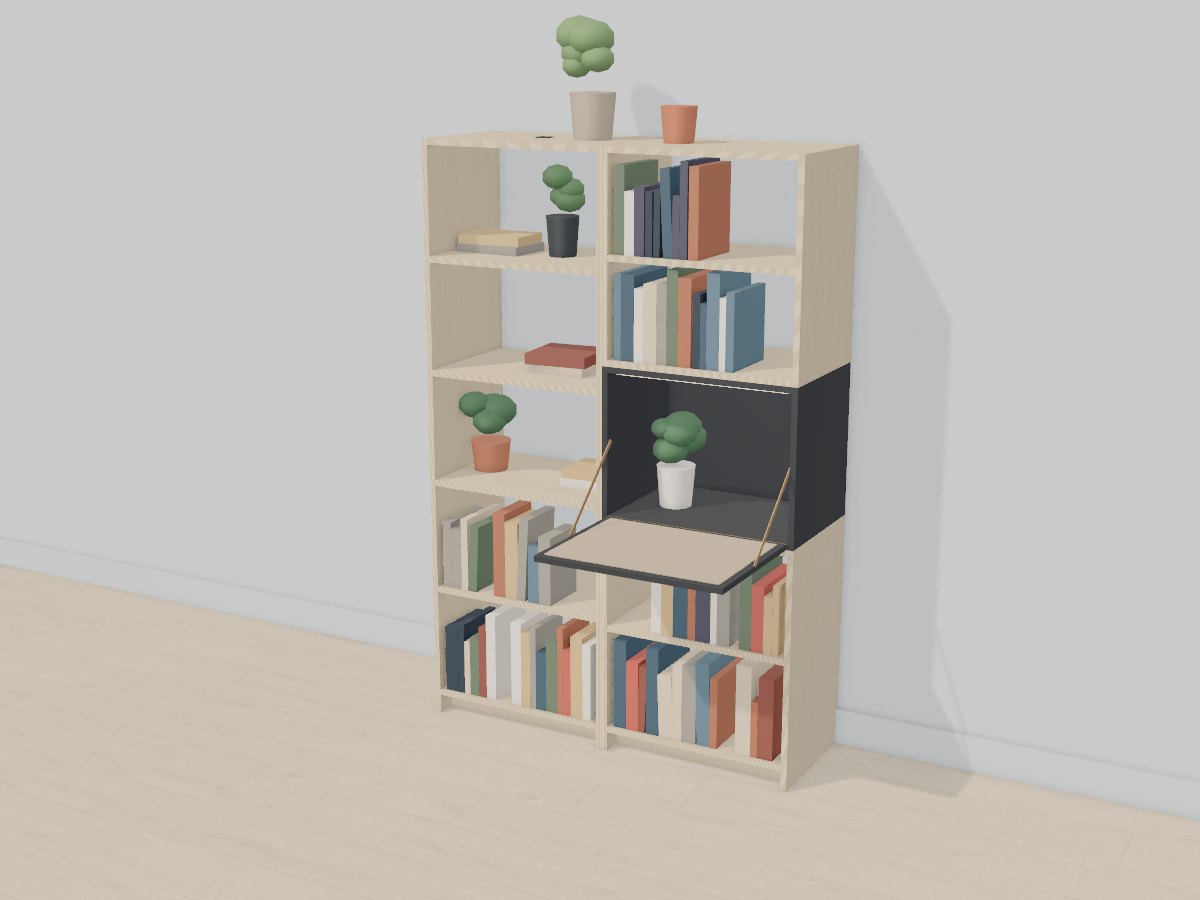

The 3D model
