Ebonised oak record crate

A rolling crate for about 120 LPs that lives under a turntable and comes out to play: ebonised oak ends with scooped tops to lift by and flick through, natural oak slats housed in both ends, a sliding index divider and four soft casters, two of them braked. The ends stop 50mm below the sleeves, so every record can be read and pulled without lifting the rest.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

580 x 370 x 380 mm22 13/16" x 14 9/16" x 14 15/16"

Parts to cut

12

Build steps

15

Boards

3

Sheets

2

Solid wood

4 bd ft

Weight

17 kg37 lb

Materials

• White oak
• Birch plywood

Finish

• Stain - ebonised oak, satin
• Clear finish - Water-based clear lacquer, matt, matte
• Finishing oil - Hardwax oil, natural satin, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Table saw
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 2 x Swivel plate caster, 50mm soft rubber wheel, with brake
• 2 x Swivel plate caster, 50mm soft rubber wheel, no brake

Cut list

The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.

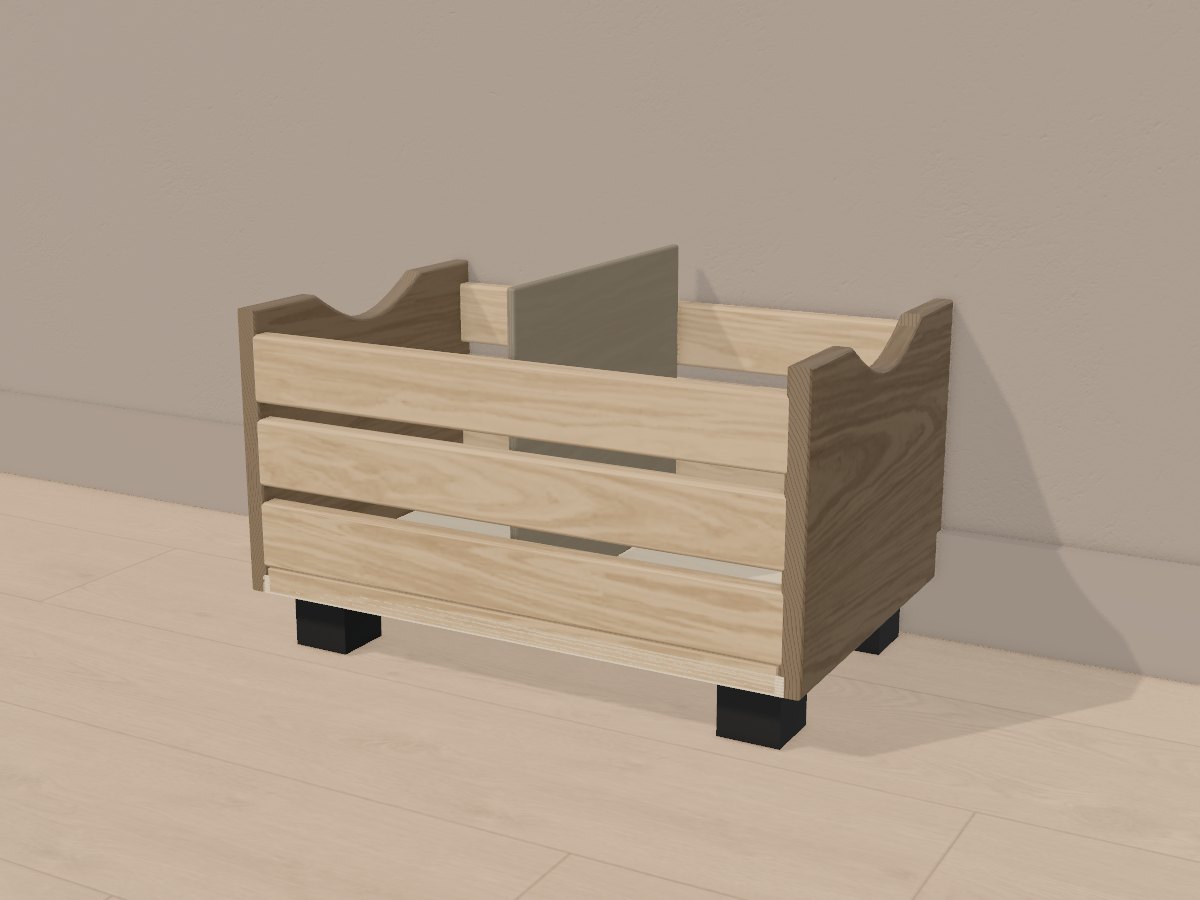

The 3D model
