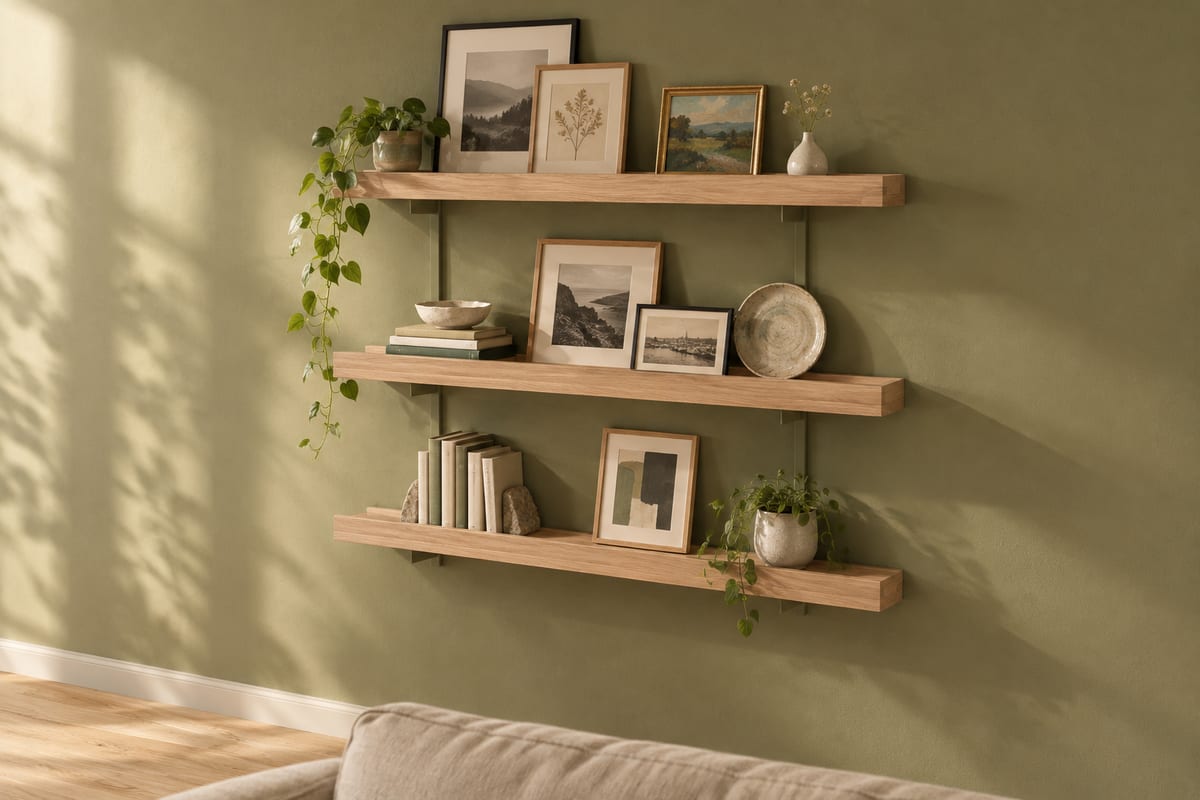

Cherry gallery ledges on twin-slot rails

Three 1.1m cherry picture ledges that hang on twin-slot rails painted out to the wall, so the gallery can be moved up, down or rearranged on a whim without a single new hole. Each ledge has a raised front lip and a deep back rail so frames, prints and plates lean safely in two layers.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1100 x 115 x 830 mm43 5/16" x 4 1/2" x 32 11/16"

Parts to cut

9

Build steps

12

Boards

3

Solid wood

4.4 bd ft

Weight

12.6 kg28 lb

Materials

• Cherry

Finish

• Finishing oil - Hardwax oil, satin

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 2 x Twin-slot shelving upright, 830mm, white
• 6 x Twin-slot shelf bracket, 120mm, white

Cut list

The first 3 of 9 lines, in millimetres (inches below), finished size including joint allowances.

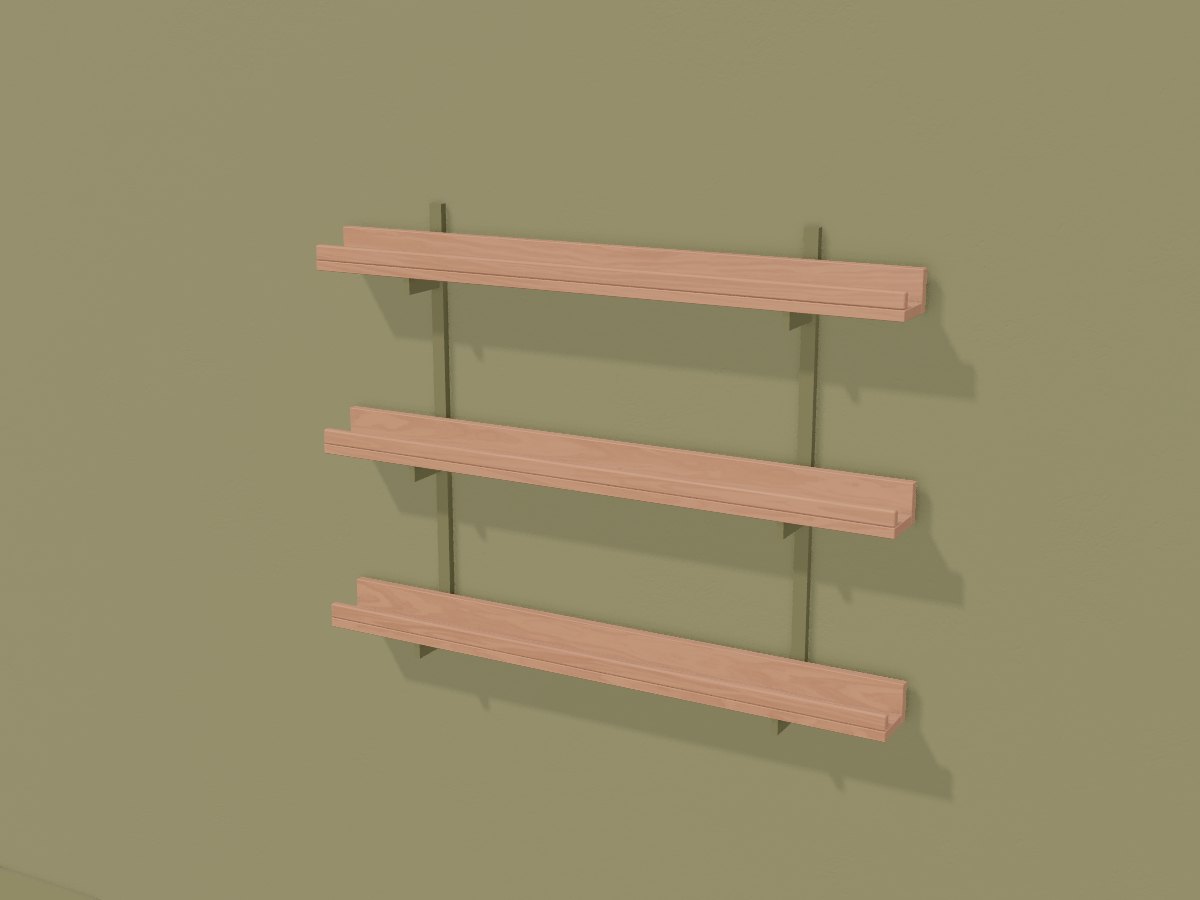

The 3D model

More living room designs

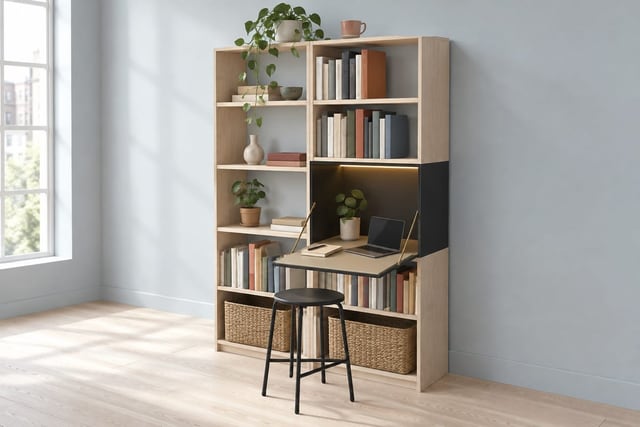

• Birch room divider with fold-out desk A double-sided birch plywood room divider 1200mm wide and 400mm deep that splits a studio into living and working halves, with an ink-black desk box set into one column: its front folds down on brass stays to an 800mm-deep lino-topped desk at 740mm, lit inside by a warm strip. Shelves open to both sides, so the wall it replaces still lets the light through.

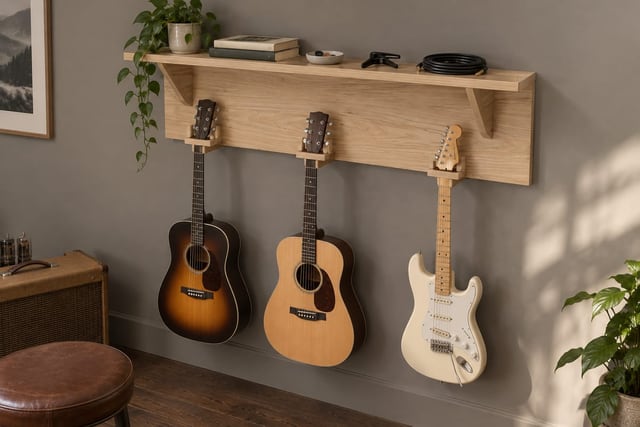

• Oak guitar wall with a top shelf A white oak wall rail that hangs three guitars by their headstocks on leather-lined yokes, with a lipped shelf above for the tuner, capo, picks and spare strings, so the instruments are out of the way but one reach from being played. It hangs on a French cleat, and the yoke arms are tenoned into the backboard rather than screwed.

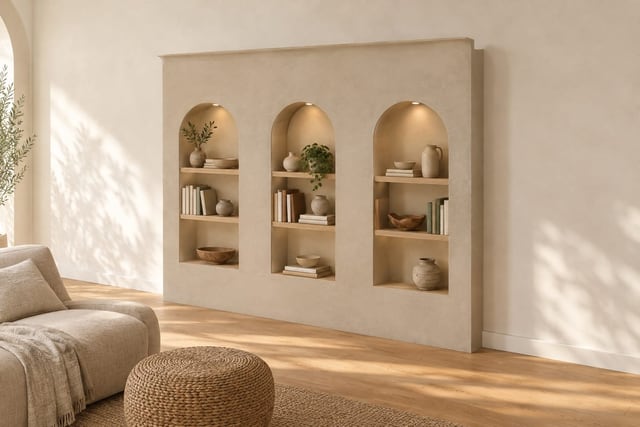

• Limestone arched niche wall A living-room wall built out 280mm on plywood ribs and faced in limestone-coloured MDF, with three tall arched niches cut into it: each lined, fitted with two oak shelves on an oak sill and lit by a warm puck light let into the top of the arch, under a cove cornice. Display shelving that takes up no floor, with the depth of the build-out hiding the speaker and lighting cables.
