Joinery oak low table

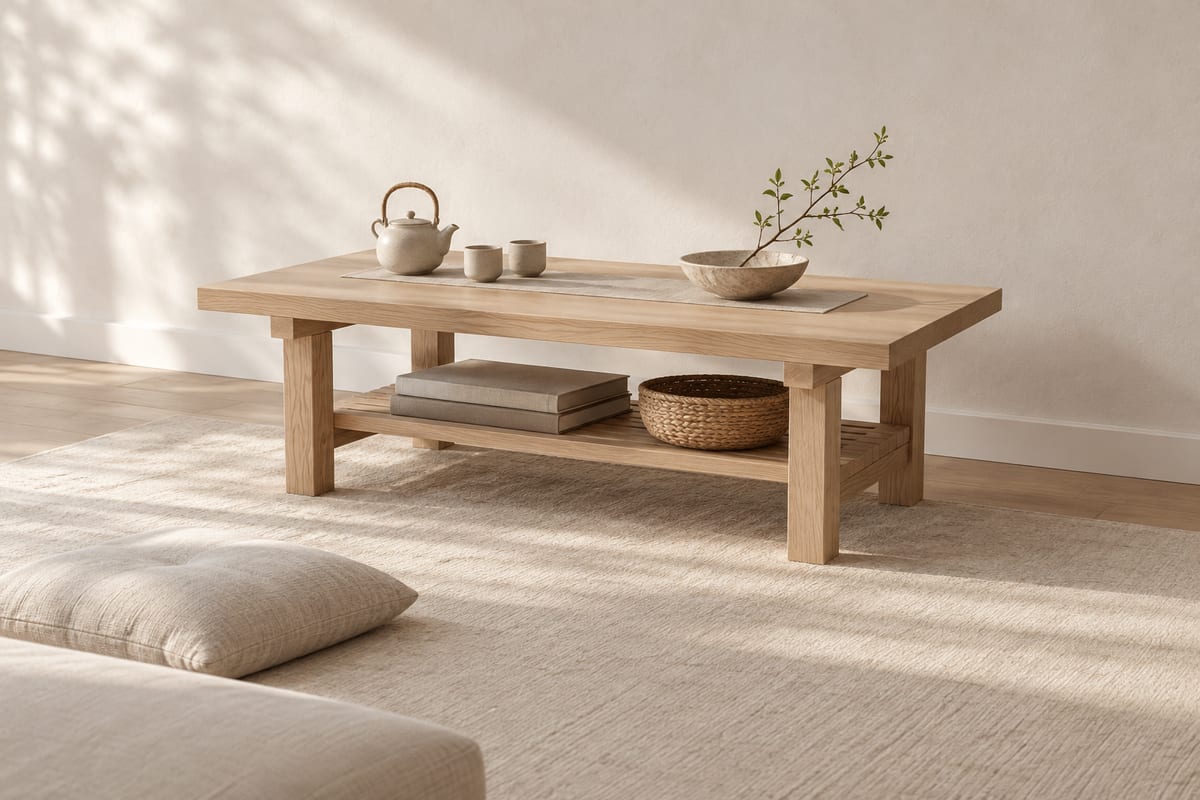

A low, generous coffee table in pale white oak, built like a small timber frame: chunky square legs tenoned up into cross rails that carry the top, low stretchers that echo the rails at each end, and five slim slats beneath for books and baskets. No metal anywhere - just joinery and a matte, soap-like finish.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1200 x 640 x 360 mm47 1/4" x 25 3/16" x 14 3/16"
- Parts to cut
- 14
- Build steps
- 14
- Boards
- 6
- Solid wood
- 18.8 bd ft
- Weight
- 32.8 kg72 lb
Materials
- White oak
Finish
- Clear finish - matte water-based, soap-finish look, matte
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Chisel
- Clamps
- Dowel jig
- Sandpaper
- Brush
Cut list
The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Top | 1200 x 640 x 4047 1/4" x 25 3/16" x 1 9/16" | White oak |
| B | 5 | Shelf slat | 932 x 54 x 2236 11/16" x 2 1/8" x 7/8" | White oak |
| C | 2 | Cross rail | 560 x 54 x 4422 1/16" x 2 1/8" x 1 3/4" | White oak |
| +6 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 14 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 14 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

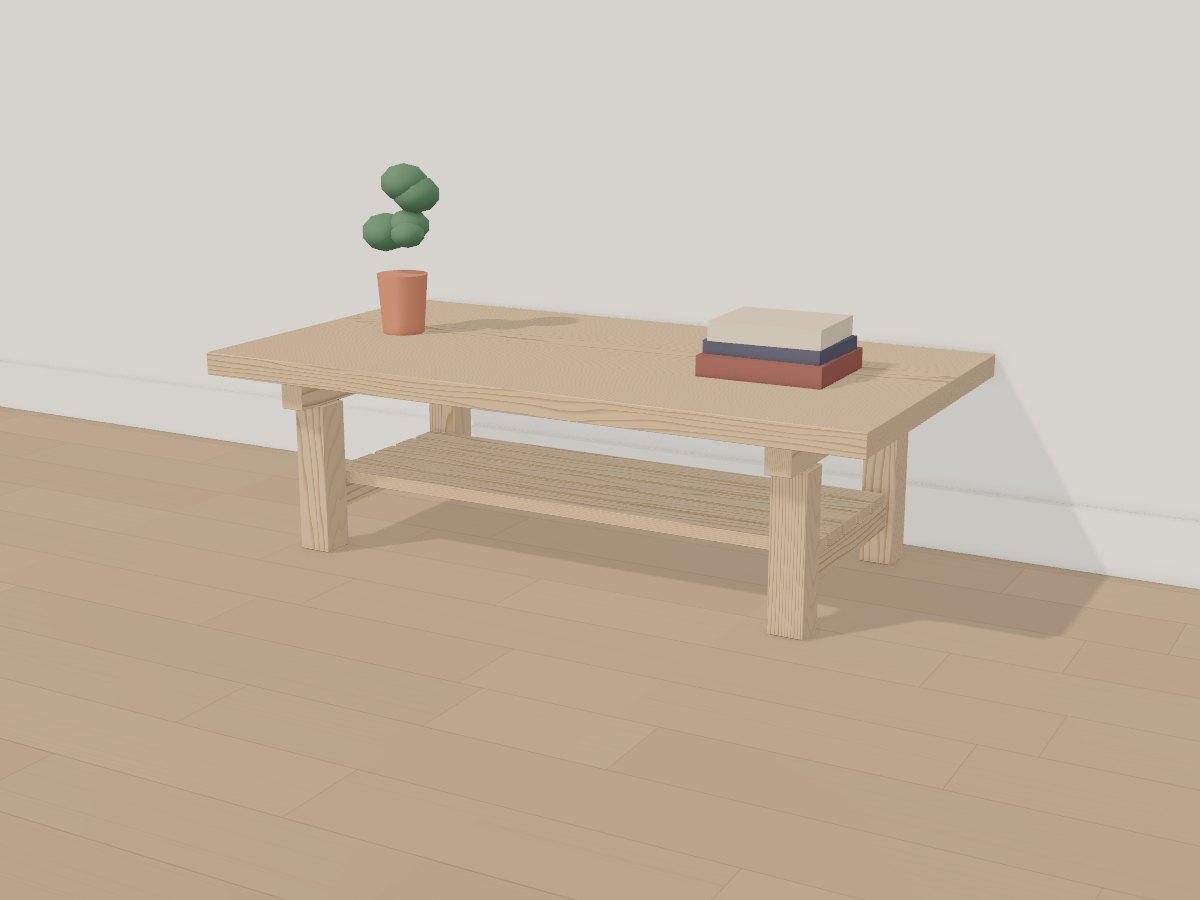

The 3D model
