Green mudroom pet station
A mudroom wall for the dog, in deep forest green with a walnut counter: a built-in feeding nook with two steel bowls at the dog's height, a deep drawer for kibble above it, a tall cupboard for the mop and broom, a lead rail with five black hooks and an open walnut shelf.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1800 x 635 x 2200 mm70 7/8" x 25" x 86 5/8"
- Parts to cut
- 56
- Build steps
- 89
- Boards
- 4
- Sheets
- 10
- Solid wood
- 15.2 bd ft
- Weight
- 244.6 kg539 lb
Materials
- Birch plywood
- MDF
- Black walnut
Finish
- Finishing oil - Hardwax oil, matt
- Paint - deep forest green, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Table saw
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 2 x Steel shelf bracket, 160 x 140mm, matt black
- 5 x Single robe hook, matt black steel
- 2 x Stainless steel dog bowl, non-slip base, 220mm
- 4 x Concealed cabinet hinge, full overlay
- 1 x Bar pull, 128mm centres, matt black
- 8 x Side-mount drawer slide, 550mm
- 4 x Cup pull, 96mm centres, matt black
Cut list
The first 3 of 43 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tall - Side | 2200 x 576 x 1886 5/8" x 22 11/16" x 11/16" | Birch plywood |
| B | 1 | Tall - Back | 2200 x 520 x 686 5/8" x 20 1/2" x 1/4" | Birch plywood |
| C | 2 | Drawers - Side | 880 x 576 x 1834 5/8" x 22 11/16" x 11/16" | Birch plywood |
| +51 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 56 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 89 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

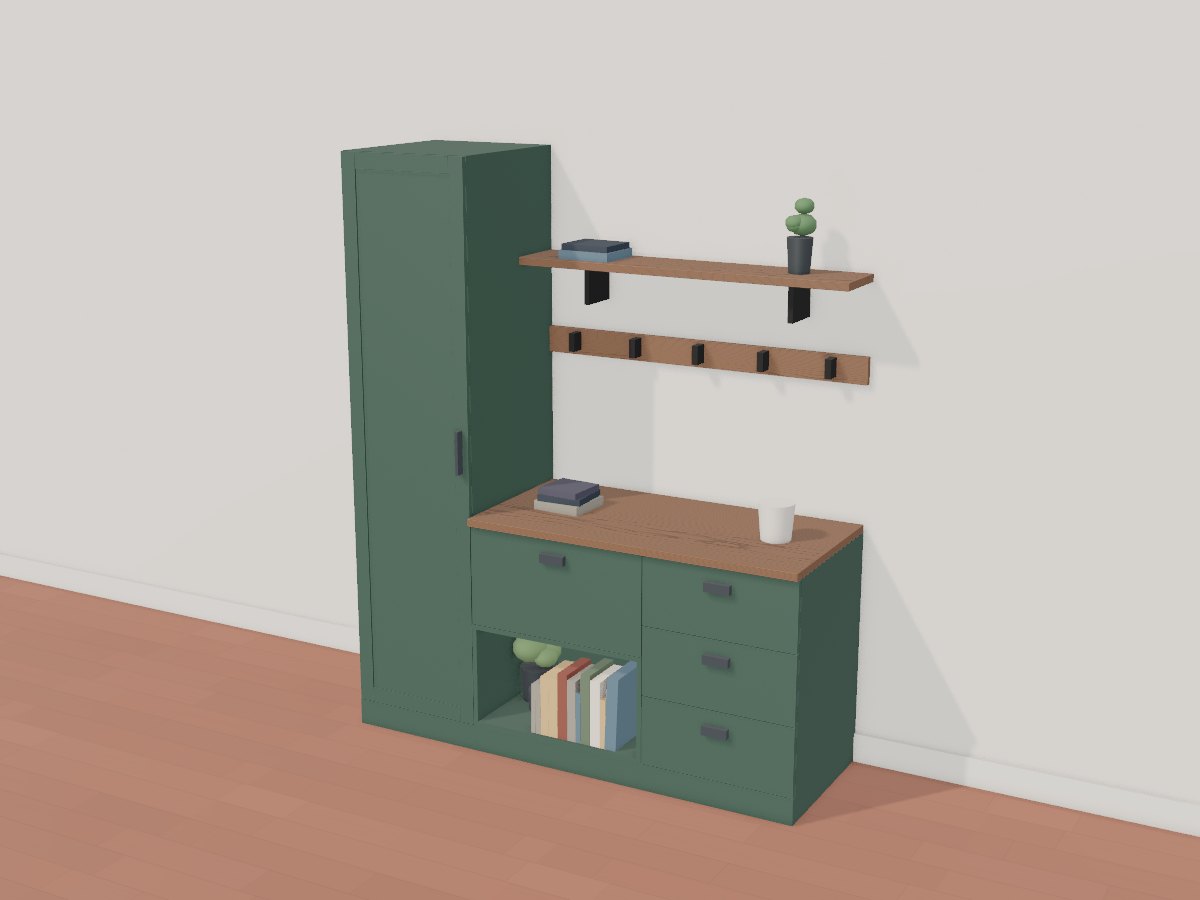

The 3D model
