Maple bathroom ladder etagere

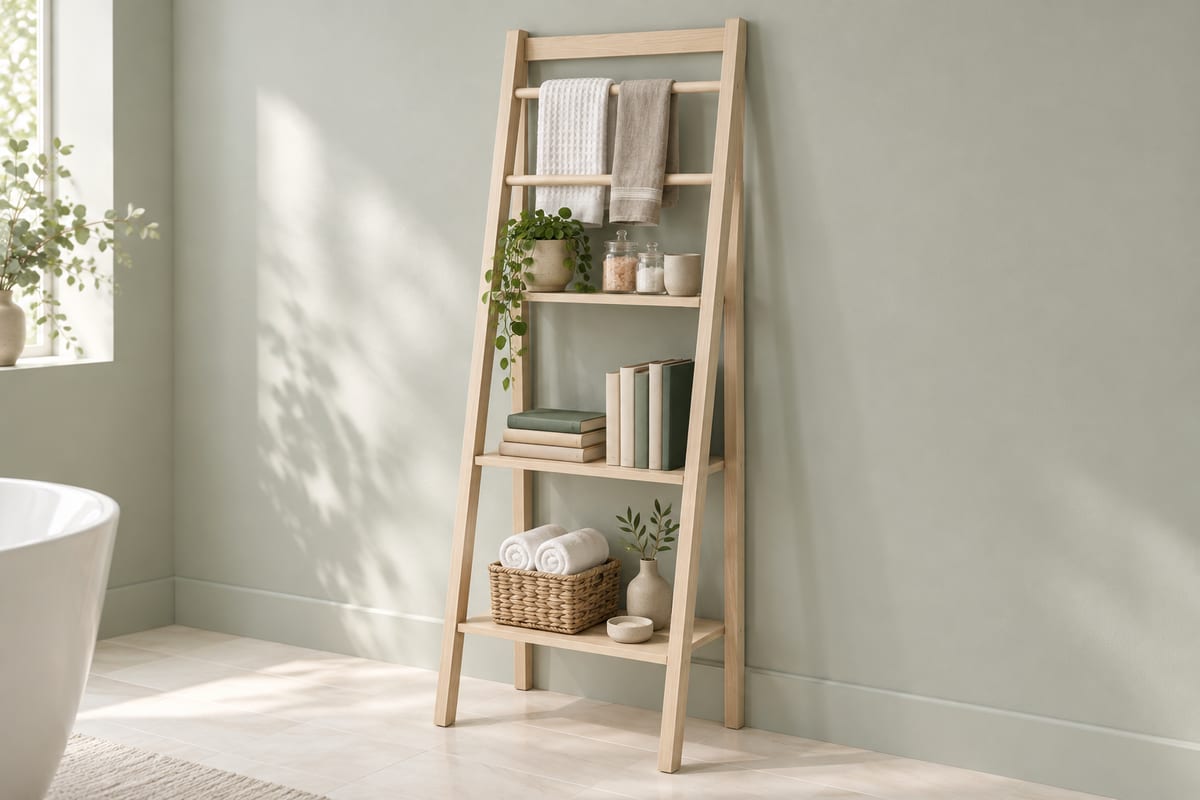

A light, airy bathroom etagere in hard maple: front rails lean in like a ladder to meet upright back posts, so its three shelves grow shallower as they rise, with two round towel rungs at the top and a water-resistant satin finish.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 620 x 419 x 1760 mm24 7/16" x 16 1/2" x 69 5/16"
- Parts to cut
- 10
- Build steps
- 17
- Boards
- 7
- Solid wood
- 8.5 bd ft
- Weight
- 13.9 kg31 lb
Materials
- Hard maple
Finish
- Clear finish - Water-resistant polyurethane, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 7 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Rail | 1820.5 x 36 x 3671 11/16" x 1 7/16" x 1 7/16" | Hard maple |
| B | 2 | Post | 1760 x 36 x 3669 5/16" x 1 7/16" x 1 7/16" | Hard maple |
| C | 2 | Towel rung | 608 x 25 x 2523 15/16" x 1" x 1" | Hard maple |
| +4 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 10 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 17 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

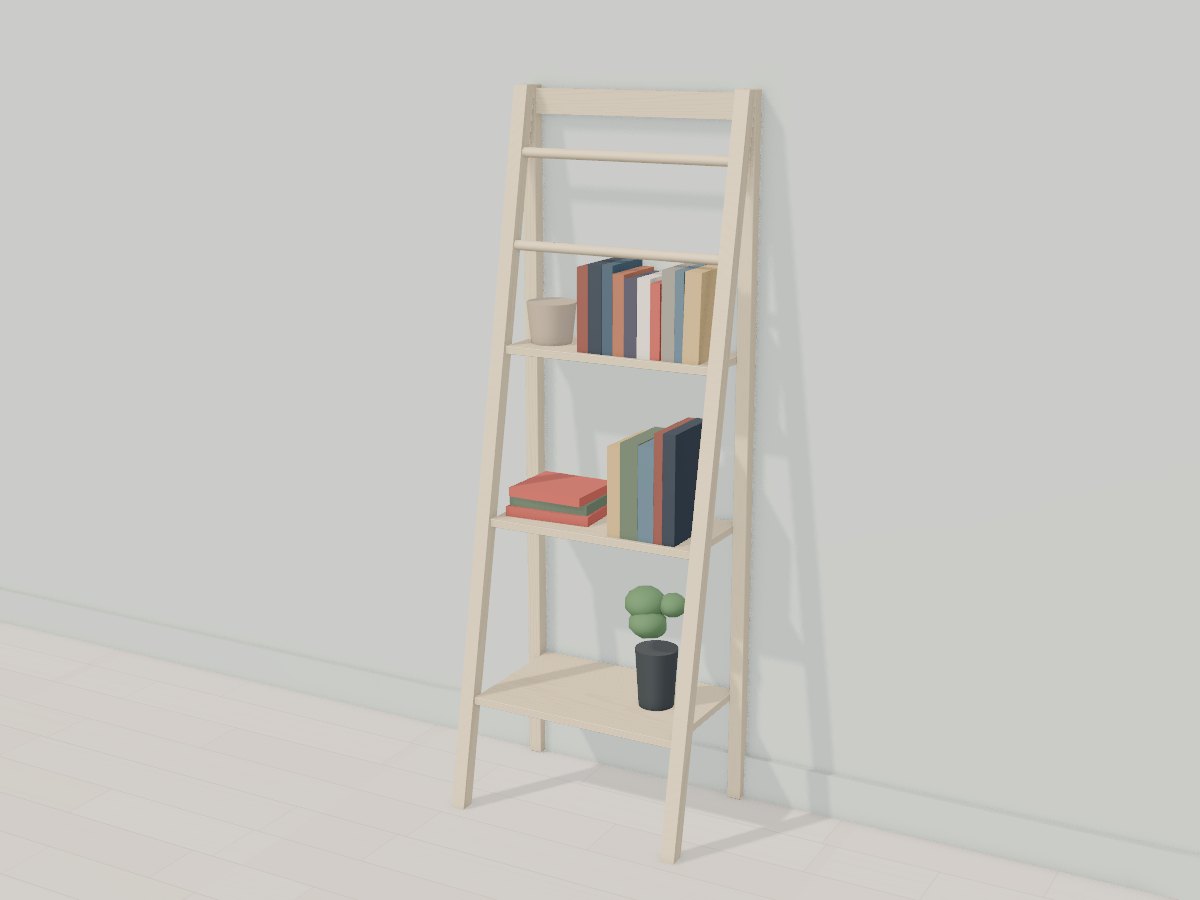

The 3D model
