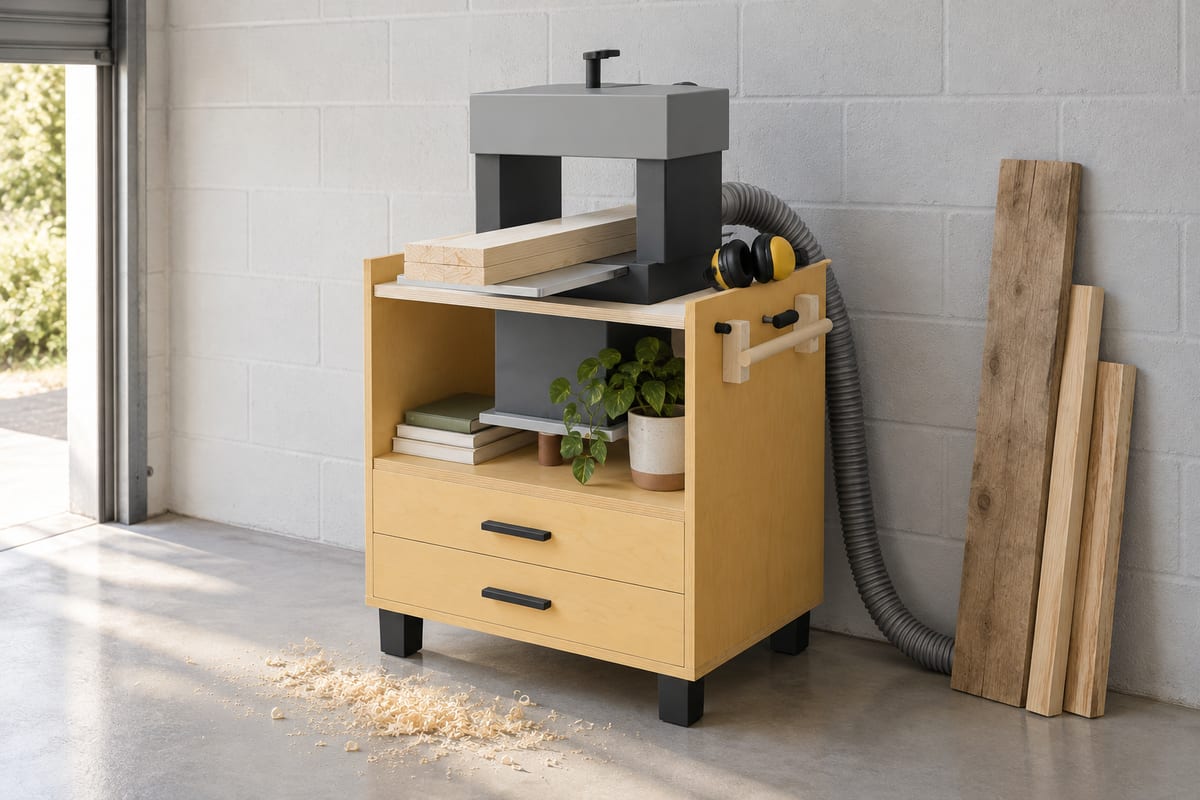

Flip-top planer and spindle sander cart

One mustard-yellow cart for two benchtop machines: the planer bolts to one face of a pivoting platform and the spindle sander hangs upside down on the other, so pulling two indexing pins and swinging the top over swaps them in seconds. It parks in a 760 x 610mm footprint, with two deep drawers for knives, sleeves and drums underneath.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

891 x 800 x 1336 mm35 1/16" x 31 1/2" x 52 5/8"

Parts to cut

26

Build steps

47

Boards

2

Sheets

5

Solid wood

0.5 bd ft

Weight

574.6 kg1267 lb

Materials

• Birch plywood
• Hard maple

Finish

• Paint - mustard yellow, satin
• Clear finish - Water-based lacquer, matt, matte
• Finishing oil - Hardwax oil, satin

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
• 2 x Steel pivot stub axle, 16mm bright bar, 120mm
• 2 x Five-star clamping knob, 60mm, M16 female
• 2 x Spring-loaded indexing plunger, 12mm pin, pull knob
• 1 x Your benchtop thickness planer, 330mm (not part of this build)
• 1 x Your benchtop oscillating spindle sander (not part of this build)
• 4 x Side-mount drawer slide, 550mm
• 2 x Bar pull, 128mm centres, matt black

Cut list

The first 3 of 18 lines, in millimetres (inches below), finished size including joint allowances.

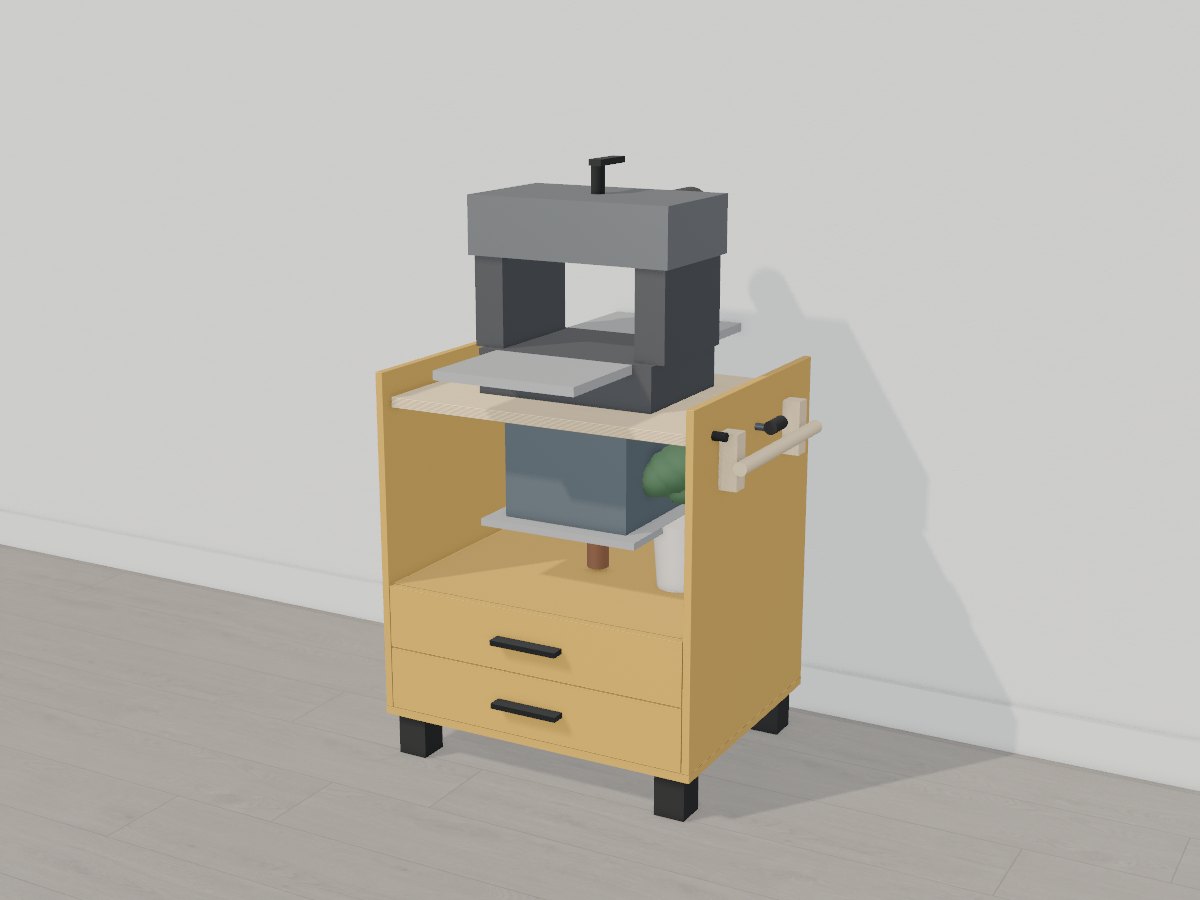

The 3D model
