Espresso work-table island

A freestanding kitchen island in espresso-brown paint on four square legs, under a 40mm hard maple butcher-block top that overhangs 370mm at the back for stools. Three wide drawers run under the top, a slatted maple pot shelf sits low between the legs, and brass towel rails cross each end.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2200 x 1002 x 915 mm86 5/8" x 39 7/16" x 36"

Parts to cut

60

Build steps

43

Boards

12

Sheets

5

Solid wood

55.7 bd ft

Weight

157.9 kg348 lb

Materials

• Birch plywood
• Hard maple
• Poplar (paint grade)
• MDF

Finish

• Paint - espresso brown, satin
• Finishing oil - food-safe board oil

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Drill
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 1 x Solid brass rod, 16mm
• 6 x Side-mount drawer slide, 550mm
• 3 x Bar pull, 128mm centres, brushed brass

Cut list

The first 3 of 28 lines, in millimetres (inches below), finished size including joint allowances.

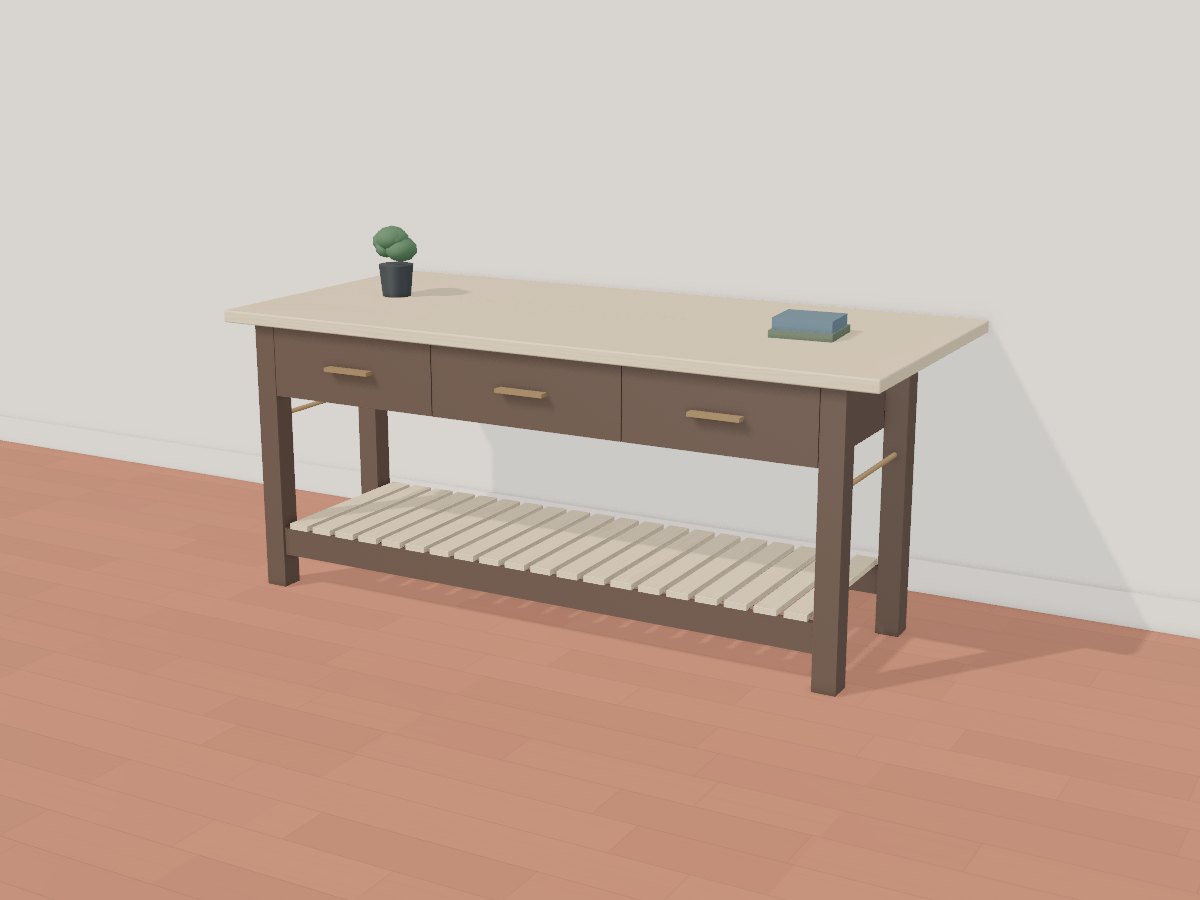

The 3D model
