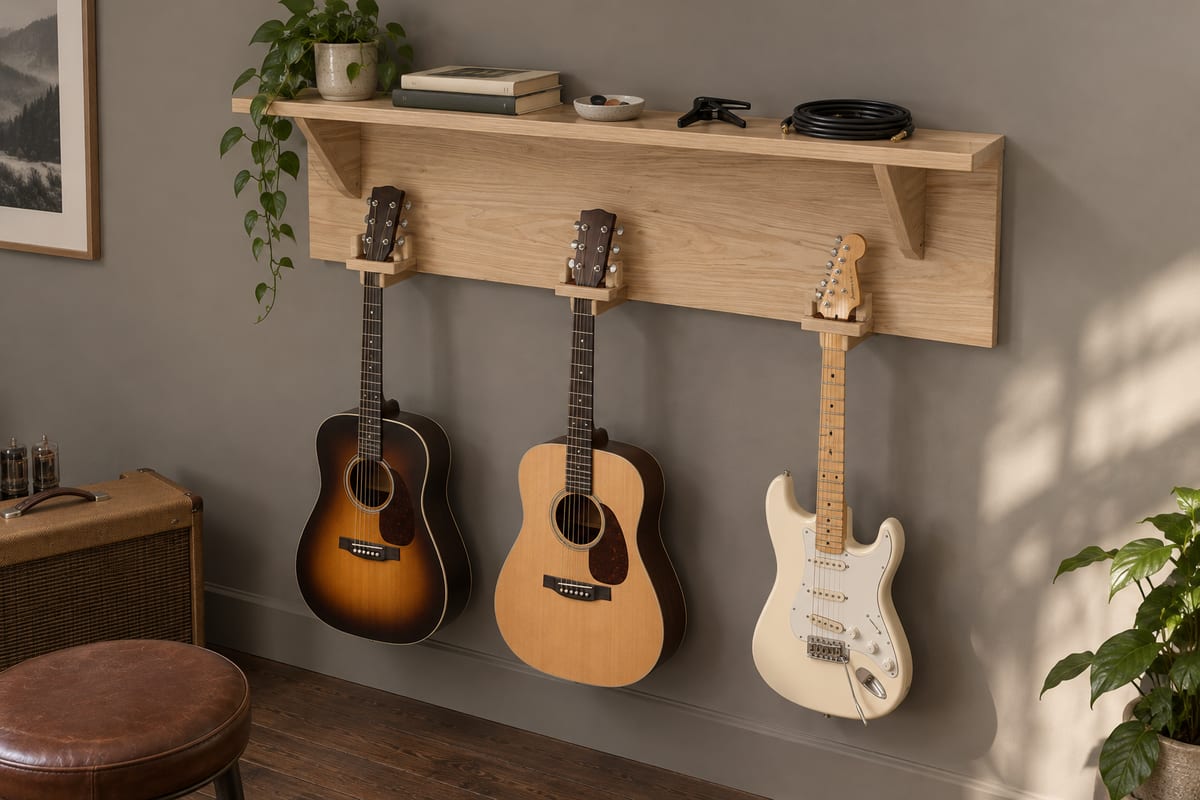

Oak guitar wall with a top shelf
A white oak wall rail that hangs three guitars by their headstocks on leather-lined yokes, with a lipped shelf above for the tuner, capo, picks and spare strings, so the instruments are out of the way but one reach from being played. It hangs on a French cleat, and the yoke arms are tenoned into the backboard rather than screwed.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1140 x 190 x 346 mm44 7/8" x 7 1/2" x 13 5/8"
- Parts to cut
- 19
- Build steps
- 24
- Boards
- 5
- Solid wood
- 7.3 bd ft
- Weight
- 12.3 kg27 lb
Materials
- White oak
Finish
- Finishing oil - Hardwax oil, natural matt, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Leather strip, 2mm, brown
Cut list
The first 3 of 14 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Backboard | 1140 x 300 x 2244 7/8" x 11 13/16" x 7/8" | White oak |
| B | 1 | Shelf | 1140 x 170 x 2444 7/8" x 6 11/16" x 15/16" | White oak |
| C | 1 | Shelf lip | 1140 x 22 x 1244 7/8" x 7/8" x 1/2" | White oak |
| +16 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 19 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 24 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

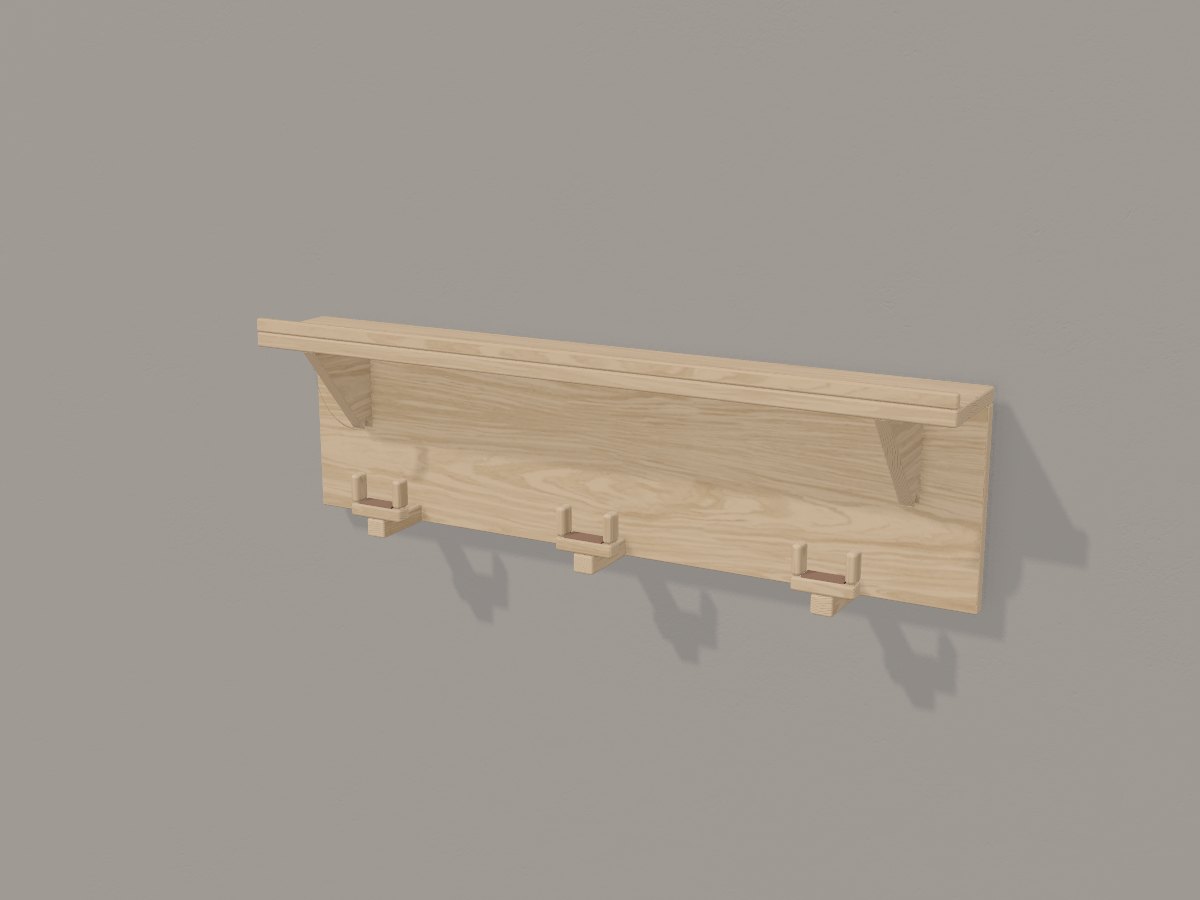

The 3D model
