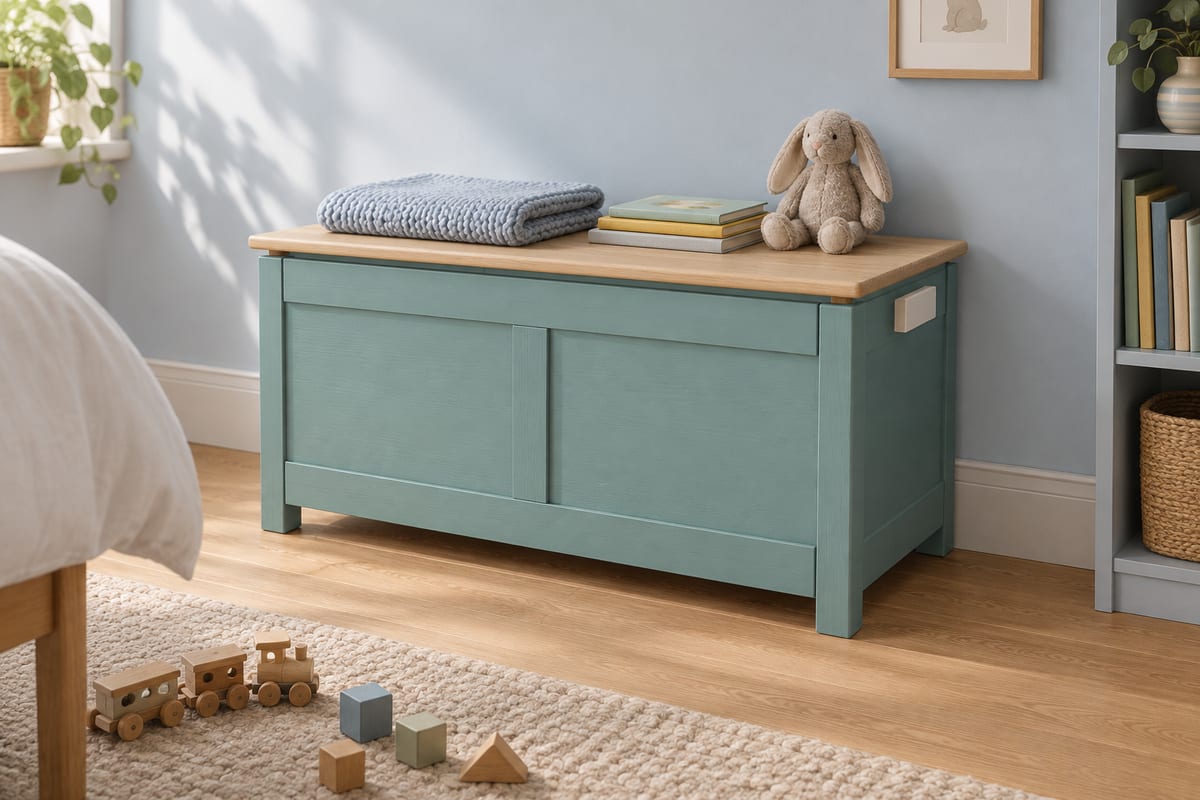

Teal panelled toy chest

A frame-and-panel toy chest in faded teal with an oiled oak lid that doubles as a bench, built so it can never shut on a child: soft-close stays hold the lid at any angle, and rubber bumpers stop it 12mm above the frame, which also lets air in. Rope handles, a raised floor on cleats and posts mortised to every rail keep it square for a lifetime of toys.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

932 x 460 x 464 mm36 11/16" x 18 1/8" x 18 1/4"

Parts to cut

22

Build steps

27

Boards

4

Sheets

2

Solid wood

9.1 bd ft

Weight

22.1 kg49 lb

Materials

• Poplar (paint grade)
• Birch plywood
• White oak

Finish

• Paint - faded teal, toy-safe water-based, satin
• Clear finish - Water-based clear lacquer, matt, toy-saf, matte
• Finishing oil - Hardwax oil, matt, toy-safe, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 2 x Cotton rope, 16mm, natural
• 4 x Screw-in rubber bumpers, 20mm, 12mm tall
• 2 x Soft-close toy box lid stay, child safe, holds open at any angle
• 2 x Strap hinge, 70mm, matt black

Cut list

The first 3 of 15 lines, in millimetres (inches below), finished size including joint allowances.

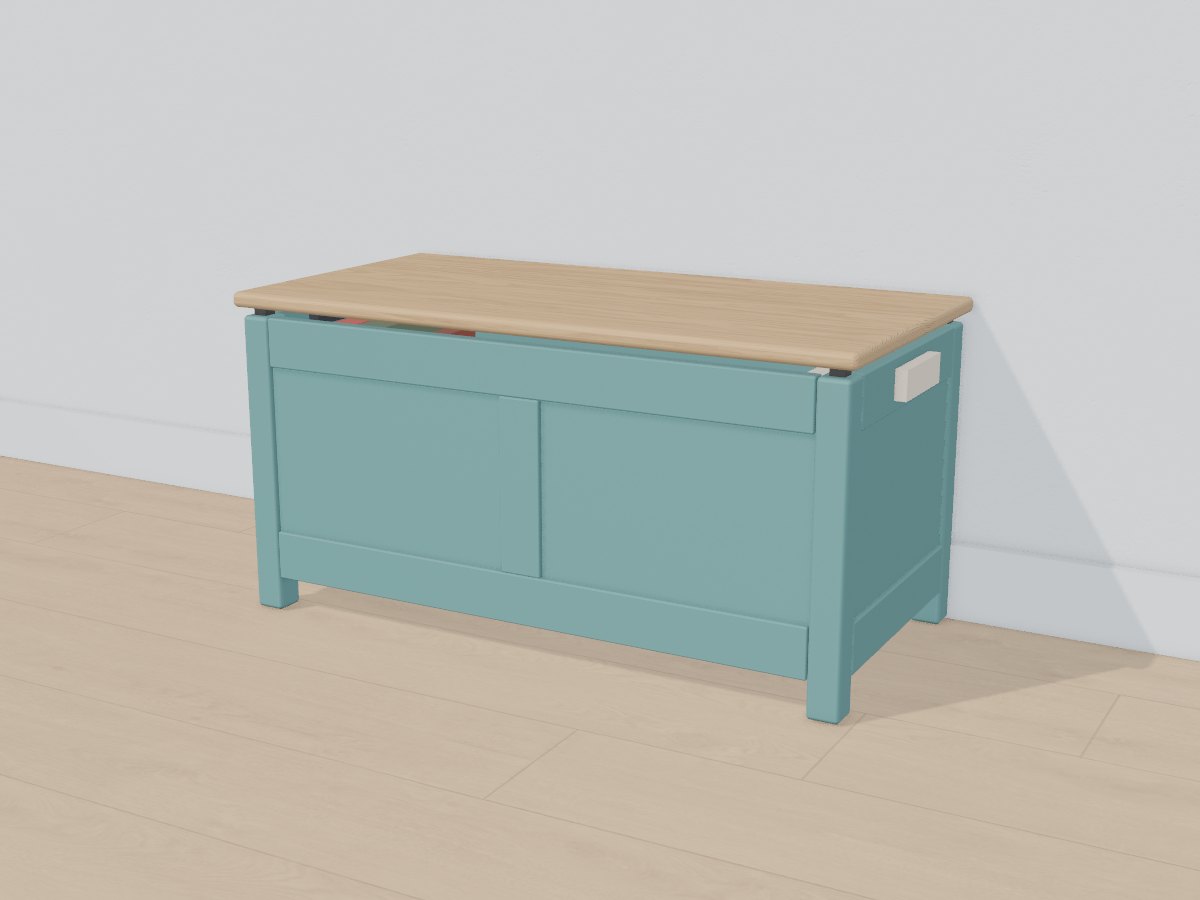

The 3D model
