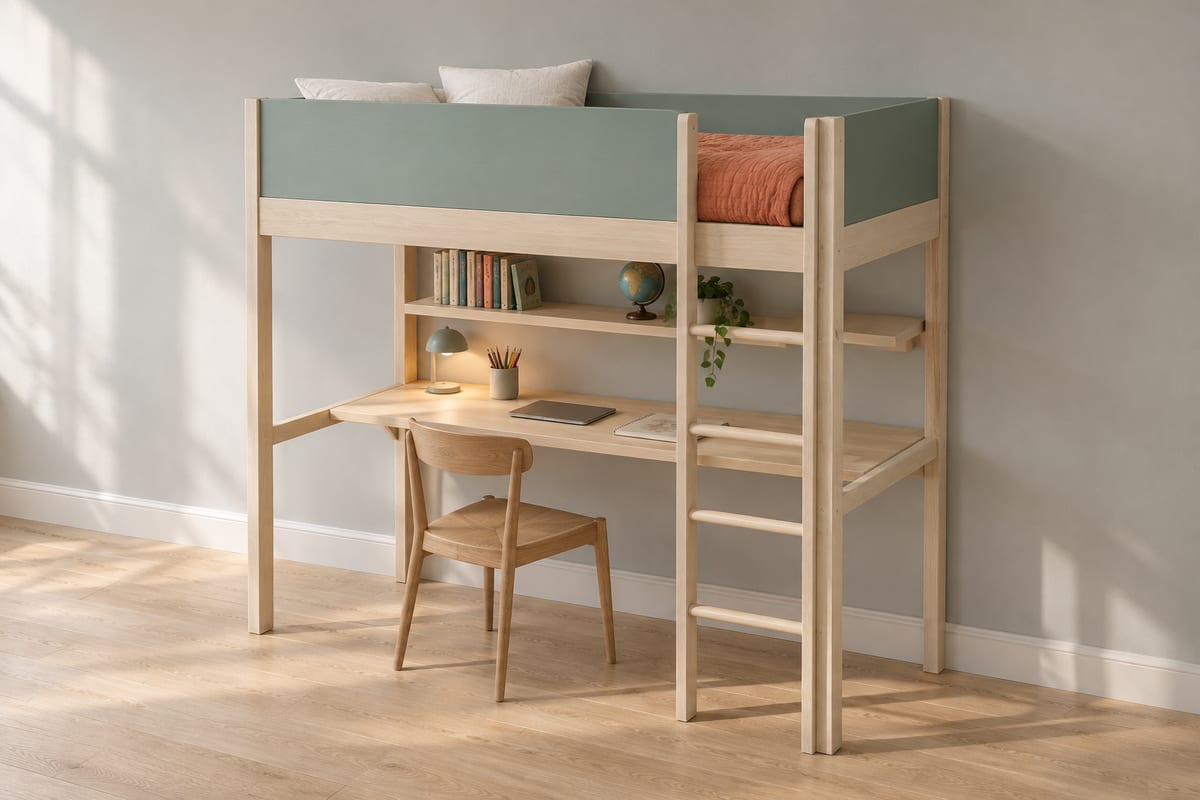

Eucalyptus loft bed with desk

A single loft bed on oiled maple posts with a two-metre desk and a book shelf tucked underneath, so one 2.1 x 1m footprint does the work of a bed, a desk and a bookcase. Built safe: eucalyptus-green guard panels stand 180mm above the 150mm mattress all round, the straight ladder runs up past the deck as handholds, and both back posts are fixed to the wall; for children six and over, in a room with a ceiling of at least 2400mm.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2110 x 1048 x 1830 mm83 1/16" x 41 1/4" x 72 1/16"

Parts to cut

33

Build steps

41

Boards

14

Sheets

3

Solid wood

33 bd ft

Weight

198.6 kg438 lb

Materials

• Hard maple
• Birch plywood

Finish

• Finishing oil - Hardwax oil, matt
• Clear finish - Water-based lacquer, matt
• Paint - eucalyptus green, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 1 x Your single mattress, 900 x 2000mm, NO thicker than 150mm (not part of this build)
• 2 x Anti-tip furniture wall bracket, steel, with stud screws

Cut list

The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.

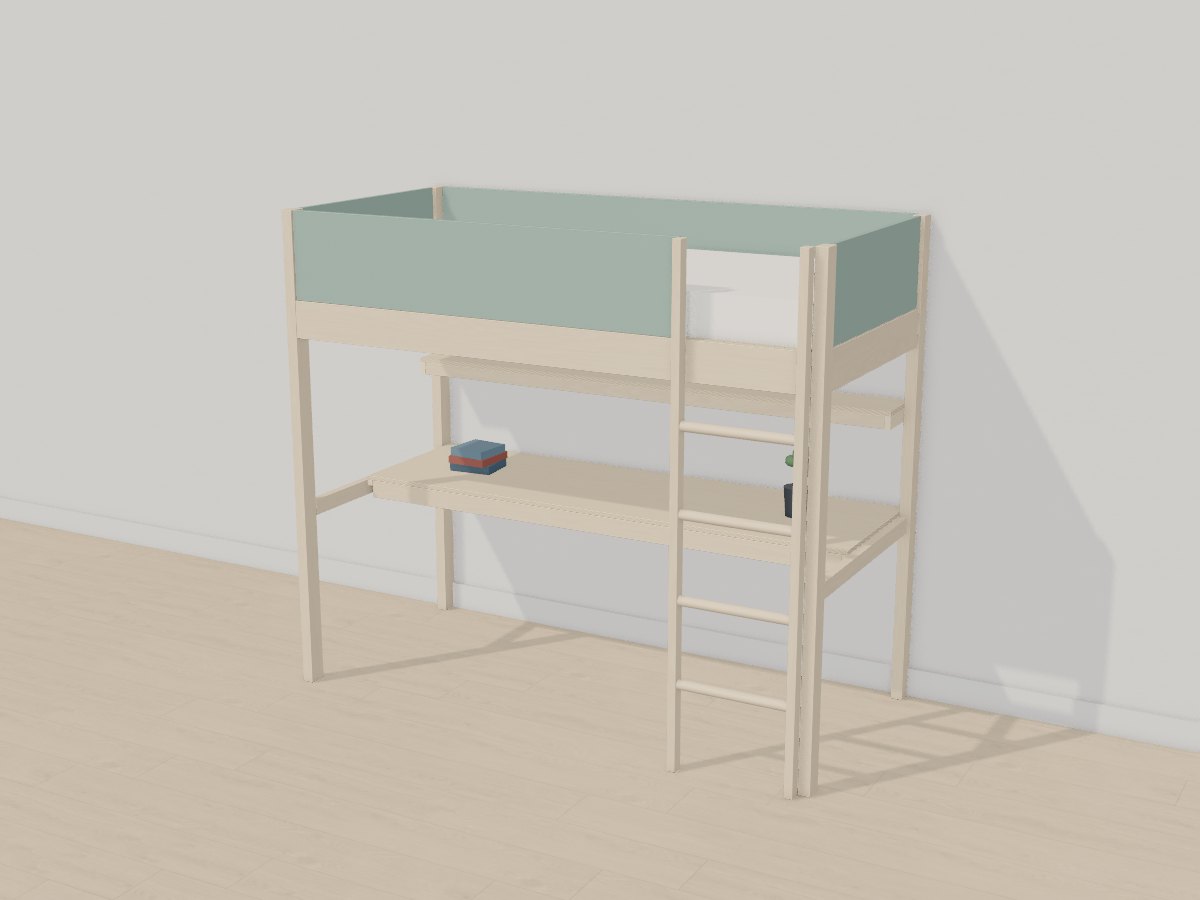

The 3D model
