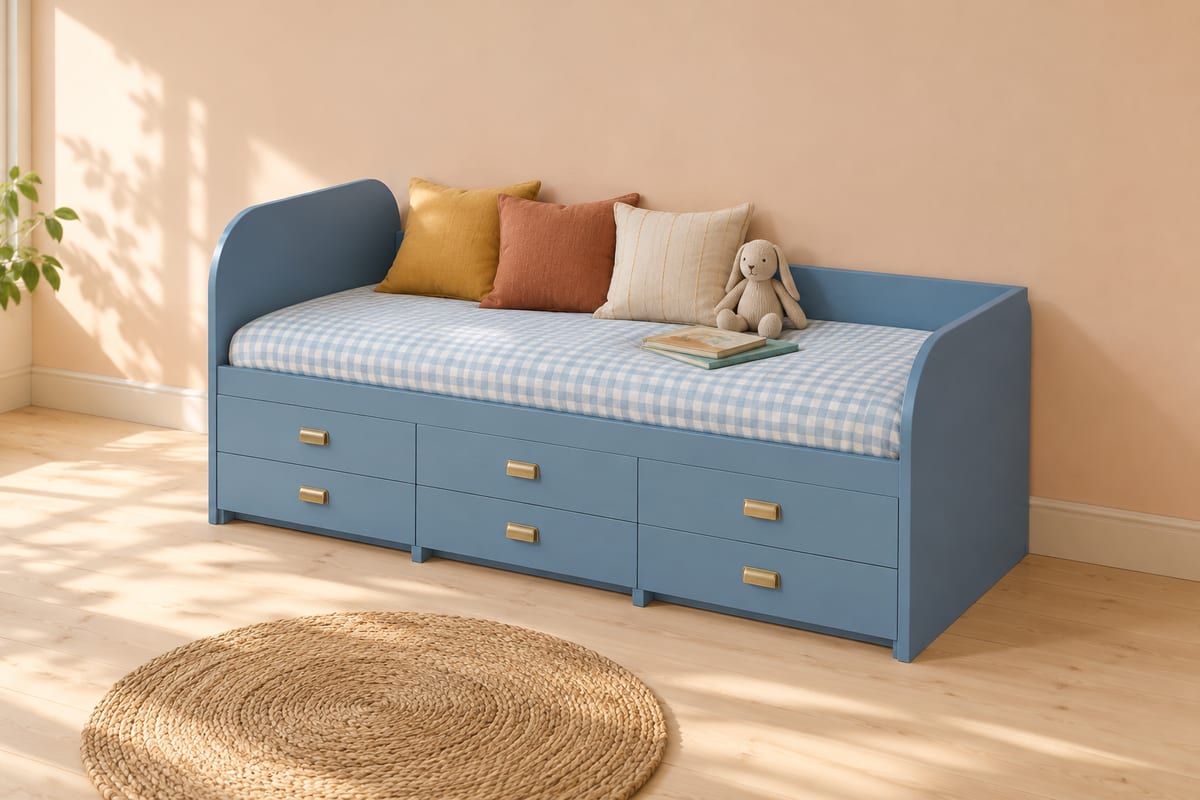

Denim blue captain's bed

A single captain's bed in denim blue with six deep drawers on the front, round-shouldered ends and a low back along the wall, so by day it is a sofa for reading and by night a bed. The drawers hold what a chest of drawers would, which frees the 500 x 1000mm of floor a dresser takes in a small child's room.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2060 x 982 x 900 mm81 1/8" x 38 11/16" x 35 7/16"

Parts to cut

62

Build steps

62

Boards

3

Sheets

7

Solid wood

6.5 bd ft

Weight

269.6 kg594 lb

Materials

• Birch plywood
• Poplar (paint grade)

Finish

• Paint - denim blue, satin

Tools

• Saw
• Square
• Tape
• Drill
• Dowel jig
• Clamps
• Router
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 1 x Your single mattress, 900 x 2000mm, up to 160mm thick (not part of this build)
• 12 x Side-mount drawer slide, 550mm
• 6 x Cup pull, 96mm centres, brushed brass

Cut list

The first 3 of 47 lines, in millimetres (inches below), finished size including joint allowances.

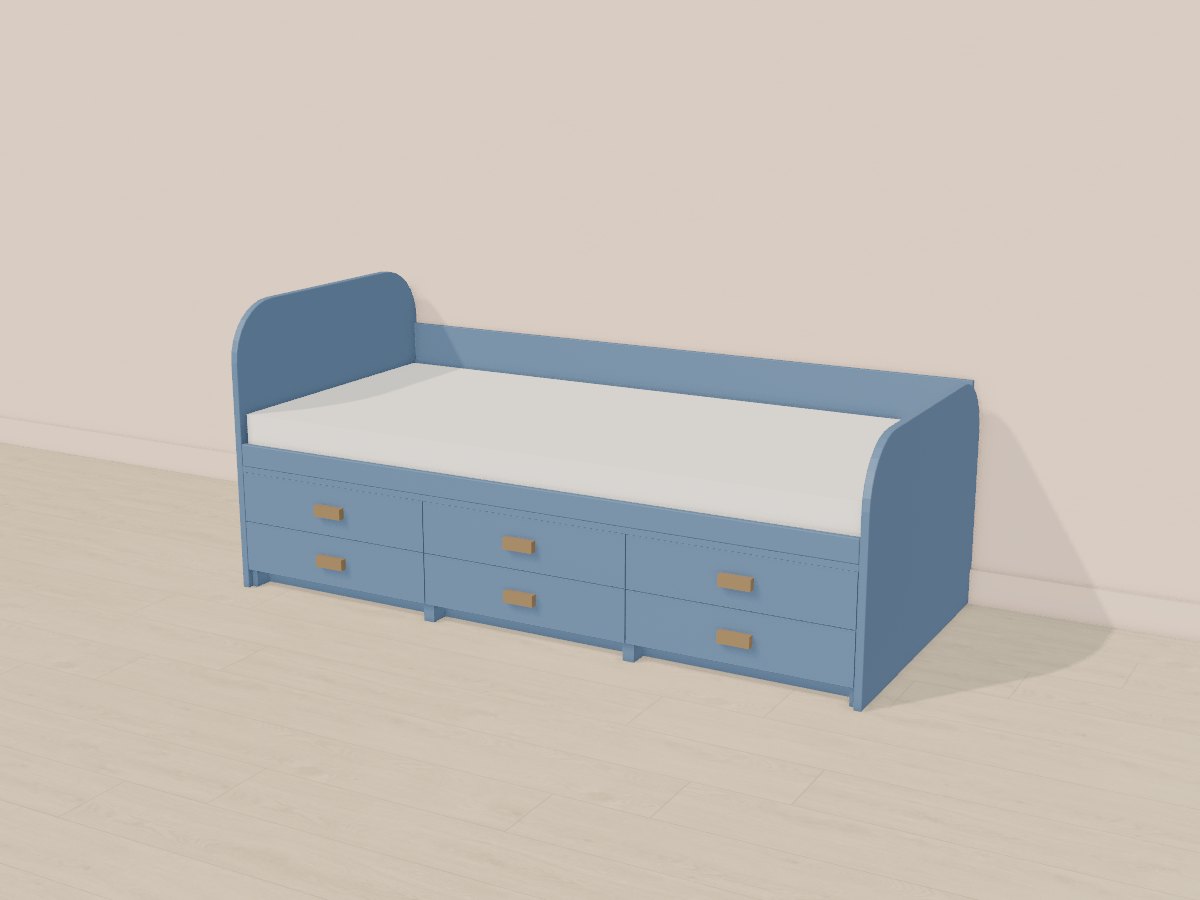

The 3D model
